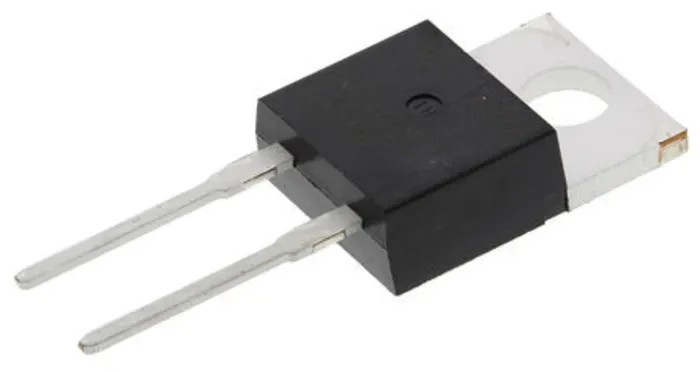

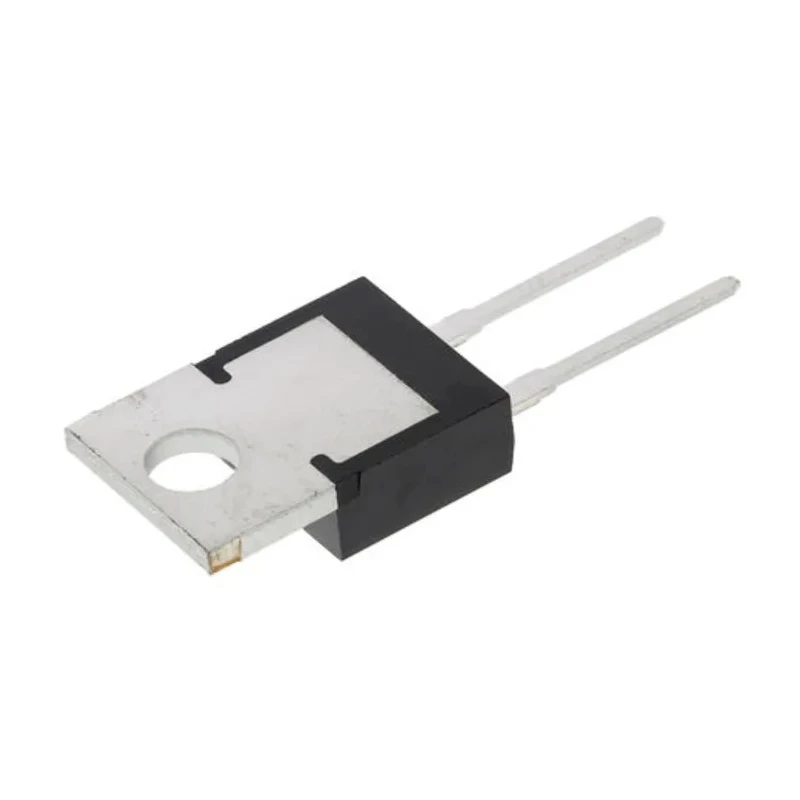

Wolfspeed 600 V 6 A Silicon Carbide Schottky Diode Single 2-Pin Through Hole TO-220 C3D06060A

Wolfspeed C3D06060A is a high-performance Silicon Carbide (SiC) Schottky diode designed for use in demanding semiconductor applications. It supports a maximum continuous forward current of 6 A and a peak reverse repetitive voltage of 600 V. Packaged in a durable TO-220 through-hole 2-pin case, this diode offers excellent thermal conductivity and high breakdown field strength, critical for high voltage and high-frequency operation.

The diode features extremely fast switching times with practically zero reverse recovery current, resulting in significantly reduced switching losses and improved overall system efficiency. Its positive temperature coefficient forward voltage protects against thermal runaway, enabling devices to be paralleled safely. The device complies with automotive standard AEC-Q101, highlighting its reliability for automotive and industrial electronics.

This Wolfspeed diode's compact form factor (15.62 mm height, 10.41 mm length, 4.7 mm width) facilitates integration into power supplies, high-speed inverters, and power factor correction circuits. It is optimized to reduce heat sink requirements, thus decreasing system size and cost. Typical applications include switched-mode power supplies, renewable energy inverters, and other power electronic systems requiring robust rectification and efficient thermal management.

Rated maximum forward current of 6 amperes ensures handling of moderate power loads. Peak non-repetitive surge current up to 200 amperes accommodates transient overloads. Maximum forward voltage of 2.4 volts reduces conduction losses.

Minimum operating temperature as low as -55°C for harsh environment tolerance. Maximum operating temperature up to 175°C supports high-temperature applications. Low peak reverse current of 200 μA ensures minimal leakage and power dissipation.

Silicon Carbide technology provides higher efficiency than standard silicon diodes. Schottky barrier construction yields zero reverse recovery current and voltage. Compliance to AEC-Q101 automotive standard assures quality and durability.

Ideal for industrial, automotive, laboratory, and power electronics uses.

The C3D06060A diode enhances power conversion efficiency and reliability in demanding applications with compact packaging and superior thermal management. Designed for professionals in electronics and industrial equipment manufacturing, it offers a robust solution for modern semiconductor needs. Explore more Wolfspeed Schottky diodes on EnvMart for optimized power device integration.
