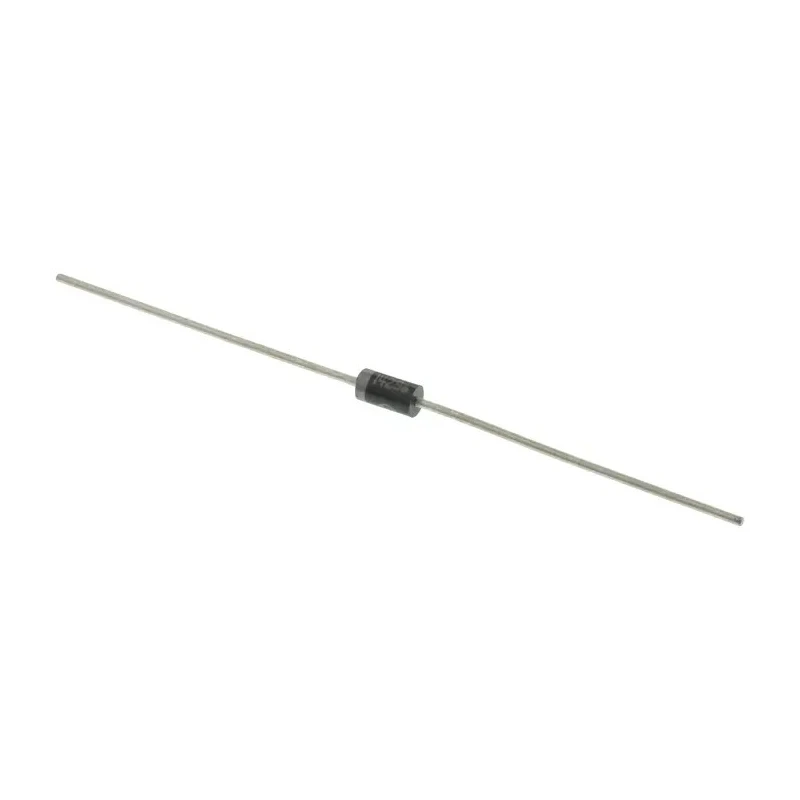

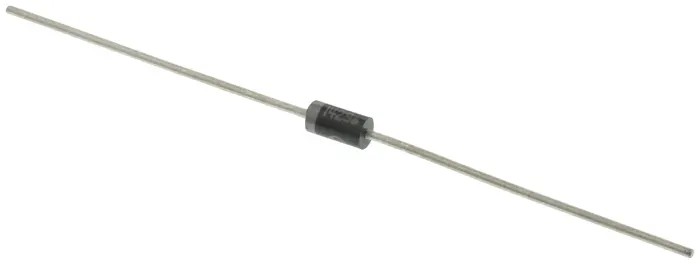

onsemi 40 V 1 A Schottky Diode Through Hole DO-41 Package 2-Pin 1N5819G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 5.2mm |
| Length | 3.57mm |
| Model | 1N5819G |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 0.45mm |
| Mount Type | Through Hole |
| Series | 1N5819 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 1.6ns |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
Key Features
- Maximum continuous forward current of 1 Ampere ensures reliable performance.
- Peak reverse repetitive voltage rating of 40 Volts supports stable blocking capability.
- Extremely low forward voltage drops contribute to increased efficiency.
- Compact DO-41 epoxy molded package with corrosion-resistant external surfaces.
- Operating temperature range from -65°C to 125°C supports harsh environments.
- Cathode clearly identified by polarity band for easy installation.
- Typical applications include polarity protection, free wheeling diodes, and high-frequency inverters.
Product Description
onsemi 1N5819G Schottky Diode is a metal-to-silicon power diode featuring a 40 V peak reverse repetitive voltage and 1 A maximum continuous forward current. This diode uses a DO-41 epoxy molded package with 2 pins, designed for through hole mounting. It offers low forward voltage and fast switching with a peak reverse recovery time of 1.6 ns. Operating temperature ranges from -65°C to 125°C support industrial and commercial applications.
The 1N5819G diode has a compact form factor with dimensions 3.57 mm length, 5.2 mm height, 2.7 mm diameter, and 0.45 mm width, sealed inside a corrosion-resistant epoxy case. The cathode is clearly marked with a polarity band, facilitating correct installation and circuit design.
Key features include extremely low forward voltage, minimal stored charge, and high efficiency through low power loss. It is suitable for use in high-frequency inverters, polarity protection circuits, and free wheeling diode applications. The diode's lead terminals are readily solderable, with a maximum soldering temperature of 260°C for up to 10 seconds.
onsemi ensures quality with no automotive standards applied and no external certifications. Weight is approximately 0.4 grams. This product is suitable for industrial electronics, power supply design, and semiconductor device projects requiring reliable Schottky diode performance.
Maximum continuous forward current of 1 Ampere ensures reliable performance. Peak reverse repetitive voltage rating of 40 Volts supports stable blocking capability. Extremely low forward voltage drops contribute to increased efficiency.
Compact DO-41 epoxy molded package with corrosion-resistant external surfaces. Operating temperature range from -65°C to 125°C supports harsh environments. Cathode clearly identified by polarity band for easy installation.
Typical applications include polarity protection, free wheeling diodes, and high-frequency inverters. Lead temperature for soldering purposes: maximum 260°C for 10 seconds. Explore more Schottky Diodes & Rectifiers at EnvMart for industrial, laboratory, and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1 Ampere.
The peak reverse repetitive voltage rating is 40 Volts, which supports stable blocking capability.
This model operates within a temperature range of -65°C to 125°C, making it suitable for harsh environments.
The diode has a length of 3.57 mm, a height of 5.2 mm, a diameter of 2.7 mm, and a width of 0.45 mm.
It uses a DO-41 epoxy molded package designed for through hole mounting.
The maximum forward voltage drop is 900 mV.
The cathode is clearly identified by a polarity band, which facilitates easy installation.
The peak reverse recovery time is 1.6 ns, which contributes to its fast switching capabilities.
The weight of this diode is approximately 0.4 grams.
The maximum lead temperature for soldering purposes is 260°C for up to 10 seconds.
Typical applications include polarity protection, free wheeling diodes, and high-frequency inverters.
It is a Schottky rectifier, known for its low forward voltage drop and high efficiency.
