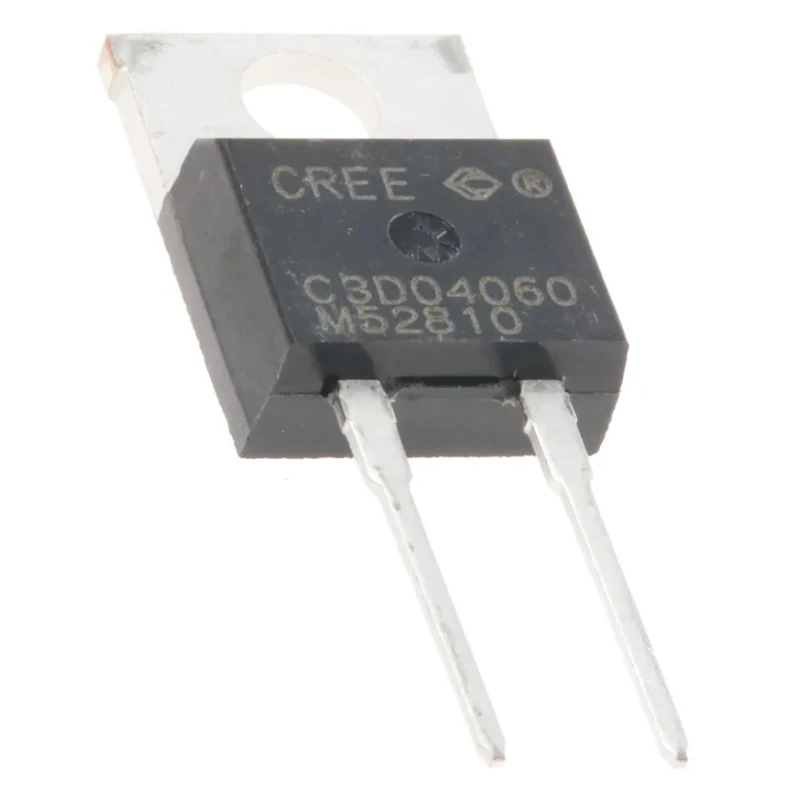

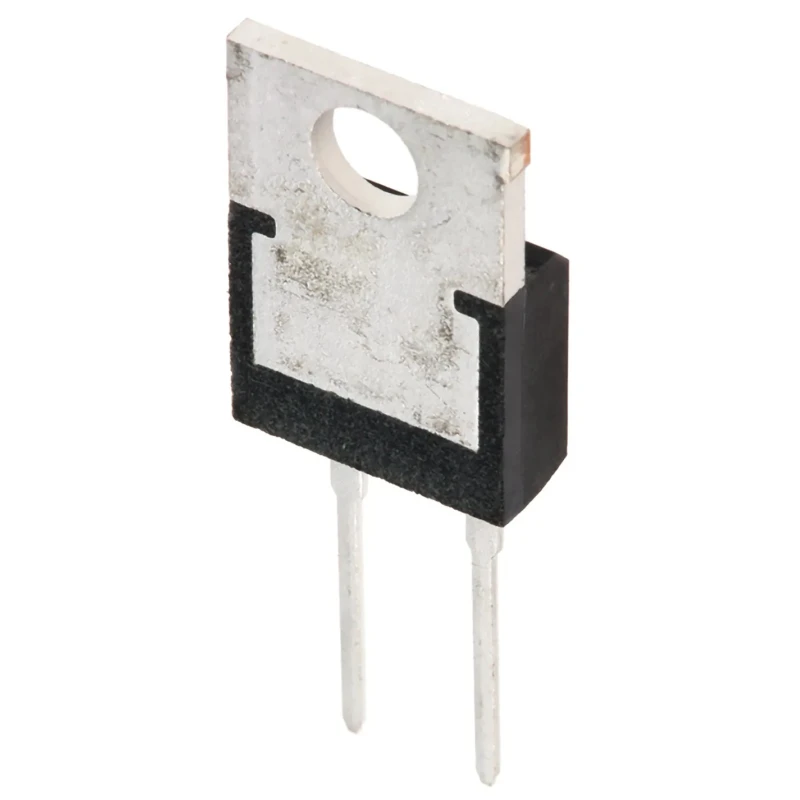

Wolfspeed 600 V 4 A Z-Rec Silicon Carbide Schottky Diode Single 2-Pin Through Hole TO-220 C3D04060A

Wolfspeed C3D04060A is a high-performance 600 V 4 A Z-Rec Silicon Carbide (SiC) Schottky diode packaged in a TO-220 through hole form factor. It is engineered for demanding semiconductor applications requiring low power loss and fast switching speeds.

The diode's SiC technology provides a significant enhancement over traditional silicon diodes by offering higher breakdown voltage, superior thermal conductivity, and reduced power loss during high-frequency switching operations. This makes it ideal for use in switch-mode power supplies, industrial inverters, and other power electronics applications where efficiency and reliability are critical.

Key electrical characteristics include a maximum continuous forward current of 4 A, peak reverse repetitive voltage of 600 V, and a maximum forward voltage of 2.4 V. The diode can operate over a wide temperature range from -55°C to 175°C and withstand surge currents up to 110 A. It features a single diode configuration with two pins, facilitating through hole mounting in TO-220 packaging.

The device is automotive grade, complying with AEC-Q101 standards, ensuring durability in harsh environments. Its positive temperature coefficient forward voltage and temperature-independent switching behavior allow paralleling devices without thermal runaway, reducing cooling and heatsink requirements.

Maximum continuous forward current of 4 A ensures suitability for medium power applications. High peak reverse voltage of 600 V allows for robust voltage tolerance. Single diode configuration simplifies circuit design and integration.

Through hole TO-220 package facilitates thermal management and mounting. Automotive standard AEC-Q101 qualification guarantees reliable performance. Highly efficient switching reduces power loss making it ideal for energy-sensitive designs.

Wide operating temperature range enables use in harsh industrial environments. Peak non-repetitive forward surge current rated at 110 A for transient load handling.

Wolfspeed designs these SiC Schottky diodes for industrial, automotive, manufacturing, power supply, and renewable energy applications where high efficiency and thermal performance are essential. The device's robustness and fast switching capability make it suitable for high-frequency power conversion circuits and inverter systems.
