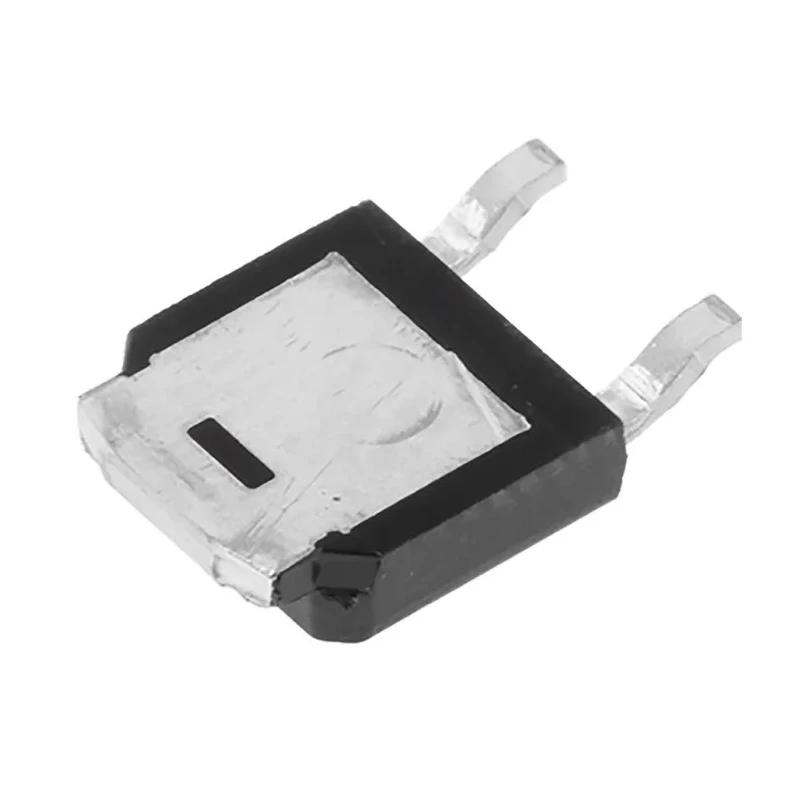

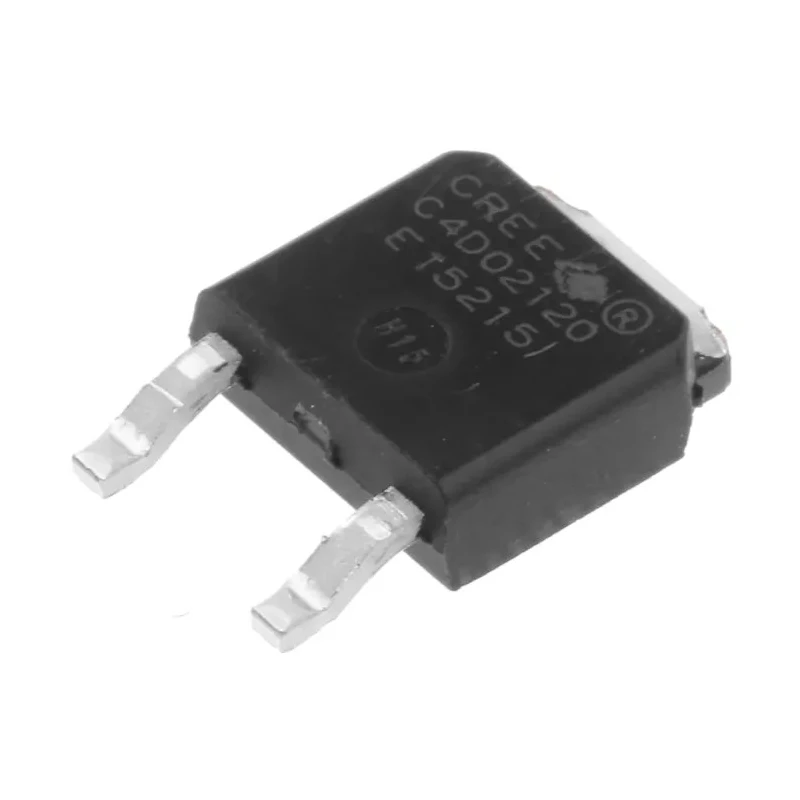

Wolfspeed 1200 V 4.5 A Schottky Diode 3-Pin DPAK Surface Mount TO-252 Package C4D02120E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wolfspeed |
| Height | 2.39mm |
| Length | 7.34mm |
| Model | C4D02120E |
| Width | 6.25mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 4.5A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 18.8A |
| Maximum Forward Voltage Vf | 3V |
Key Features
- Surface mount device with TO-252 package ensures easy PCB integration.
- Single diode configuration optimized for minimal forward voltage drop.
- Maximum forward voltage of 3 V for efficient conduction.
- Wide operating temperature range from -55°C to 175°C supports harsh environments.
- Low peak reverse current of 150 µA enhances circuit reliability.
- High peak non-repetitive forward surge current capability of 18.8 A.
- Silicon Carbide technology reduces power losses at high switching frequencies.
- Ideal for switch-mode power supplies and high-speed inverters requiring high voltage.
Product Description
Wolfspeed C4D02120E is a Silicon Carbide (SiC) Schottky diode with a high peak reverse repetitive voltage of 1200 V and a maximum continuous forward current rating of 4.5 A. Designed using Wolfspeed’s advanced Z-Rec™ technology, this diode demonstrates markedly improved performance over standard Schottky diodes. It is housed in a surface mount TO-252 3-pin DPAK package, making it suitable for automated assembly in electronic power modules.
The device offers very low forward voltage drop up to 3 V and exceptional thermal conductivity, which dramatically reduces conduction losses and increases overall power efficiency. It features zero reverse recovery current and temperature-independent switching behavior ensuring superior switching performance, making it highly suitable for high-frequency power conversion applications such as switch-mode power supplies, PFC boost circuits, and motor drives.
Operating reliably in extreme thermal conditions ranging from -55°C to 175°C, this diode supports demanding industrial and commercial electronics environments. Its compact physical size (7.34 mm length, 6.25 mm width, 2.39 mm height) enables dense PCB layout designs. The low peak reverse current of 150 µA and peak surge current capacity of 18.8 A further enhance device ruggedness.
Manufactured with Wolfspeed Z-Rec Silicon Carbide Technology for enhanced efficiency. Suitable for industrial, laboratory, and commercial power electronics applications. Reduces heatsink requirements due to improved thermal management.
Optimized switching reduces power loss and increases system lifetime. A vital component in design of automotive and consumer electronics power supplies. Allows parallel operation without thermal runaway risk. Complies with all relevant Wolfspeed quality and reliability standards.
Explore more Wolfspeed Schottky Diodes & Rectifiers at EnvMart for diverse, high-reliability power management solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this Schottky diode is 1200 V.
The maximum continuous forward current for this model is 4.5 A.
It is housed in a TO-252 package, which is a surface mount type.
The operating temperature range for this diode is from -55°C to 175°C.
The maximum forward voltage drop of this diode is 3 V.
The peak reverse current for this model is rated at 150 µA.
The peak non-repetitive forward surge current capability is 18.8 A.
This model has a single diode configuration.
It is manufactured using Wolfspeed's advanced Z-Rec™ Silicon Carbide technology.
This diode is suitable for applications such as switch-mode power supplies, PFC boost circuits, and motor drives.
The dimensions of this diode are 7.34 mm in length, 6.25 mm in width, and 2.39 mm in height.
Yes, it operates reliably in extreme thermal conditions ranging from -55°C to 175°C, making it suitable for harsh environments.
