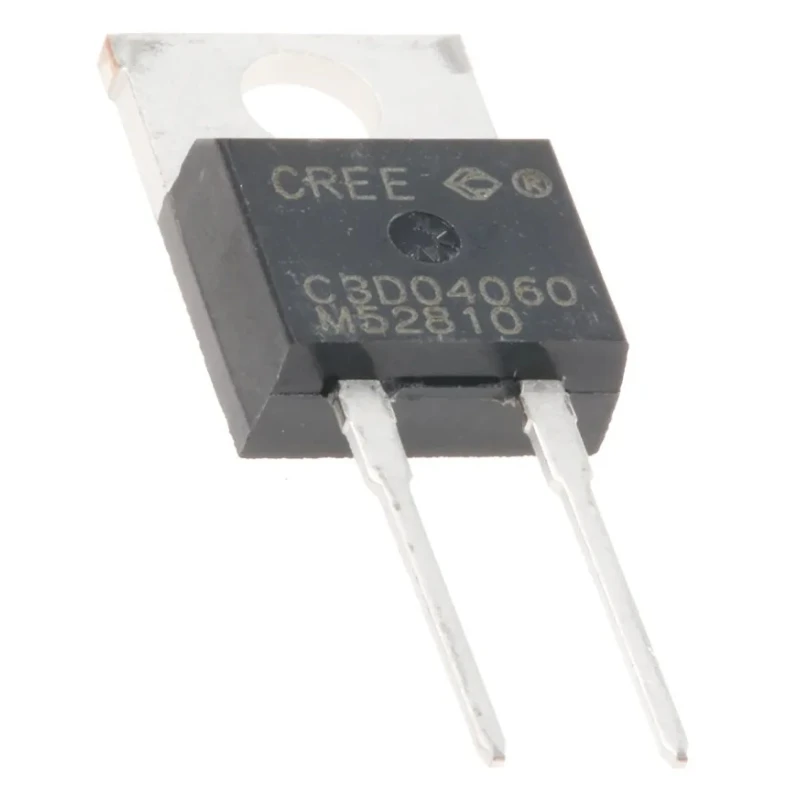

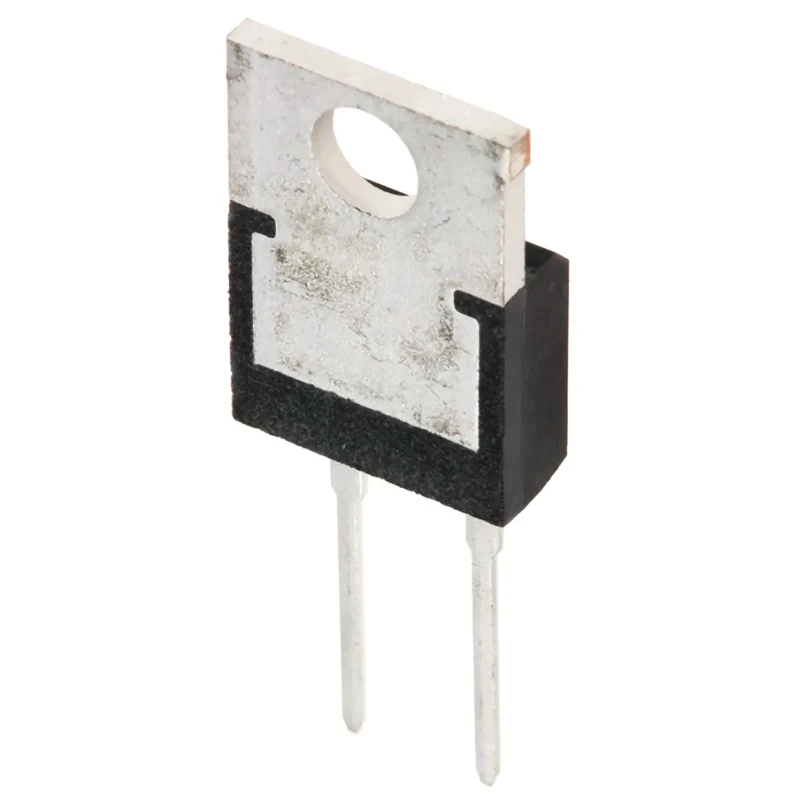

Wolfspeed 600 V 4 A Z-Rec Silicon Carbide Schottky Diode Single 2-Pin TO-220 C3D04060A

Wolfspeed C3D04060A is a Silicon Carbide (SiC) Schottky diode designed for high voltage and high efficiency power applications. This Z-Rec series diode in a 2-pin TO-220 package provides 600 V peak reverse repetitive voltage and supports a continuous forward current of 4 A. It offers excellent thermal conductivity and higher breakdown field strength compared to standard Si diodes.

This diode features a maximum forward voltage of 2.4 V and minimal peak reverse current of 100 μA, ensuring low power loss and increased efficiency in switching power supplies and high-speed inverter circuits.

With a wide operating temperature range from -55°C to 175°C, the C3D04060A is suitable for demanding industrial, automotive, and power electronics environments. The device's zero reverse recovery current and positive temperature coefficient enable reliable paralleling without thermal runaway.

Physical dimensions include 15.62 mm height, 10.41 mm length, and 4.7 mm width. The device holds an automotive AEC-Q101 qualification, demonstrating its robustness and reliability for automotive systems.

This SiC Schottky diode reduces requirements for heatsinking due to optimized design and supports power factor correction (PFC) boost diode applications efficiently. It is made in China under Wolfspeed's quality standards.

The diode is ideal for use in industrial electronic circuits, power supplies, manufacturing equipment, and high-efficiency switch-mode power supplies. It enables improved thermal management and reduced power loss during high-frequency switching.

Robust electrical characteristics make it suitable for demanding commercial and automotive uses. Explore more Wolfspeed Schottky diodes and rectifiers for advanced semiconductor solutions at EnvMart.
