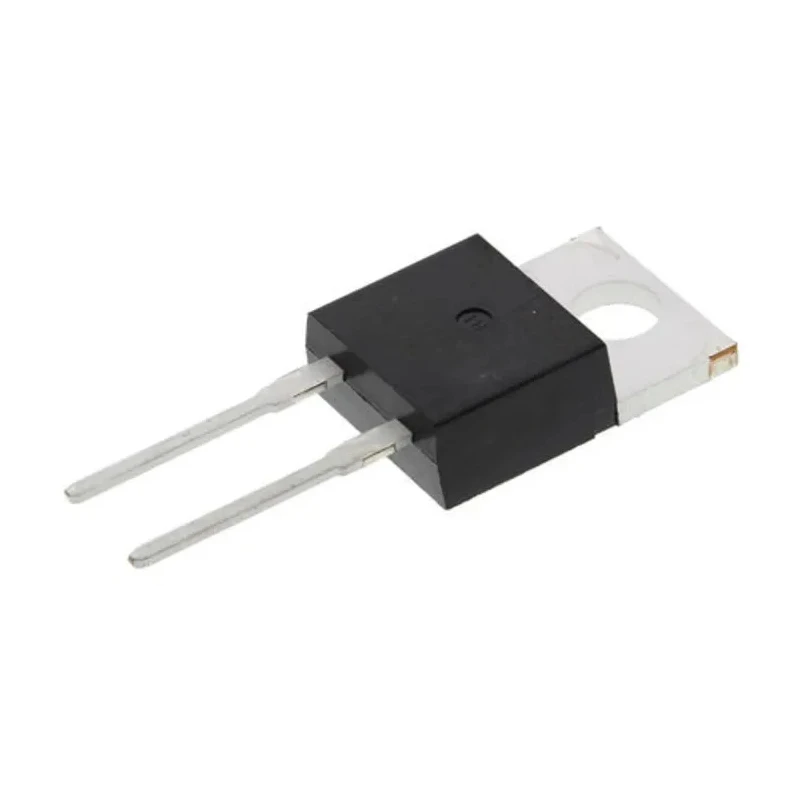

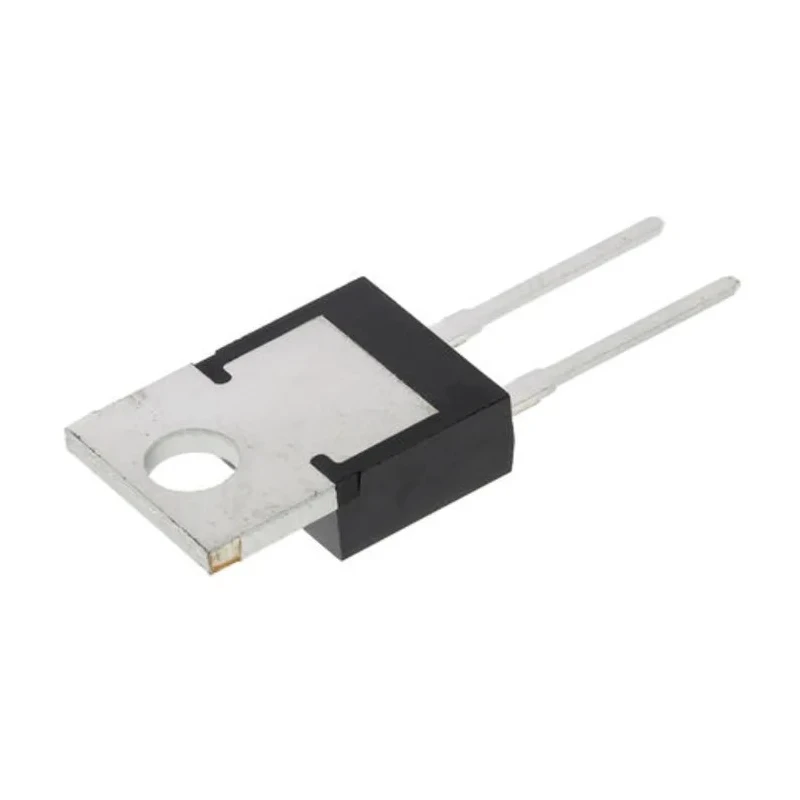

Wolfspeed 600 V 6 A Silicon Carbide Z-Rec Schottky Diode Single Configuration 2-Pin TO-220 C3D06060A

Wolfspeed C3D06060A is a high-performance 600 V 6 A Silicon Carbide Z-Rec Schottky diode with a single diode configuration in a 2-pin TO-220 package. Utilizing Wolfspeed's advanced Silicon Carbide technology, this diode delivers superior breakdown field strength and enhanced thermal conductivity, resulting in significantly reduced power losses at elevated switching frequencies.

Designed primarily for applications requiring high efficiency and high voltage, these devices excel in demanding industrial environments such as switch-mode power supplies, high-speed inverters, and power factor correction (PFC) boost diode use cases. The diode maintains temperature-independent switching behavior and zero reverse recovery current, enabling extremely fast switching times with minimal losses.

Wolfspeed C3D06060A supports a maximum continuous forward current of 6 A and withstands peak reverse repetitive voltages up to 600 V, making it suitable for robust and reliable semiconductor power circuits. Its peak non-repetitive forward surge current can reach 200 A. The maximum forward voltage drop is 2.4 V, helping optimize energy efficiency and thermal management by reducing heat generation.

The TO-220 through-hole package offers ease of mounting and effective heat dissipation, with compact dimensions of 15.62 mm height, 10.41 mm length, and 4.7 mm width, facilitating integration into existing board layouts and device housings. The diode operates reliably across a wide temperature range from -55°C to 175°C, compliant with the automotive-standard AEC-Q101, underscoring its suitability for automotive and industrial-grade applications.

This Schottky diode provides a high breakdown voltage and low forward voltage drop. Enables reduction in heatsink requirements and thermal runaway risks when used in parallel configurations. Optimized for power electronics requiring efficient energy conversion and thermal management.

RoHS compliant and manufactured to Wolfspeed's rigorous quality standards.

Choose Wolfspeed C3D06060A for applications demanding reliable, high-efficiency semiconductor switching components in industrial, automotive, and manufacturing settings. Explore related Wolfspeed diodes and semiconductor products on EnvMart for comprehensive power electronics solutions.
