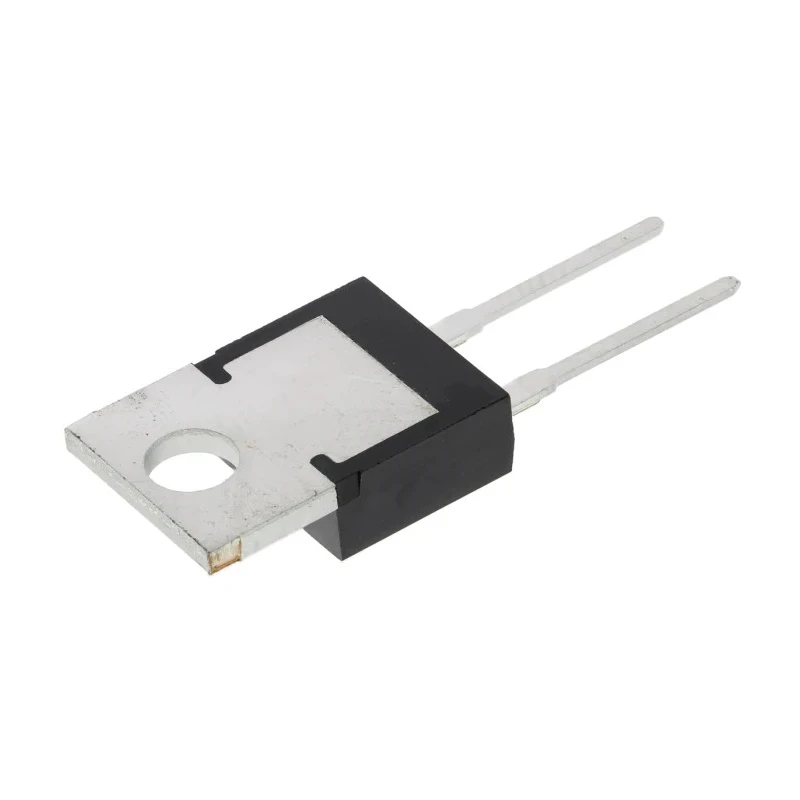

Wolfspeed 1200 V 10 A Schottky Diode Through Hole 2-Pin TO-220 C4D02120A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wolfspeed |
| Height | 15.62mm |
| Length | 10.41mm |
| Model | C4D02120A |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 19A |
| Maximum Forward Voltage Vf | 3V |
| IXYS 1200 V 10 A Diode Switching 2-Pin TO-220AC DHG10I1200PABrand | IXYS |
Key Features
- Provides maximum continuous forward current of 10 A.
- Features a peak reverse repetitive voltage of 1200 V for robust operation.
- Designed with a low maximum forward voltage of 3 V for efficiency.
- Supports a wide operating temperature range from -55°C to 175°C.
- Constructed with Silicon Carbide for high thermal conductivity and breakdown strength.
- Equipped with a peak non-repetitive forward surge current rating of 19 A.
- Automotive standard compliant with AEC-Q101 ensures durability and quality.
- Ideal for high-frequency switching and power supply applications requiring low losses.
Product Description
Wolfspeed C4D02120A is a Silicon Carbide (SiC) Schottky diode in a TO-220 through-hole package, rated for 1200 V and 10 A. Its advanced SiC technology offers high breakdown field strength and excellent thermal management, resulting in efficiency improvements and reduced power loss at high switching frequencies.
This diode's design is suitable for applications in industrial power supplies, high-speed inverters, and automotive electronics where thermal reliability and performance are crucial. The device features zero reverse recovery current and a positive temperature coefficient forward voltage, which prevents thermal runaway and reduces heatsink requirements.
Operating from -55°C to 175°C, the C4D02120A is rugged and built to withstand harsh environments. Its peak non-repetitive forward surge current capability of 19 A ensures resilience against transient conditions.
The diode's compact size (4.7 mm width, 15.62 mm height, and 10.41 mm length) and 2-pin configuration make it adaptable for various circuit designs requiring through-hole mounting and reliable power rectification.
Maximum continuous forward current: 10 A. Peak reverse repetitive voltage: 1200 V. Maximum forward voltage: 3 V. Peak non-repetitive forward surge current: 19 A. Operating temperature range: -55°C to 175°C. Package type: TO-220.
Mount type: Through Hole. Automotive standard: AEC-Q101 compliance. Pin count: 2.
The Wolfspeed C4D02120A is optimized for high-performance and reliable operation in demanding semiconductor diode applications in electronics, power conversion, automotive, and industrial sectors.
Explore more products in Schottky Diodes & Rectifiers and advance your industrial and electronic projects with Wolfspeed quality components at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for the C4D02120A is 10 A.
This model has a peak reverse repetitive voltage of 1200 V.
The maximum forward voltage for this diode is 3 V.
The operating temperature range for the C4D02120A is from -55°C to 175°C.
The diode is packaged in a TO-220 configuration.
The peak non-repetitive forward surge current rating is 19 A.
This diode has a pin count of 2.
The C4D02120A complies with the AEC-Q101 automotive standard.
The dimensions are 4.7 mm in width, 15.62 mm in height, and 10.41 mm in length.
It is a Schottky diode with a single diode configuration.
The zero reverse recovery current feature enhances efficiency by reducing power loss during high-speed switching applications.
The country of origin for this diode is China.
