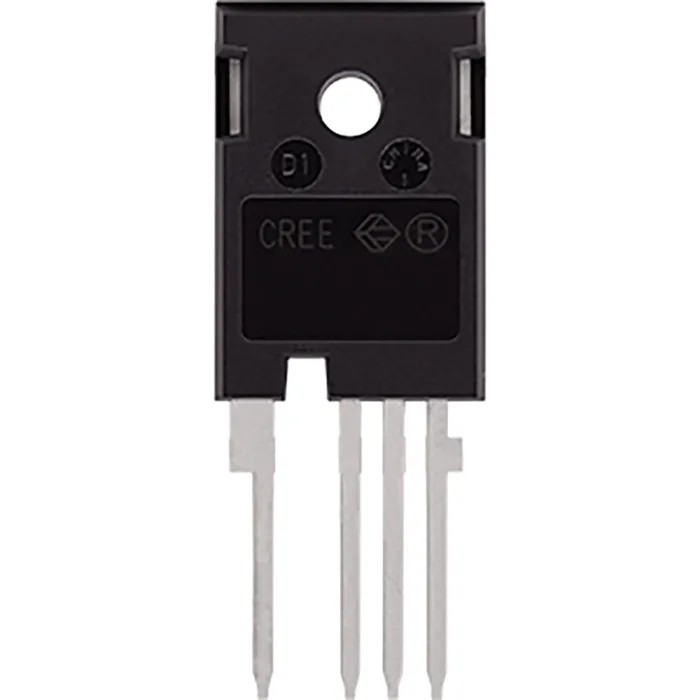

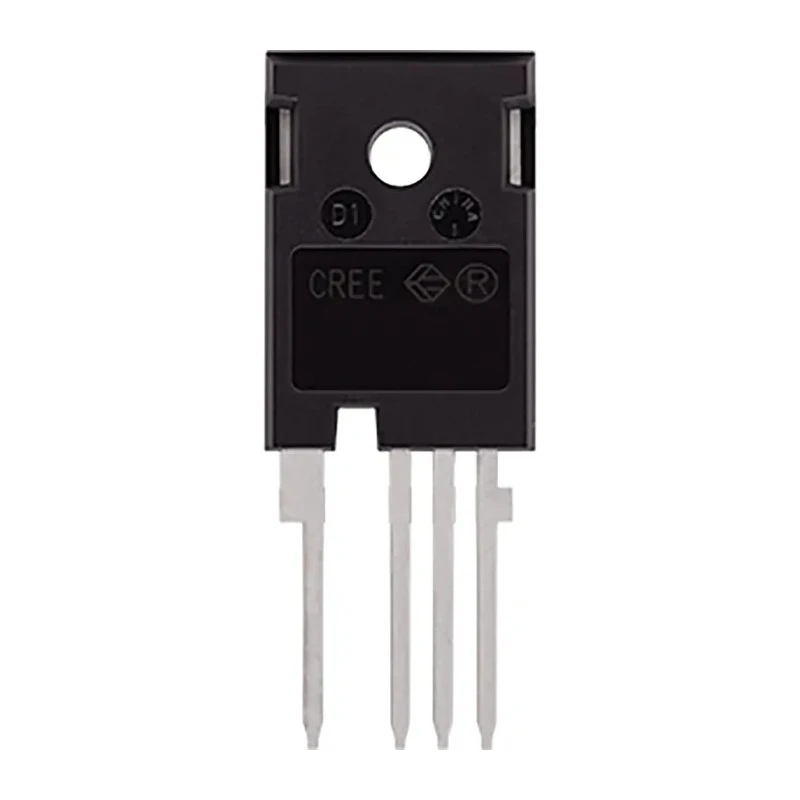

Wolfspeed N-Channel MOSFET 63 A 1.2 kV Enhancement 4-Pin TO-247 C3M0032120K

Free Delivery in India | Lowest Global Shipping Charges

Wolfspeed N-Channel MOSFET 63 A 1.2 kV Enhancement 4-Pin TO-247 C3M0032120K

Name: Wolfspeed N-Channel MOSFET 63 A 1.2 kV Enhancement 4-Pin TO-247 C3M0032120K
Brand: Wolfspeed
SKU: 159978
Price: 38.13 USD
Availability: InStock



Category MOSFET Brand Wolfspeed Condition New

Specifications

Country of Origin	India
Brand	Wolfspeed
Height	23.6mm
Length	16.13mm
Model	C3M0032120K
Width	5.21mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	TO-247
Minimum Operating Temperature	-40°C
Pin Count	4
Channel Type	N
Maximum Continuous Drain Current Id	63A
Maximum Drain Source Voltage Vds	1.2kV
Maximum Drain Source Resistance Rds	32mΩ
Channel Mode	Enhancement
Maximum Power Dissipation Pd	283W
Typical Gate Charge Qg @ Vgs	118nC
Maximum Gate Source Voltage Vgs	-8, 19V
Forward Voltage Vf	4.6V

Key Features

Operates with a maximum continuous drain current of 63 amperes.
Enhancement mode channel offers reliable switching performance.
Compact TO-247 through-hole package with 4 pins for easy mounting.
Maximum power dissipation rated at 283 watts for efficient thermal handling.
Typical gate charge of 118 nC facilitates fast switching speeds.
Operates in a wide temperature range from -40°C to 175°C.
Features a low drain-source resistance of 32 milliohms for efficient conduction.
High-speed switching enabled by low output capacitance and fast intrinsic diode.

Product Description

Wolfspeed C3M0032120K is a high-performance N-Channel MOSFET designed for demanding industrial and power electronics applications. This device operates at a maximum continuous drain current of 63 A and supports a drain-source voltage up to 1.2 kV, making it suitable for high voltage environments. The enhancement mode MOSFET is housed in a durable 4-pin TO-247 through-hole package, facilitating easy installation and reliable mechanical strength.

The MOSFET features a low Rds(on) of 32 milliohms to minimize conduction losses and a typical gate charge of 118 nC, enabling high-speed switching with low power consumption. It supports a wide operating temperature range from -40°C to 175°C, ensuring reliability under harsh environmental conditions.

This device incorporates a fast intrinsic diode with low reverse recovery charge, reducing switching losses and improving efficiency in bidirectional circuits. The package design includes a Kelvin source pin and extended creepage distance, enhancing electrical isolation and thermal management.

Typical applications include solar and energy storage systems, electric vehicle charging infrastructure, uninterruptible power supplies (UPS), motor control circuits, and switched-mode power supplies (SMPS). These applications benefit from the Wolfspeed MOSFET’s robust performance, efficient switching, and high voltage tolerance.

Operates at a maximum continuous drain current of 63 A. Supports voltage rating up to 1.2 kV (1200 V). Low drain-source on-resistance (32 milliohms) ensures efficient conduction. High maximum power dissipation of 283 watts for thermal reliability.

Wide operating temperature range from -40°C to 175°C. Fast switching enabled by low gate charge of 118 nC. Includes fast intrinsic diode with low reverse recovery for improved efficiency. 4-pin TO-247 package designed for through-hole mounting.

Applicable in Solar, EV charging, UPS, motor control, and SMPS systems. Explore more Wolfspeed MOSFETs and power semiconductor solutions designed for industrial and power management needs on EnvMart.
