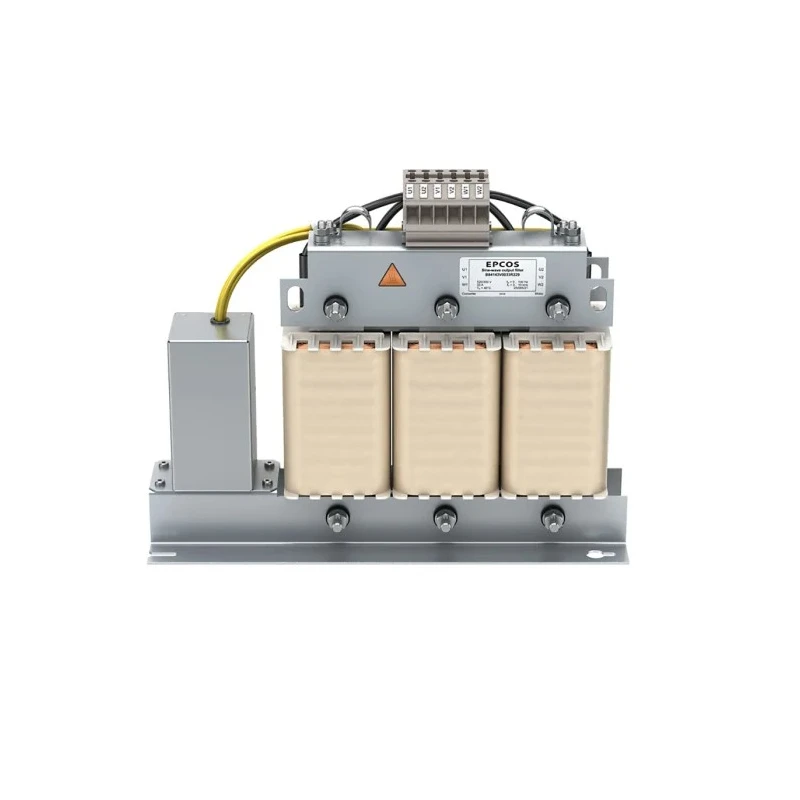

TDK Wall Mount EMC Filter 95A 520V AC 50Hz/60Hz Terminal Block 3 Phase B84143V0095R229
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 500mm |
| Length | 500mm |
| Model | B84143V0095R229 |
| Depth | 194mm |
| Mount Type | Wall Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84143V*R/S229 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 95A |
| Number of Phases | 3 |
| Maximum Voltage | 520V ac |
| Standards/Approvals | RoHS |
| Termination Style | Terminal Block |
Key Features
- Reduces motor noise and eddy current losses effectively.
- Generates sinusoidal phase-to-phase voltage with low ripple.
- Offers dv/dt reduction to protect motor drives.
- Optimized for long motor cables and operation under full load.
- Supports natural cooling for enhanced reliability.
- Easy installation with terminal block connections.
- Suitable for use in frequency converters for motor drives.
- Compatible with elevators, pumps, conveyor systems, and HVAC applications.
Product Description
TDK B84143V0095R229 Wall Mount EMC Filter is engineered to provide electromagnetic compatibility shielding for 3 phase industrial motor drives. Rated for a maximum current of 95A and a voltage of 520V AC, this filter operates efficiently at frequencies of 50Hz and 60Hz. The wall mount design ensures secure installation in electrical panels or machinery enclosures.
This EMC filter effectively reduces motor noise and eddy current losses, enhancing operational reliability. It generates sinusoidal phase-to-phase voltage with low ripple to improve motor performance and longevity. Advanced dv/dt reduction technology minimizes electrical stress on connected equipment.
Designed for long motor cables and operation under full load, the filter supports natural cooling and terminal block wiring termination for straightforward connectivity. It is essential that wiring between the inverter and filter does not exceed 10 meters to maintain optimal function.
Reduction of motor noise and eddy current losses. Generation of sinusoidal phase-to-phase voltage with low ripple. dv/dt reduction for equipment protection. Optimized for long motor cables and full load operation. Natural cooling for enhanced product durability.
Easy installation with terminal block termination. Wall mount design for robust mounting. Suitable for frequency converters in motor drives. Applicable in elevators, pumps, conveyor systems, and HVAC installations. Compliance with RoHS standards ensures environmental safety.
This product is ideal for industrial, manufacturing, HVAC, and commercial applications requiring efficient power line noise suppression and motor drive protection. Manufactured in Hungary by TDK, it features a durable form factor with dimensions 500mm x 500mm x 194mm (LxHxD).
Explore more EMC Filter options in the Electronics & Electricals category on EnvMart to meet diverse industrial power line filtering requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 95A.
It supports a maximum voltage of 520V AC.
This filter operates efficiently at frequencies of 50Hz and 60Hz.
The dimensions of this EMC filter are 500mm in length, 500mm in height, and 194mm in depth.
It features terminal block termination for straightforward connectivity during installation.
The operating temperature range is from -25°C to 85°C.
This model uses a wall mount design for secure installation.
It employs dv/dt reduction technology to minimize electrical stress on connected equipment.
Yes, it complies with RoHS standards for environmental safety.
It effectively reduces motor noise and eddy current losses while generating sinusoidal phase-to-phase voltage with low ripple.
This product is manufactured in Hungary.
