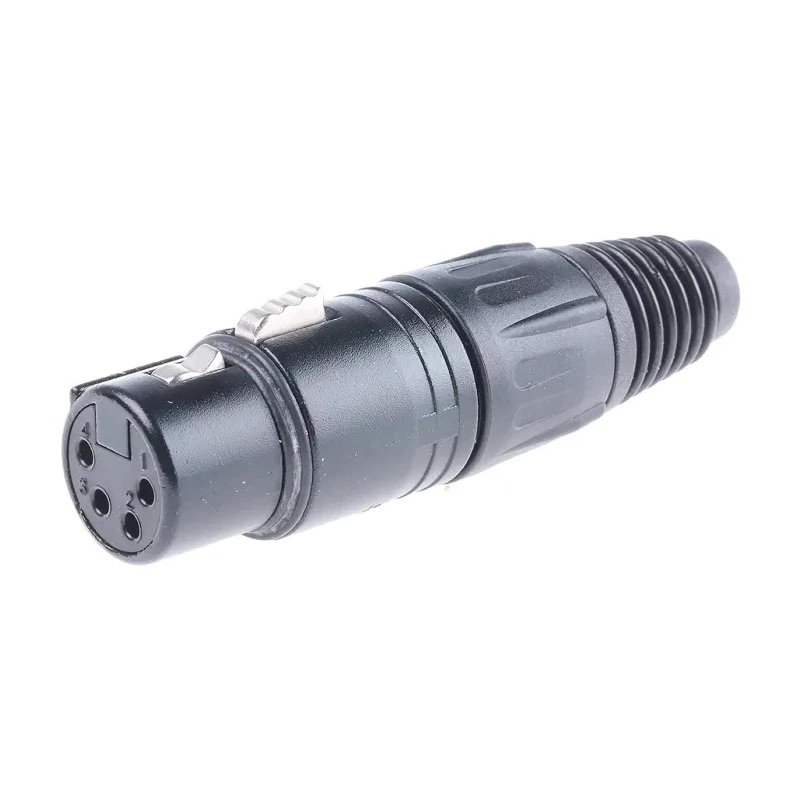

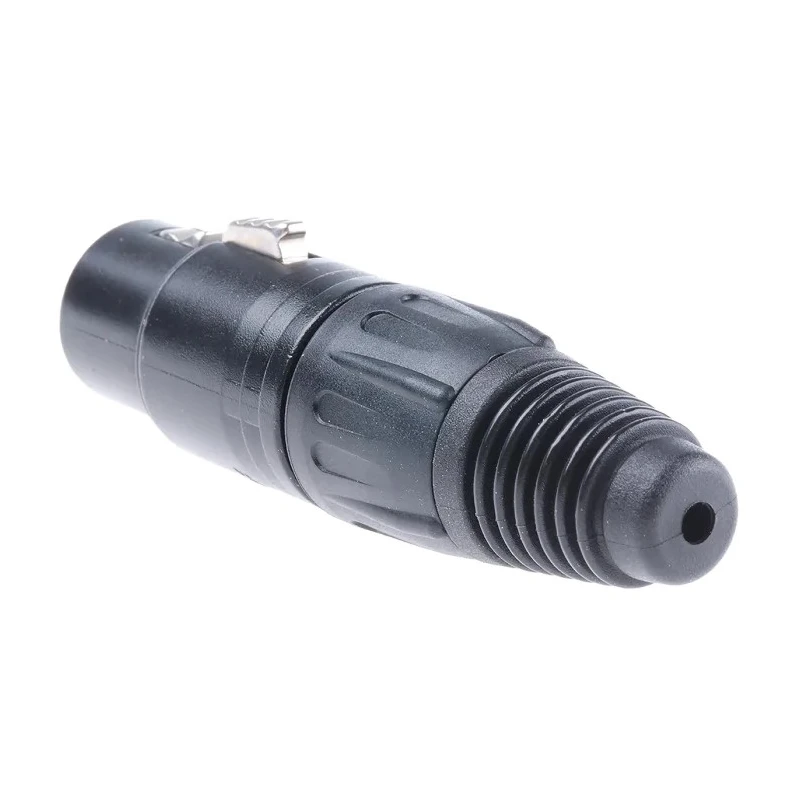

Neutrik XLR Cable Connector, Straight 50V Female 4-Way Silver over Nickel Plating NC4FXBAG
Specifications
| Country of Origin | Liechtenstein |
|---|---|
| Voltage | 50V |
| Brand | Neutrik |
| Colour | Black |
| Orientation | Straight |
| Current | 10A |
| Model | NC4FXBAG |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Brass |
| Series | NC4FX |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | 30°C |
| Contact Plating | Silver over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| • Operating Temperature | -30°C → +80°C |
| For type MP see Stock number | 543-591 and for type FP1 Stock number: 543-579 |
| • Connector bodies | Diecast zinc/aluminium |
| • Insulator | Polyester/Nylon |
| • Contacts | Copper alloy |
| • Plating | Hard silver |
| • Insertion force | ≤ 20 N |
| • Withdrawal force | ≤ 10 N |
| • Current per contact | 3-way 16A, 4-way 10A, 5- & 6-way 7.5 A , 7-way 6 A |
| • Test voltage | 1500 V a.c |
| • Contact resistance | ≤ 3 mΩ |
| • Insulation resistance | ≥ 109Ω |
| XCON BLACK 4-11CBrand | NEUTRAL |
Key Features
- The connector features 4 contacts and is designed for cable mount applications.
- It offers a maximum current of 10A per contact with reliable solder termination.
- The housing is made of diecast zinc and aluminium alloy with polyester/nylon insulating material.
- The contacts are fabricated from copper alloy with hard silver plating for optimal conductivity.
- Operating temperature ranges between -30°C and +80°C ensuring durability in varied environments.
- The insertion and withdrawal forces are limited to ≤20 N and ≤10 N respectively for secure connection.
- Designed primarily for audio and low-level signal circuitry, it is not suitable for mains power connections.
- Dual use terminals allow crimping or soldering as per connectivity needs.
Product Description
Neutrik NC4FXBAG is a 4-way straight XLR cable connector with female gender and a rated voltage of 50V. It exhibits excellent build quality using diecast zinc/aluminium for the body and brass contacts plated with hard silver over nickel, ensuring reliable, low-noise connections for audio and power signals.

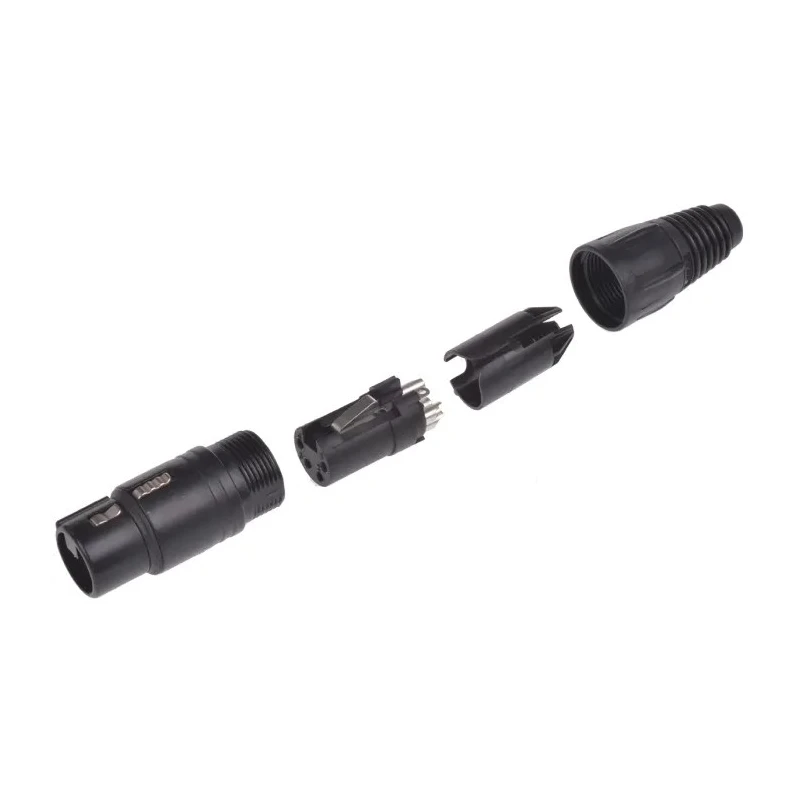

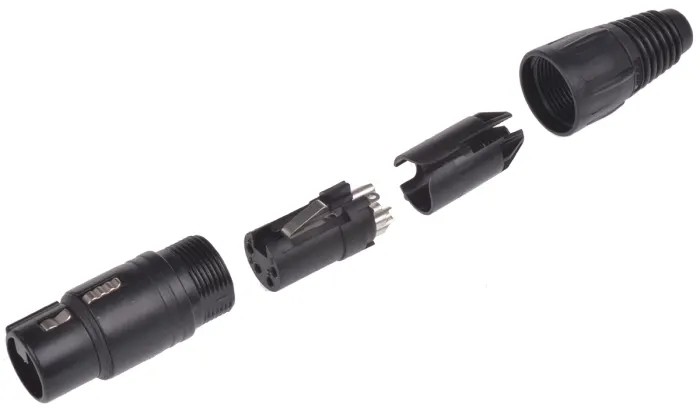

The connector assembly utilizes minimal parts with no screws required, simplifying installation, while self-adjusting strain relief accommodates cable diameters from 3 to 8 mm. The product delivers 10A current per contact and has excellent electrical properties with a test voltage of 1500 V a.c., contact resistance ≤ 3 mΩ, and insulation resistance ≥ 10⁹ Ω.
Operating within a temperature range of -30°C to +80°C, the connector is suitable for industrial, commercial, and professional audio applications. It features dual-purpose terminals supporting both soldering and crimping for versatile connectivity.
Identification boots and collars are supplied separately in multiple colors for easy wiring management. The product is made in Liechtenstein and conforms to Neutrik's high standards for X series connectors.
The connector body is constructed of durable diecast zinc and aluminium alloy. Insulation is provided by a robust polyester/nylon compound. Contacts are precision copper alloy plated with hard silver for corrosion resistance.
Suitable for cable diameters 3 to 8 mm with strain relief feature. Insertion force is ≤ 20 N and withdrawal force is ≤ 10 N for secure connections. The maximum current rating is 10A per contact. This connector is not intended for mains power supply use.
Dual use terminals allow solder or crimp termination. Neutrik XLR Connectors are widely used in professional audio, electronic instruments, and broadcasting applications, offering reliable and noise-free connections. Explore more from the Neutrik range at EnvMart for premium quality connectors designed for demanding electrical and audio system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 10A per contact.
This connector operates within a temperature range of -30°C to +80°C.
The housing is made of diecast zinc and aluminium alloy, while the contacts are fabricated from copper alloy with hard silver plating.
It supports solder termination, and also features dual-purpose terminals that allow for crimping.
This model has 4 contacts.
The insertion force is limited to ≤ 20 N, while the withdrawal force is ≤ 10 N.
The test voltage for this connector is 1500 V a.c.
No, this connector is not suitable for mains power connections; it is designed primarily for audio and low-level signal circuitry.
The insulation resistance is ≥ 10⁹ Ω.
This connector is manufactured in Liechtenstein.
It can accommodate cable diameters ranging from 3 to 8 mm.
