Keithley 2400 Series Source Meter, 200 mV to 100 V, 10 A Pulsed Output, 7 A DC Output, 1000W Output 2461
Specifications
| Country of Origin | China |
|---|---|
| Brand | Keithley |
| Model | 2461 |
| Output Power | 1000W |
| Series | 2400 |
| Interfaces | USB 2 |
| Number Of Channels | 1 |
| Resistance Measurement Range | 2 Ω to 200 MΩ |
| Standards/Approvals | CE, UL |
| Source Meter Function | Resistance, Measure Current, Measure Voltage |
| Source Voltage Range | 200 mV to 100 V |
| Source Current Range | 10 (Pulsed Output) A, 7 (DC Output) A |
Key Features
- Combines 10 A pulsed and 7 A DC current outputs with 1000 W maximum output power.
- Features a high-resolution 6½-digit measurement with 0.012% DC voltage accuracy.
- Equipped with a 5-inch capacitive touchscreen for intuitive graphical user interface.

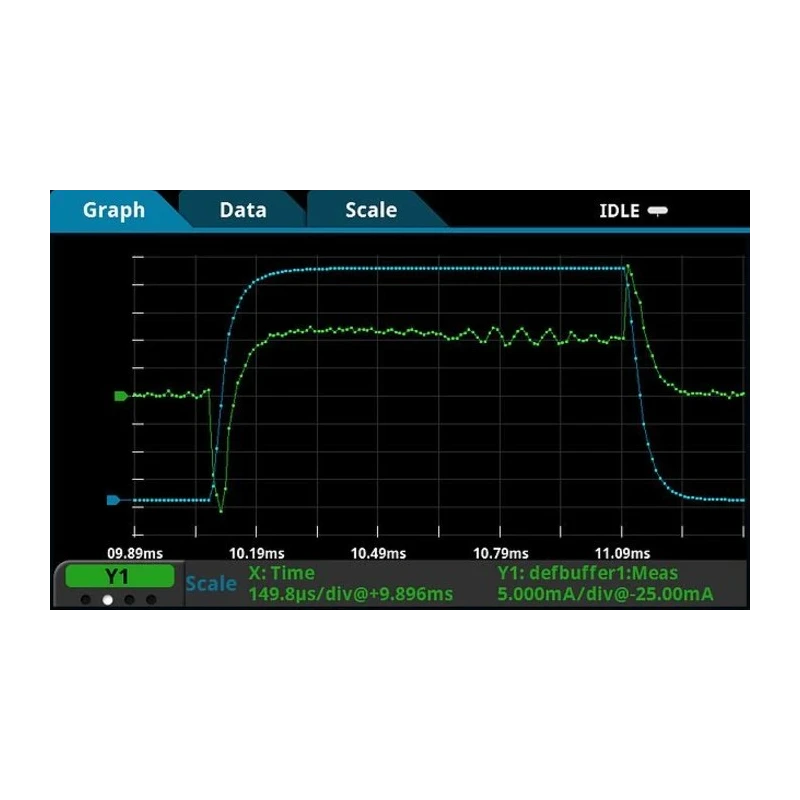

- Offers dual 18-bit 1 MS/s digitizers for fast and precise measurements.
- Programmable for multiple testing modes including resistance, current, and voltage measurement.
- Includes four SCPI emulation modes for easy migration from older Keithley models.
- Supports source and sink (4-quadrant) operation for diverse test requirements.
- USB 2.0 interface enables easy data transfer and script management.
Product Description

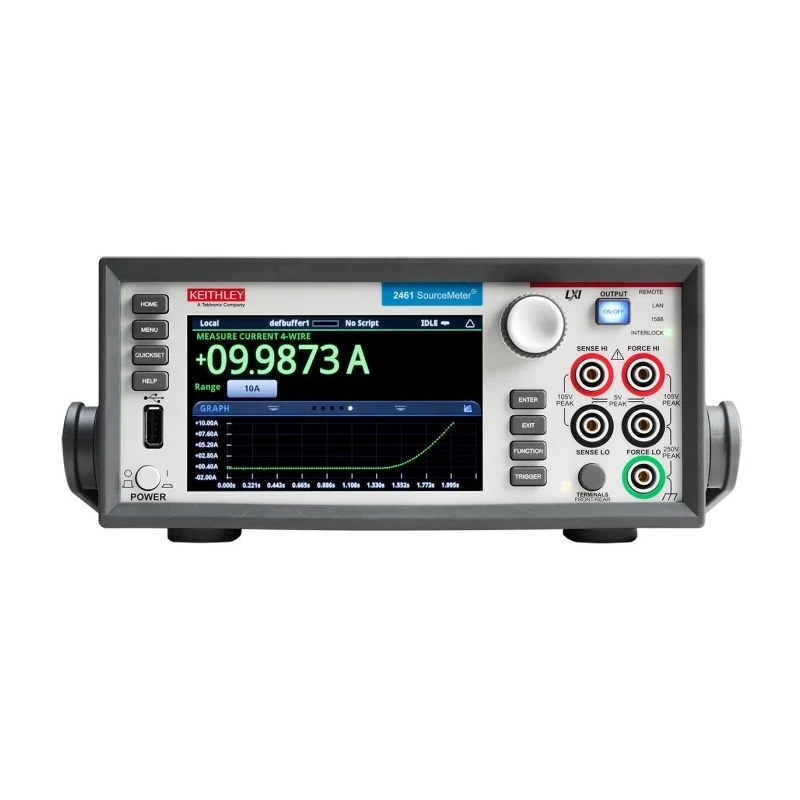

Keithley 2461 Source Meter is a high-performance graphical Source Measure Unit (SMU) offering a source voltage range of 200 mV to 100 V, pulsed current up to 10 A, and DC current up to 7 A with a peak output power of 1000 W. Equipped with advanced touch and Test Invent technology, the 2461 combines intuitive controls with high accuracy and precision measurement.
The instrument features dual 18-bit digitizers capable of 1 MS/s sample rates, enabling fast and accurate characterization of high-power materials and devices such as silicon carbide (SiC), gallium nitride (GaN), power converters, circuit protection devices, solar panels, high-brightness LEDs, electrochemical cells, and batteries.
The 2461 offers source and sink (4-quadrant) operation along with SCPI and Test Script Processor programming modes, providing versatile application programming and testing solutions. It supports four SCPI emulation modes to ease transition from earlier Keithley models 2420, 2425, 2430, and 2440, protecting user investments in software automation.
The high-resolution 6½-digit display, 0.012% DC voltage accuracy, and fast sampling speed make it suitable for research and industrial testing environments. The graphical 5-inch capacitive touchscreen interface facilitates quick setups and measurements with context-sensitive help.
Key connectivity includes front-panel banana jacks and rear panel screw mass terminals, along with a USB 2.0 memory I/O port for convenient data and script transfer. Standards compliance includes CE and UL approvals. Manufactured in China, the Keithley 2461 is ideal for lab, industrial, and manufacturing settings that demand high precision, high current, and versatile source-measure capabilities.
Combines pulsed and DC current outputs with high power output capability of 1000 W. Advanced graphical touch interface minimizing learning curve. Fast dual digitizers support 1 MS/s sampling rates. Four SCPI emulation modes for compatibility with older models.
SCPI and Test Script Processor programming modes supported. Wide source voltage and current ranges for versatile testing. Designed for testing SiC, GaN, solar cells, LEDs, and batteries. USB 2.0 connectivity for data and script management.
Explore our comprehensive range of industrial measuring and testing instruments for laboratory and manufacturing applications with Keithley products on EnvMart.
Explore more products in our Test Meter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The source voltage range of this model is from 200 mV to 100 V.
It provides a pulsed current output of up to 10 A and a DC current output of up to 7 A.
The maximum output power is 1000 W.
This unit can perform resistance measurements, current measurements, and voltage measurements.
The DC voltage accuracy is 0.012%.
The dual 18-bit digitizers can sample at a rate of 1 MS/s.
It features a USB 2.0 interface for data transfer and script management, along with front-panel banana jacks and rear panel screw mass terminals.
The specific dimensions and weight are not provided in the available data.
It complies with CE and UL standards.
This model is suitable for testing high-power materials and devices such as silicon carbide (SiC), gallium nitride (GaN), solar panels, and batteries.
Yes, it supports SCPI and Test Script Processor programming modes, including four SCPI emulation modes for compatibility with older models.
The Keithley 2461 is manufactured in China.
