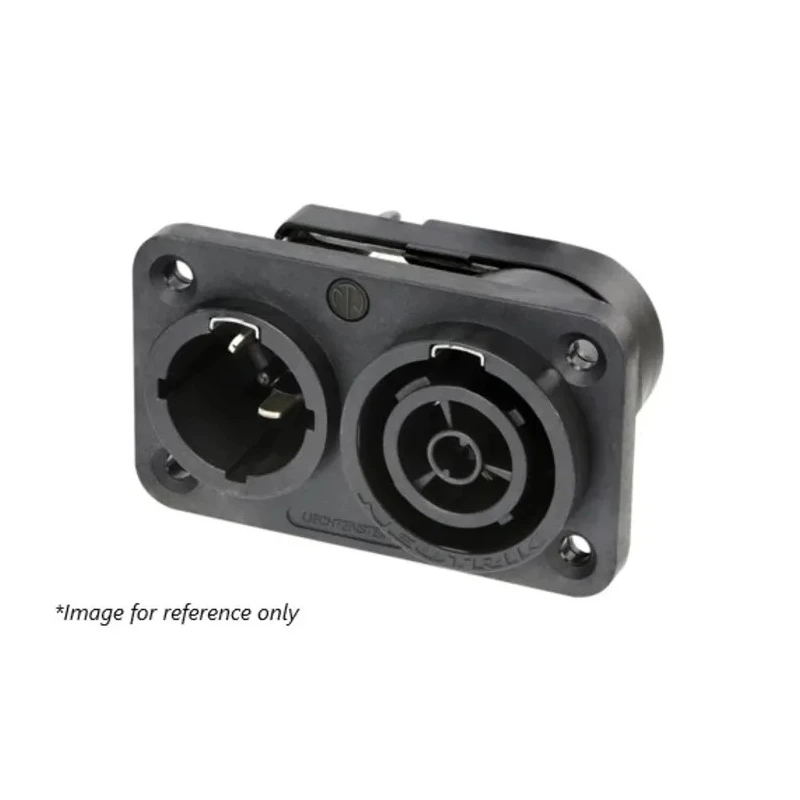

Neutrik 16A 250V Black Panel Mount Mains Socket Polyamide NAC3PX-TOP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Neutrik |
| Colour | Black |
| Orientation | Straight |
| Body Material | Polyamide |
| Current | 16A |
| Model | NAC3PX-TOP |
| Connector Type | Appliance Inlet-Outlet Connector |
| Mount Type | Panel Mount |
| Contact Material | Copper |
| Series | PowerCON |
| Pole Format | 2+PE |
| Contact Plating | Silver |
| Maximum Cable Diameter | 2.05mm |
| Contact Gender | Male/Female |
| Connector Gender | Male |
| Number of USB Ports | 0 |
Key Features
- Constructed from durable polyamide with copper contacts.
- Features a straight, panel mount design with a 2+PE pole format.
- Includes silver-plated contacts and 1/4in flat tab terminals.
- Rated for a maximum cable diameter of 2.05mm for secure connections.
- Offers IP65 rating for protection against dust and water ingress.
- Certified for outdoor use to UL 50E enclosure type 4 standards.
- Easy and reliable twist lock system for secure coupling.
- Suitable for heavy-duty power applications in harsh environments.
Product Description
Neutrik NAC3PX-TOP 16A 250V panel mount mains socket is a locking true mains chassis inlet-outlet connector engineered for outdoor and harsh environments. Manufactured from polyamide with copper contact material, this robust connector provides a reliable and safe power connection ensuring durability and performance.
The connector's straight orientation with 2+PE pole format includes silver-plated contacts and 1/4 inch flat tab terminals, designed to accommodate cables up to 2.05mm diameter. Its rugged construction replaces appliance couplers and guarantees safe operation with a breaking capacity that permits connection or disconnection under load or with live power.
This heavy-duty sealed power connector features an IP65 ingress protection rating and meets UL 50E enclosure type 4 certification for outdoor use. The twist lock system ensures an easy and reliable coupling process, critical for demanding industrial and commercial applications.
Certified by ENEC in accordance with IEC 60320 and UL498 standards, the NAC3PX-TOP mains socket is ideal for use in industrial machinery, power distribution systems, and outdoor electrical installations where safety and robustness are paramount.
Constructed from durable polyamide housing with copper and silver-plated contacts. Panel mount design with straight orientation for easy integration. Supports up to 16A current at 250 volts. IP65 rated for exceptional outdoor and harsh environment protection.
ENEC, IEC 60320, and UL498 certified for electrical safety and reliability. Breaking capacity allows safe connection and disconnection under load. Maximum cable diameter capacity of 2.05mm. Includes 1/4 inch flat tab terminals for secure attachment.
This mains socket is perfect for industrial, manufacturing, HVAC, water treatment, and commercial power applications requiring a rugged and certified panel mount connector. Browse the extensive Neutrik range for compatible products and accessories at EnvMart.
Explore more products in our Mains Plugs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 16A.
It supports a voltage of 250V.
It has an IP65 rating, providing protection against dust and water ingress.
The body is constructed from polyamide, and it features copper contacts with silver plating.
The maximum cable diameter is 2.05mm.
It is designed for panel mount installation.
It is an appliance inlet-outlet connector with a 2+PE pole format.
It includes 1/4 inch flat tab terminals for secure attachment.
Yes, it is certified for outdoor use to UL 50E enclosure type 4 standards.
It is ideal for industrial machinery, power distribution systems, and outdoor electrical installations.
It is certified by ENEC in accordance with IEC 60320 and UL498 standards.
The NAC3PX-TOP features a straight orientation design.
