Neutrik 20A 250V Panel Mount Male Mains Plug Nylon Body Crimp Termination NAC3MPXXA

Free Delivery in India | Lowest Global Shipping Charges

Neutrik 20A 250V Panel Mount Male Mains Plug Nylon Body Crimp Termination NAC3MPXXA

Name: Neutrik 20A 250V Panel Mount Male Mains Plug Nylon Body Crimp Termination NAC3MPXXA
Brand: Neutrik
SKU: 179282
Price: 6.09 USD
Availability: InStock



Category Mains Plugs Brand Neutrik Condition New

Specifications

Country of Origin	Liechtenstein
Voltage	250V
Brand	Neutrik
Colour	Blue, Black
Orientation	Straight
Body Material	Nylon
Current	20A
Model	NAC3MPXXA
Connector Type	Appliance Inlet Connector
Mount Type	Panel Mount
Contact Material	Copper Alloy
Series	PowerCON
Termination Type	Crimp
Pole Format	3
Contact Plating	Silver
Maximum Cable Diameter	2.05mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Contact Gender	Male
Connector Gender	Male
Number of USB Ports	0
Neutrik, 20A, 250V Mains Plug Black, Grey, Panel Mount Nylon, CrimpBrand	Neutrik

Key Features

Designed for panel mount installation with a straight orientation.
Colour coded blue and black for easy identification.
Constructed with robust nylon material ensuring mechanical strength.
Utilizes crimp type termination for secure wire connection.
3-pole format male connector with silver-plated copper alloy contacts.
Maximum cable diameter supported is 2.05 mm.

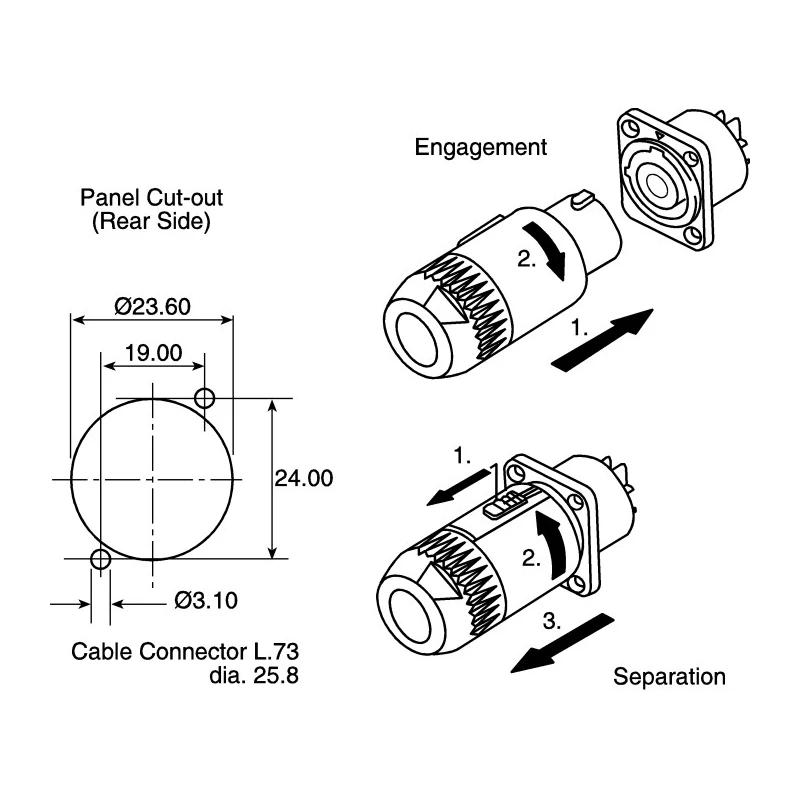

Includes quick lock mechanism with ergonomic release lever.
PowerCON series meets industrial safety and performance standards.

Product Description

The Neutrik NAC3MPXXA is a 20A, 250V mains plug specifically designed for panel mount applications. Featuring a robust nylon body and a ergonomic design, this straight-oriented male connector offers reliable and secure power connections for industrial and professional uses. Crimp termination ensures strong electrical and mechanical contact with cables up to 2.05 mm in diameter.

This mains plug belongs to Neutrik's PowerCON series, which bridges the gap between non-locking IEC connectors and larger, expensive multi-phase plugs. It is highly suitable for industrial, laboratory, commercial, and HVAC electrical distribution systems that require a safe, locking power inlet.

The connector is colour-coded blue and black for easy identification and incorporates a quick lock system with a release lever for fast and secure engagement. The contacts are made from silver-plated copper alloy to ensure excellent conductivity and corrosion resistance. Its 3-pole design supports three-wire connections and is optimized for a maximum current of 20 Amps at 250 Volts AC.

Certified by UL and compliant with various industrial safety standards, this product is manufactured in Liechtenstein known for strict quality controls. With a tough nylon housing and unique chuck type strain relief, it provides enhanced kink protection and long-lasting durability even under frequent use.

Panel mount design with ergonomic quick lock release lever. Colour coded non-interchangeable blue/black housing for safety. Compatible with 3-pole cables up to 2.05 mm diameter. Crimp termination provides excellent mechanical and electrical reliability.

Silver-plated copper alloy contacts for corrosion resistance. Meets UL, SEV, VDE, ANSI/ESD S20.20, and BS EN 61340-5-1 safety standards. Suitable for industrial, professional audio/video, and electrical power applications.
