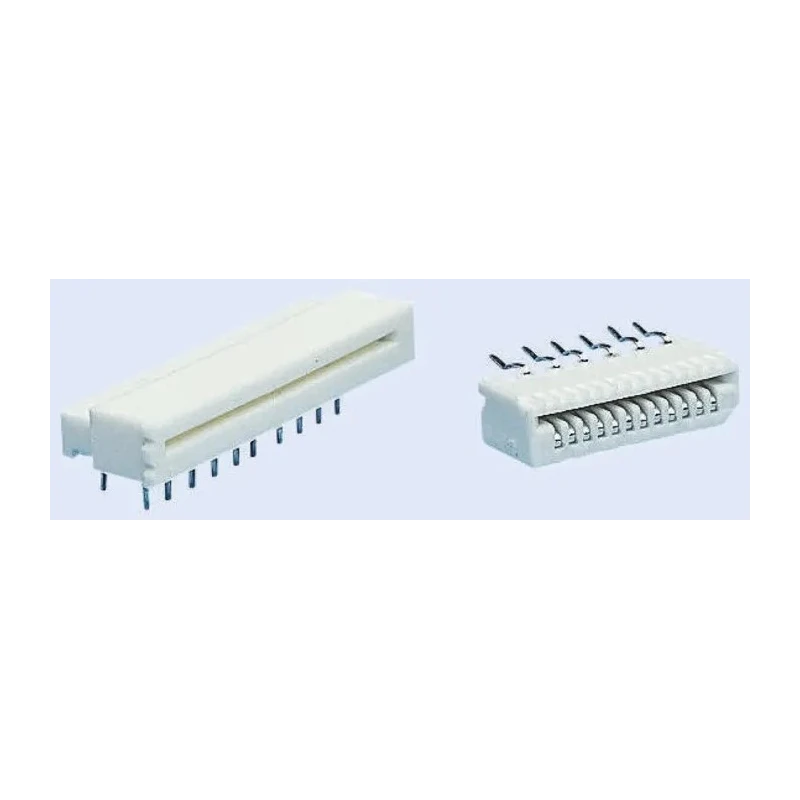

Molex 5597 1.25 mm Pitch 20 Way Right Angle Female FPC Connector Through Hole Solder 39-53-2204
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The connector uses phosphor bronze contact material plated with tin bismuth over nickel for durability.
- Features a slide type ZIF actuator to allow easy insertion and a secure connection.
- Designed with a right angle orientation suitable for tight packaging applications.
- Locking mechanism ensures reliable engagement between FPC and connector.
- Supports a current rating of 1A and voltage of 200V for standard electronic applications.
- Operating temperature range from -20°C to 80°C allows use in varied environments.
- Housing is made of polybutylene terephthalate, providing good mechanical strength.
- Single row, 20 contact connector ideal for PCB connections in automotive and other electronic sectors.
Product Description
Molex 39-53-2204 20 Way Right Angle Female FPC Connector is a high-quality PCB connector featuring a 1.25 mm pitch and through-hole mount design, perfect for secure solder termination. This connector belongs to the 5597 series, known for its zero insertion force (ZIF) capabilities which minimize wear during repeated use while ensuring reliable electrical contact.
Constructed with phosphor bronze contacts plated with tin bismuth over nickel, this connector supports a continuous current rating of 1A and a maximum voltage of 200V. Its sturdy polybutylene terephthalate housing provides durability and resistance to mechanical stress. The slide type actuator facilitates quick and dependable connection of the flexible printed circuit (FPC) to the PCB.
The connector is oriented at a right angle to optimize space in compact PCB layouts and includes a locking mechanism to secure the FPC firmly in position. It operates efficiently within a temperature range of -20°C to 80°C, making it suitable for demanding environments such as automotive electronics.
This 20-contact, single row female connector is ideal for applications requiring space-saving and reliable PCB connections. The product is manufactured in Japan to ensure stringent quality and reliability standards.
The connector uses phosphor bronze contacts plated with tin bismuth over nickel for durability. Features a slide type ZIF actuator for easy insertion and secure connection. Right angle orientation for space-saving PCB design.
Includes a locking mechanism for secure FPC engagement. Supports 1A current and 200V voltage ratings. Operates in temperature range -20°C to 80°C. Polybutylene terephthalate housing for mechanical strength. Single row, 20 contacts for precise electrical connections.
This Molex 5597 series FPC connector is suitable for electronics, automotive, industrial and manufacturing applications needing dependable and compact PCB FPC interfacing solutions. Explore more parts in the FPC Connectors category on EnvMart for diverse PCB connection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 1A and a maximum voltage of 200V, suitable for standard electronic applications.
The pitch size of this connector is 1.25 mm, which is designed for precise electrical connections in compact layouts.
It features phosphor bronze contacts plated with tin bismuth over nickel, and the housing is made of polybutylene terephthalate for mechanical strength.
The operating temperature range for this unit is from -20°C to 80°C, allowing it to function in varied environments.
This connector uses a through-hole mount design, providing secure solder termination on PCBs.
This model has 20 contacts, arranged in a single row, making it suitable for various PCB connection needs.
It features a right angle orientation, which is ideal for optimizing space in tight packaging applications.
Yes, it includes a locking mechanism that ensures reliable engagement between the flexible printed circuit (FPC) and the connector.
This connector utilizes a zero insertion force (ZIF) actuator, which minimizes wear during repeated use while ensuring reliable electrical contact.
The connector is manufactured in Japan, adhering to stringent quality and reliability standards.
This model supports solder termination, ensuring a secure connection on printed circuit boards.
