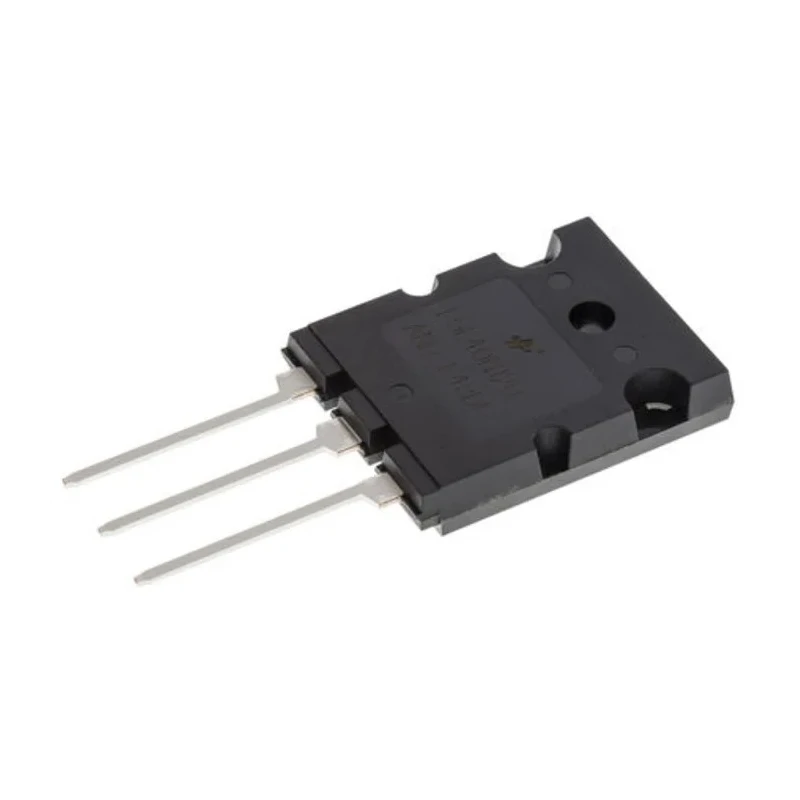

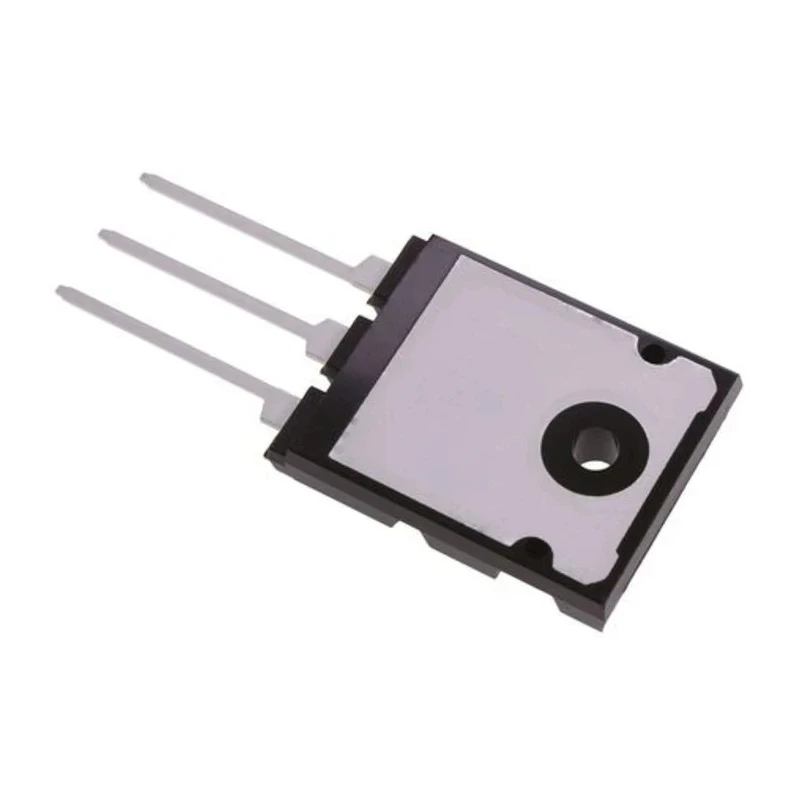

onsemi Power NPN Transistor, 17 A, 250 V, TO-264 Package, Through Hole Mounting, 150 W Pd, 3-Pin 2SC5200OTU

Name: onsemi Power NPN Transistor, 17 A, 250 V, TO-264 Package, Through Hole Mounting, 150 W Pd, 3-Pin 2SC5200OTU
Brand: onsemi
SKU: 194412
Price: 4.44 USD
Availability: InStock



Category Power Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	46.9mm
Length	20.2mm
Model	2SC5200OTU
Width	5.2mm
Mount Type	Through Hole
Series	2SC5200O
Maximum Operating Temperature	150°C
Package Type	TO-264
Pin Count	3
Maximum Collector Emitter Voltage Vceo	250V
Minimum DC Current Gain hFE	35
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	250V
Maximum Power Dissipation Pd	150W
Maximum DC Collector Current Idc	17A
Transistor Configuration	Single
Maximum Transition Frequency ft	30MHz

Key Features

The transistor supports a maximum power dissipation of 150 watts.
It features an NPN configuration with a minimum DC current gain of 35.
Maximum operating temperature is 150 degrees Celsius ensuring reliability under high stress.
The device has pin count of 3 and supports single transistor configuration.
It is designed for industrial applications requiring high current and voltage.
The transistor has a maximum transition frequency of 30 MHz for effective high-frequency performance.
Mount type is through hole ensuring strong mechanical stability in assemblies.
The product meets standard industry quality but has no specific approvals or automotive standards.

Product Description

onsemi 2SC5200OTU is a high-power NPN bipolar junction transistor designed for power electronics applications. It supports a maximum DC collector current of 17 A and a maximum collector emitter voltage of 250 V, providing robust performance in demanding circuits.

The transistor is housed in a TO-264 package with three pins configured for through-hole mounting, ensuring strong physical connection and heat dissipation. It has a maximum power dissipation rating of 150 W and can operate safely up to 150°C, making it suitable for heavy-duty industrial use.

Featuring a minimum DC current gain (hFE) of 35, this device delivers adequate amplification for switching and amplification needs. Its maximum transition frequency is 30 MHz, catering to moderately high-frequency applications.

Dimensions of 46.9 mm height, 20.2 mm length, and 5.2 mm width aid in compatibility with various PCB layouts. The transistor configuration is single and it offers reliable performance without specific certifications or automotive standards.

This transistor is widely used in power amplifiers, motor control circuits, and power switching applications across industrial, manufacturing, and electronic repair sectors. The transistor supports high collector current and voltage ratings.

Robust TO-264 package for effective thermal management. Designed with through hole mount for durability and stability. Compatible with power electronics industrial applications. Reliable operation up to 150 degrees Celsius temperature.

Suitable for high power dissipation environment up to 150 watts. Moderate frequency handling of up to 30 MHz. Compact dimensions for ease of PCB integration. No automotive standard compliance, focused on industrial usage.

Single transistor configuration with 3-pin layout. Explore EnvMart's wide catalog of bipolar transistors and semiconductors to find compatible components for your electronic designs and industrial projects.
