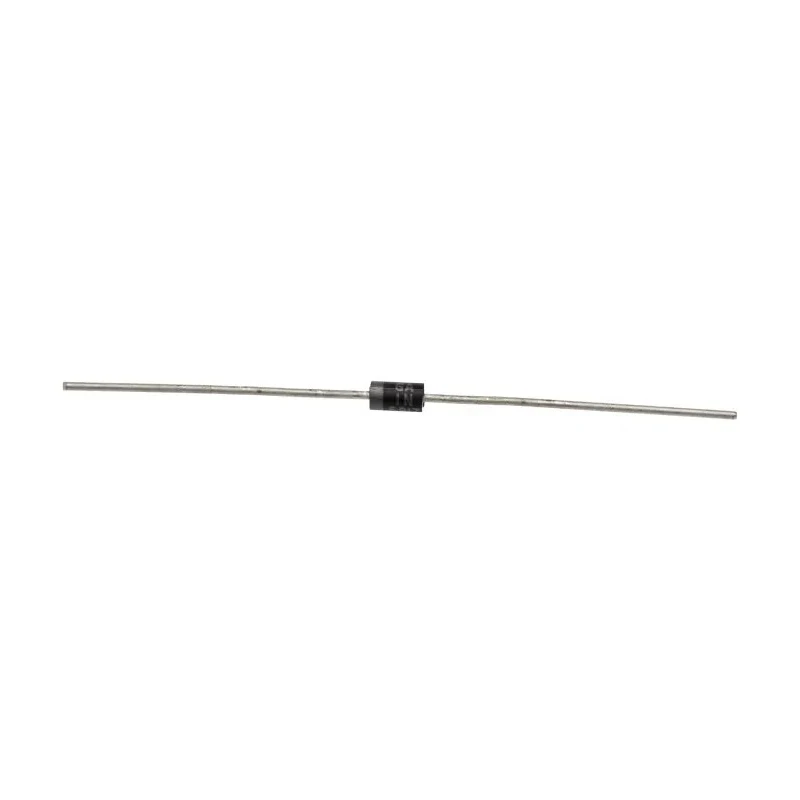

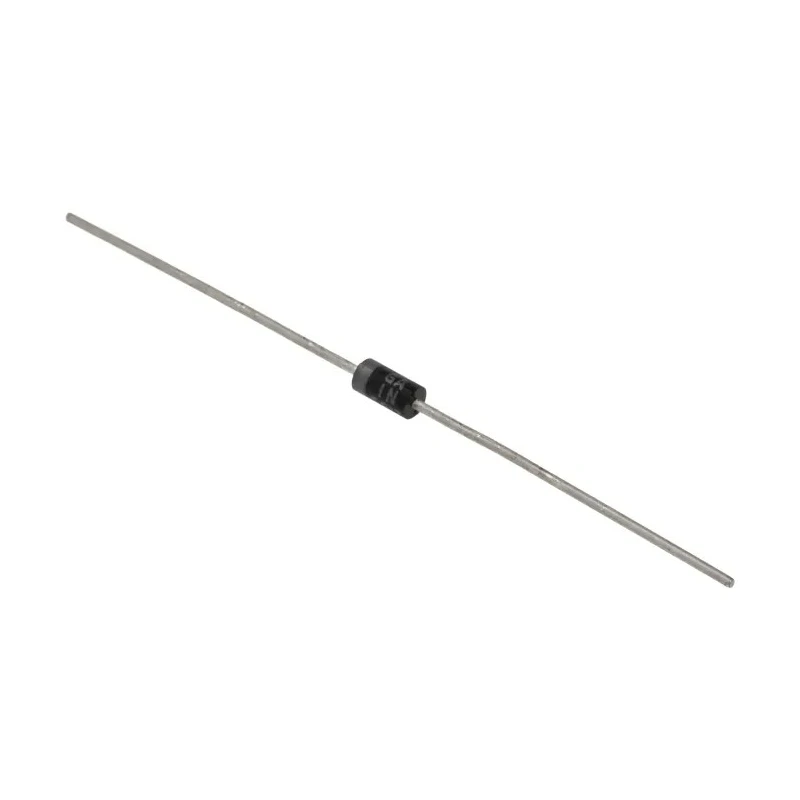

onsemi 20 V 1 A Schottky Diode Single Diode Through Hole 2-Pin Case 59-10 1N5817G
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 5.2mm |
| Model | 1N5817G |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 gram (approximately) |
| Mount Type | Through Hole |
| Series | 1N5817 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | Case 59-10 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Marking | 1N5817, 1N5818, 1N5819 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 0.9V |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 seconds |
Key Features
- The diode is mounted through hole with a 2-pin configuration.
- It supports a maximum continuous forward current of 1 ampere.
- The peak reverse repetitive voltage is rated at 20 volts.
- The diode package type is Case 59-10 with epoxy molded casing for durability.
- Designed for operation between -65°C and 125°C temperature range.
- Lead temperature tolerance for soldering is up to 260°C for 10 seconds.
- The polarity is clearly indicated by the cathode polarity band for easy identification.
- The device has a low forward voltage drop of approximately 0.9 volts, optimizing power efficiency.
Product Description
onsemi 1N5817G Schottky Diode Single Diode Through Hole 2-Pin Case 59-10 is a high-performance semiconductor component designed for low voltage, high frequency applications. Rated for 20 V peak reverse repetitive voltage and 1 A maximum continuous forward current, this diode is ideal for use in power rectification, free wheeling diodes, inverters, and polarity protection circuits.
The device features a Schottky Barrier principle with a large area metal-to-silicon junction for minimizing power loss and maximizing efficiency. It exhibits low forward voltage, low stored charge, and majority carrier conduction characteristics, making it highly efficient in reducing heat generation during operation.
Constructed with a molded epoxy case (Case 59-10), the diode is corrosion resistant with solderable terminal leads. It operates reliably over a temperature range from -65°C to 125°C and can endure a peak non-repetitive forward surge current of up to 25 A.
The diode's compact dimensions include a height of 5.2 mm and diameter of 2.7 mm. Its polarity is unambiguously marked by a cathode polarity band to ease installation. Moreover, the device complies with Pb-free standards, ensuring environmental safety.
Typical applications include industrial machinery, power supplies, automotive electronics, and other semiconductor diode-based systems requiring efficient rectification and protection.
The diode is mounted through hole with a 2-pin configuration. Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage at 20 volts. Epoxy molded Case 59-10 package type. Operating temperature range from -65°C to 125°C.
Lead temperature for soldering up to 260°C for 10 seconds. Cathode indicated by polarity band. Low forward voltage drop of 0.9 volts for efficient power use. Corrosion-resistant external surfaces with solderable terminals.
Explore more semiconductor diodes and electronic components in the Electronics & Electricals category at EnvMart for your industrial and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1 ampere.
The peak reverse repetitive voltage rating is 20 volts.
It operates reliably within a temperature range from -65°C to 125°C.
The diode has a low forward voltage drop of approximately 0.9 volts.
This diode has a height of 5.2 mm and a diameter of 2.7 mm.
The diode is packaged in an epoxy molded Case 59-10.
The lead temperature tolerance for soldering is up to 260°C for 10 seconds.
The polarity is indicated by a cathode polarity band for easy identification.
The peak non-repetitive forward surge current can reach up to 25 A.
This is a single diode configuration.
All external surfaces are corrosion resistant and the terminal leads are readily solderable.
Typical applications include power rectification, free wheeling diodes, inverters, and polarity protection circuits.
