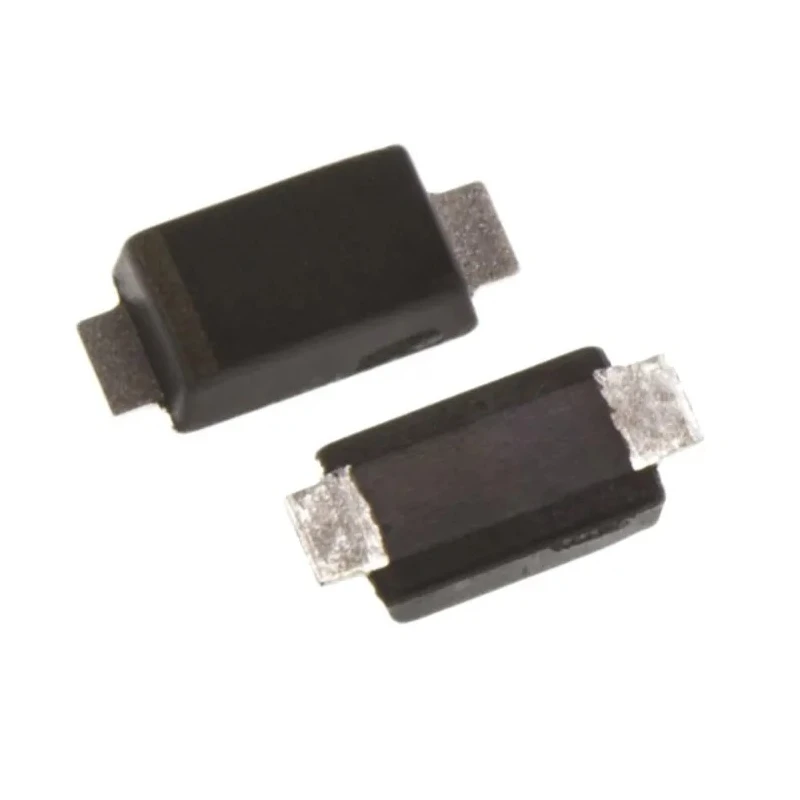

onsemi 20 V 1 A Schottky Diode 2-Pin SOD-123FL MBR120VLSFT3G

onsemi MBR120VLSFT3G Schottky Diode is a surface mount diode designed using the Schottky barrier principle, featuring a large-area metal-to-silicon junction for efficient power rectification. This 2-pin diode housed in an SOD-123FL package provides ideal solutions for low voltage and high frequency applications requiring compact size and weight efficiency.

This diode performs excellently as a freewheeling and polarity protection device in surface mount applications, particularly where space and weight are critical, such as in portable and battery-powered products including cellular phones, chargers, notebooks, printers, PDAs, and PCMCIA cards.

The device supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 20 V. Its low forward voltage of 0.34 V improves overall efficiency by reducing power loss during conduction. The diode operates reliably in a wide temperature range from -65°C to 125°C, with a surge current rating of 45 A for transient conditions.

Its compact dimensions (2.9 mm length × 1.8 mm width × 0.88 mm height) and compliance with automotive standard AEC-Q101 highlight its suitability for automotive and industrial use where reliable performance under harsh conditions is mandatory. The package design facilitates optimal automated board assembly processes and ensures mechanical and thermal reliability.

Surface mount 2-pin diode in SOD-123FL package. Maximum forward current of 1 ampere suited for low power applications. Peak reverse voltage rating of 20 volts for effective voltage blocking. Low forward voltage drop enhances circuit efficiency.

Wide operating temperature range supports various environmental conditions. High surge current tolerance of 45 amperes protects against transient events. Compact size fits space-constrained electronic designs. Automotive standard AEC-Q101 certified for automotive-grade applications.

This Schottky diode is suitable for use in industrial and commercial electronic designs involving AC/DC and DC/DC conversion, reverse battery protection, power ORing, and other applications that require efficient, compact, and reliable diode rectification. Its robust design ensures long-term reliability in communication devices, automotive electronics, power supplies, and portable equipment.
