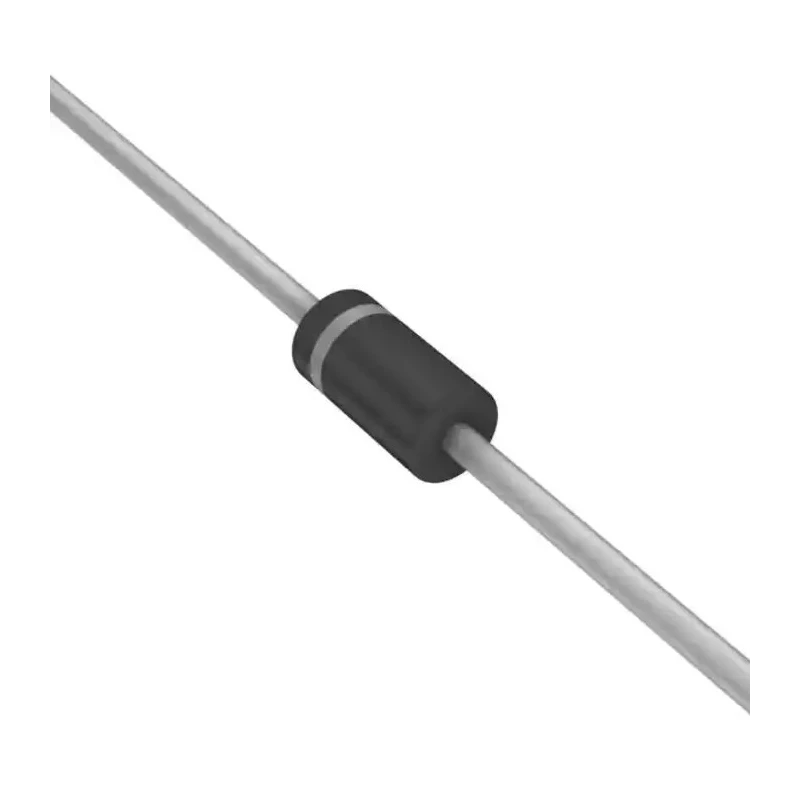

onsemi 100 V 2 A Schottky Barrier Rectifier, Through Hole, DO-41 Package, 2-Pin MBR1100G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Length | 5.2mm |
| Model | MBR1100G |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily solder able |
| Gross Weight | 0.4 gram (approximately) |
| Mount Type | Through Hole |
| Series | MBR1100 |
| Maximum Operating Temperature | 175°C |
| Case | Epoxy, Moulded |
| Package Type | DO-41 |
| Minimum Operating Temperature | 65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Marking | B1100 |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.79V |
| Lead Temperature for Soldering Purposes | 260°C Max. For 10 Seconds |
Key Features
- Through hole mount type with DO-41 package for easy installation.
- Features a maximum continuous forward current of 2 amperes.
- Peak reverse repetitive voltage rating of 100 volts ensures robust performance.
- Low forward voltage drop of 0.79 V reduces power loss and enhances efficiency.
- Operates reliably in temperatures ranging from -65°C to 175°C.
- Peak non-repetitive forward surge current capacity is 50 amperes.
- Compact dimensions of 5.2 mm length and 2.7 mm diameter support space-saving designs.
- Epoxy molded case with corrosion-resistant finish for durability.
Product Description
onsemi MBR1100G is a high-performance 100 V, 2 A Schottky Barrier Rectifier featuring a through hole mount and DO-41 package type. It is purpose-built to provide efficient rectification in low voltage, high frequency inverters, free wheeling diodes, and polarity protection in industrial, automotive, and electronic system applications.
This device employs the Schottky Barrier principle with epitaxial construction, oxide passivation, and metal overlap contact to ensure low reverse current and low stored charge, yielding majority carrier conduction and minimal power loss.
Operating between -65°C and 175°C, the MBR1100G sustains a maximum continuous forward current of 2 A and a peak non-repetitive surge current of 50 A, suitable for demanding surge conditions.
The rectifier’s compact physical dimensions of 5.2 mm in length and 2.7 mm in diameter along with a molded epoxy case and corrosion-resistant finish contribute to both thermal management and mechanical reliability. Terminal leads are designed for ready soldering with a maximum lead temperature of 260°C for 10 seconds.
Through hole mount with standard DO-41 package. Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 100 V. Low forward voltage of 0.79 V for high efficiency. Peak surge current capability of 50 A. Temperature range from -65°C to 175°C operating junction.
Epoxy molded casing for durability and corrosion resistance. Cathode polarity clearly indicated by polarity band. Compliant with Pb-Free and RoHS standards. Lightweight design at approximately 0.4 grams.
This Schottky Barrier Rectifier is ideal for applications in industrial electronics, power supplies, automotive circuits, and renewable energy systems requiring reliable diode performance under stringent electrical and thermal stress. Its efficient conduction characteristics contribute to reduced power consumption and improved system longevity.
For more components like this, explore our Semiconductor and Schottky Diodes & Rectifiers categories to find compatible parts and accessories that fit your project requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky Barrier Rectifier is 2 A.
It has a peak reverse repetitive voltage rating of 100 V.
The forward voltage drop is 0.79 V, which helps reduce power loss and enhance efficiency.
This model operates reliably in temperatures ranging from -65°C to 175°C.
The peak non-repetitive forward surge current capacity is 50 A.
It comes in a DO-41 package type, suitable for through hole mounting.
The rectifier has compact dimensions of 5.2 mm in length and 2.7 mm in diameter.
It features an epoxy molded case with a corrosion-resistant finish.
The weight of this unit is approximately 0.4 grams.
This rectifier is compliant with Pb-Free and RoHS standards.
The terminal leads are readily solderable with a maximum lead temperature of 260°C for 10 seconds.
It is suitable for applications in industrial electronics, power supplies, automotive circuits, and renewable energy systems.
