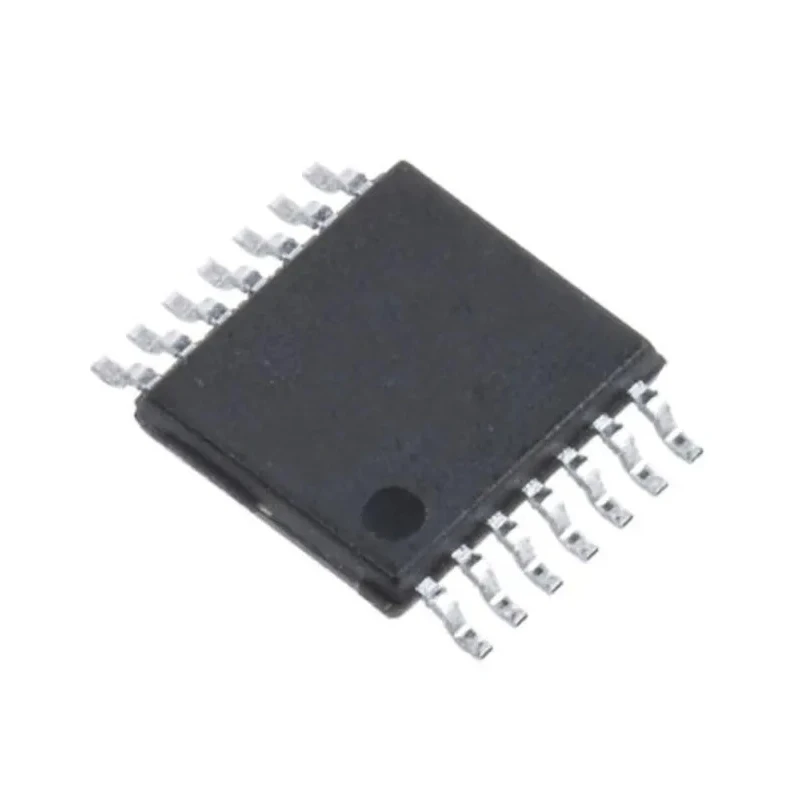

onsemi 6 1-Input Inverter Schmitt Trigger Input Logic Gate 14-Pin TSSOP MC74HC14ADTR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.05mm |
| Operating Voltage Range | 2 to 6V |
| Length | 5.1mm |
| Model | MC74HC14ADTR2G |
| Mount Type | Surface |
| Output type | CMOS |
| Series | MC74HC14A |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, JEDEC Standard No. 7.0A, AEC-Q100 |
| Pin Count | 14 |
| Number of Elements | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | 5.2mA |
| Maximum Propagation Delay Time @ CL | 22ns |
| Number of Inputs per Gate | 1 |
| Low Input Current | 1mA |
| Output Drive Capability | 10 LSTTL Loads |
| Chip Complexity | 60 FETs or 15 Equivalent Gates |
| Nexperia Schmitt Trigger Input 74HC14PW,112 Inverter 6, 14-Pin TSSOPBrand | Nexperia |
Key Features
- Features six individual inverter gates with Schmitt trigger inputs for noise immunity.
- Operates within a voltage range of 2 to 6 volts, offering versatility in electronic designs.
- Supports a maximum propagation delay time of 22 nanoseconds at capacitive load.
- Has a low input current of 1 mA enhancing power efficiency.
- Temperature range from -55°C to 125°C suitable for industrial and automotive environments.
- Output supports CMOS logic family with a maximum high-level output current of 5.2 mA.
- Complies with RoHS, JEDEC Standard No. 7.0A, and AEC-Q100 automotive standard certifications.
- Compact 14-pin TSSOP package measuring 5.1 mm in length and 1.05 mm in height.
Product Description
onsemi MC74HC14ADTR2G is a 6 1-Input Inverter Schmitt Trigger Input Logic Gate housed in a 14-Pin TSSOP package, providing high-performance silicon-gate CMOS technology ideal for electronic, automotive, and industrial applications.
This device features six inverter gates with Schmitt trigger inputs designed to "square up" slow rising and falling signals, improving signal integrity in noisy environments. The device input compatibility with standard CMOS and LSTTL outputs makes it a versatile component for various electronic designs.
Operating voltage ranges from 2 to 6 V with a maximum propagation delay of 22 ns at capacitive load, the MC74HC14ADTR2G ensures fast and reliable performance. It also features low input current of 1 mA and output drive capability capable of handling 10 LSTTL loads.
The compact 14-pin TSSOP package dimensions are 5.1 mm in length and 1.05 mm in height, making it suitable for space-constrained circuit boards. It supports a wide temperature range of -55°C to 125°C, qualifying it for use in demanding industrial and automotive environments, complying with AEC-Q100 automotive standard alongside RoHS and JEDEC certifications.
Features six inverter gates with Schmitt trigger inputs for noise immunity. Operates within 2 to 6 V voltage range with low input current of 1 mA. Maximum propagation delay is 22 nanoseconds, ensuring fast signal processing.
Output is CMOS type, supporting 10 LSTTL loads for drive capability. Operating temperature range of -55°C to 125°C for harsh environments. Compact 14-pin TSSOP package sized for efficient PCB layouts. Meets RoHS, JEDEC Standard No. 7.0A, and AEC-Q100 automotive standards.
Ideal for use in electronic equipment manufacturing, industrial automation, automotive circuitry, and high-reliability systems requiring robust Schmitt-triggered inverter gates. Explore extensive onsemi semiconductor solutions, including logic ICs and other integrated circuits, on EnvMart for precise industrial, automotive, and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 2 to 6 volts, providing versatility for various electronic designs.
The maximum propagation delay time is 22 nanoseconds at capacitive load, ensuring fast signal processing.
This model features six individual inverter gates with Schmitt trigger inputs.
It has a low input current of 1 mA, enhancing power efficiency in electronic applications.
The output type is CMOS, capable of driving up to 10 LSTTL loads.
The compact 14-pin TSSOP package measures 5.1 mm in length and 1.05 mm in height.
It operates within a temperature range of -55°C to 125°C, making it suitable for industrial and automotive environments.
It complies with RoHS, JEDEC Standard No. 7.0A, and AEC-Q100 automotive standard certifications.
It utilizes Schmitt trigger inputs designed to improve signal integrity in noisy environments.
The maximum high-level output current is 5.2 mA, allowing for effective signal driving capabilities.
The mounting type for this model is surface mount, suitable for efficient PCB layouts.
This inverter gate belongs to the HC logic family, which is known for its high-speed performance.
