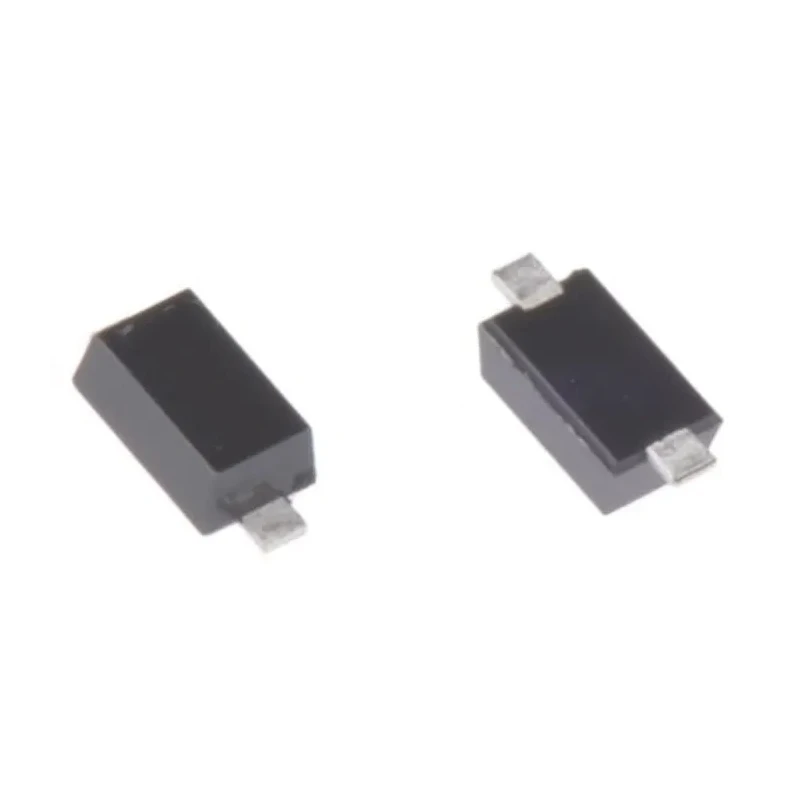

onsemi 60 V 2 A Schottky Diode 2-Pin Surface Mount SOD-123F SS26FL
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.08mm |
| Length | 3mm |
| Model | SS26FL |
| Width | 1.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123F |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.7V |
| Peak Reverse Recovery Time trr | 8.26ns |
Key Features
- The diode has a low forward voltage drop of 0.7 V for efficient operation.
- It is designed for surface mount applications with a SOD-123F package type.
- Rated for operation over a wide temperature range from -55°C to 125°C.
- Features ultra-thin profile measuring 3 mm in length, 1.95 mm in width, and 1.08 mm in height.
- Designed with single diode configuration and 2 pins for straightforward mounting.
- Peak non-repetitive forward surge current up to 50 A supports occasional transient currents.
- Fast peak reverse recovery time of 8.26 ns improves switching performance.
Product Description
The onsemi SS26FL is a high-performance Schottky diode tailored for electronic applications requiring efficient rectification and fast switching. This surface mount diode comes in a SOD-123F package, optimized for compact PCB designs, with dimensions of 3 mm length, 1.95 mm width, and an ultra-thin 1.08 mm height.
Electrical characteristics include a maximum continuous forward current of 2 A and a peak reverse repetitive voltage rating of 60 V, making it suitable for moderate power circuits.
The diode maintains a low forward voltage drop of 0.7 V, reducing power losses and heat generation in circuits. Operating temperature ranges from -55°C to 125°C ensure reliable performance in varied environmental conditions.
Its fast peak reverse recovery time of 8.26 ns allows for efficient switching in power management and protection circuits.
The SS26FL diode is ideal for use in industrial electronics, telecommunications, power supplies, and automotive circuit protection where Schottky diode characteristics are essential.
The diode features a single diode configuration with 2 pins for straightforward PCB mounting. Peak non-repetitive forward surge current rating of 50 A supports transient load conditions. This device is RoHS compliant and constructed with a green mold compound for environmental compliance.
EnvMart customers will find the onsemi SS26FL diode an excellent choice for compact, efficient power circuit applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
It has a peak reverse repetitive voltage rating of 60 V.
This diode measures 3 mm in length, 1.95 mm in width, and 1.08 mm in height.
The forward voltage drop is 0.7 V, which helps reduce power losses in circuits.
The operating temperature range is from -55°C to 125°C.
It uses a SOD-123F package type, designed for surface mount applications.
The peak non-repetitive forward surge current rating is up to 50 A.
The peak reverse recovery time is 8.26 ns, which enhances switching performance.
This diode has a single configuration with 2 pins for straightforward mounting.
It is suitable for industrial electronics, telecommunications, power supplies, and automotive circuit protection.
Yes, it is RoHS compliant and constructed with a green mold compound for environmental compliance.
The SS26FL is a Schottky rectifier, optimized for efficient rectification and fast switching.
