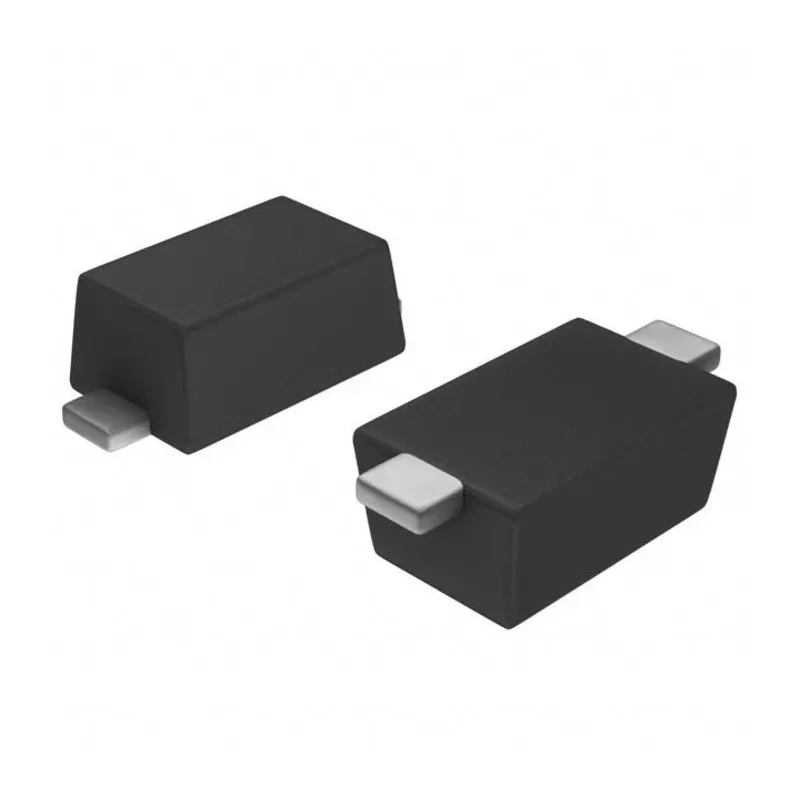

onsemi 40 V 3 A Diode Schottky 2-Pin SOD-123 SS34FA

onsemi SS34FA is a 40 V, 3 A Schottky diode housed in a compact SOD-123 surface mount package. Designed for efficient diode rectification, it offers low forward voltage drop and high current capacity with a maximum continuous forward current of 3 Amperes and a peak forward surge current of 80 Amperes. Its peak reverse repetitive voltage rating of 40 Volts makes it appropriate for various medium-voltage electronic circuits.

The diode operates reliably over a wide temperature range from -55 to 125 degrees Celsius, making it suitable for demanding industrial and automotive environments. It features a guard ring that provides overvoltage protection and ensures rugged performance under transient stress. The diode configuration is single with two pins for easy surface mount PCB integration.

Compact physical dimensions of length 2.9mm, width 1.9mm, and height 1.43mm enable installation in space-constrained designs. Compliance with the AEC-Q101 automotive standard makes this diode suitable for automotive power electronics applications requiring high reliability and robustness.

This Schottky diode is commonly used in power rectification circuits, power supply modules, switching power supplies, voltage clamping, and protection circuits within electronic manufacturing, automotive systems, communication equipment, and industrial automation.

The diode features a Schottky rectifier configuration for improved forward voltage characteristics. The compact SOD-123 package ensures easy surface mounting in tight circuit layouts. Maximum continuous forward current rating is 3 Amperes for reliable power handling.

Peak reverse repetitive voltage is rated at 40 Volts for high-voltage tolerance. Operating temperature range extends from -55 to 125 °C, suited for industrial environments. Peak forward surge current capability of 80 Amperes ensures robustness against transient conditions.

The diode incorporates a guard ring for overvoltage protection, enhancing durability. Pin count is two with a single diode configuration optimized for rectification. Automotive standard compliance AEC-Q101 ensures suitability for automotive applications.

Compact dimensions: length 2.9mm, width 1.9mm, height 1.43mm enable compact PCB designs. Explore more semiconductor diodes and Schottky rectifiers at EnvMart for your industrial and electronic component needs.
