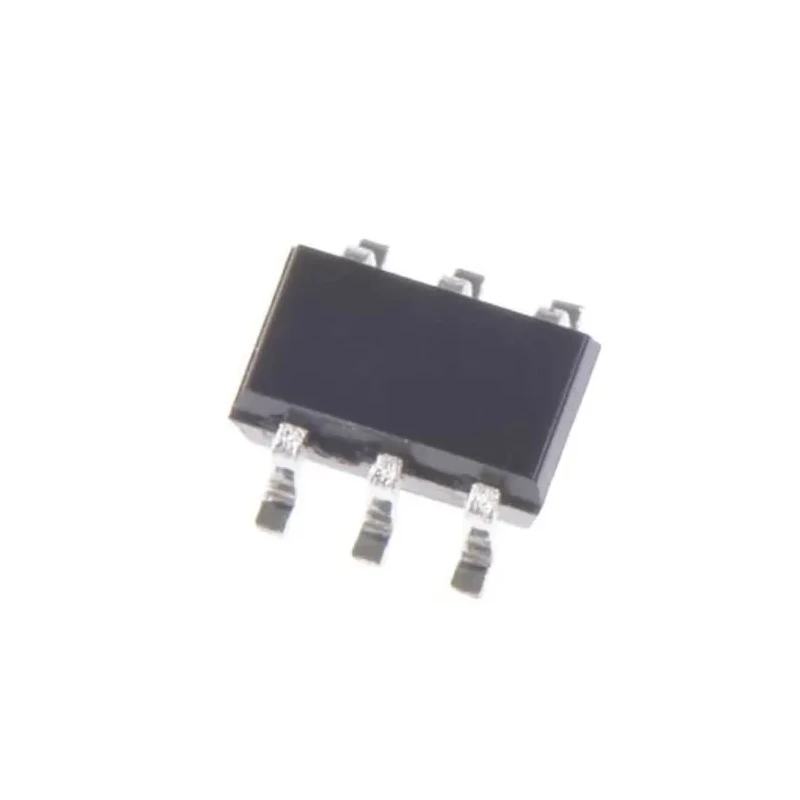

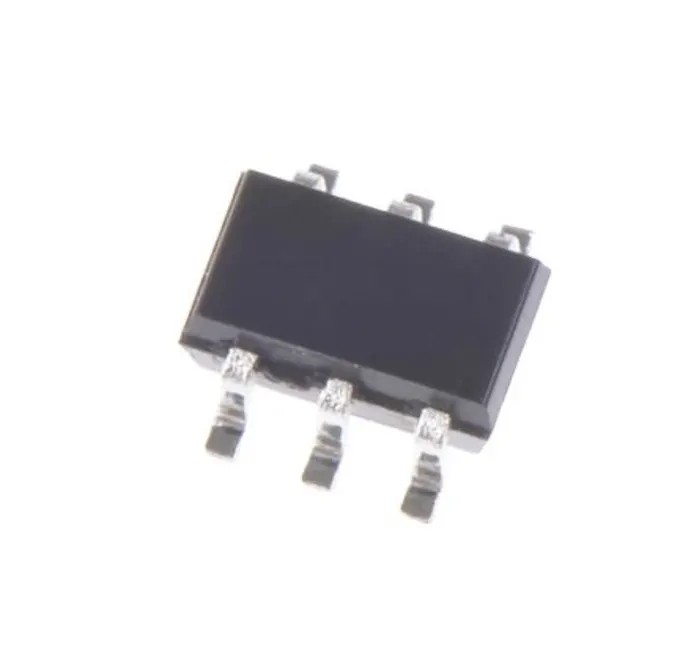

onsemi Dual 2 N-Channel Small Signal MOSFET, 910 mA Continuous Drain Current, 20 V Drain Source Voltage NTJD4401NT1G
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NTJD4401NT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | +150°C |
| Package Type | SC-88 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 910mA |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 440mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 550mW |
| Typical Gate Charge Qg @ Vgs | 1.3nC |
| Maximum Gate Source Voltage Vgs | 12V |
| Forward Voltage Vf | 0.76V |
| Transistor Configuration | Dual |
Key Features
- Operates with a maximum continuous drain current of 910 mA.
- Supports a maximum drain-source voltage of 20 V.
- Features low gate charge for efficient switching.
- Packaged in a compact 6-pin SC-88 surface-mount package.
- Designed for use in load power switching and DC-DC converters.
- Capable of operating at temperatures from -55°C to +150°C.
- Dual transistor configuration suitable for compact circuit designs.
- Includes ESD protected gate for enhanced device reliability.
Product Description
onsemi NTJD4401NT1G is a Dual 2 N-Channel Small Signal MOSFET optimized for efficient load power switching and use in battery-powered devices such as cell phones, media players, digital cameras, and PDAs. It features a small footprint 6-pin SC-88 surface-mount package measuring 2.2 mm in length, 1.35 mm in width, and 1 mm in height.
This device supports a maximum continuous drain current of 910 mA and a maximum drain-source voltage of 20 V, operating reliably within a temperature range of -55°C to +150°C. Its low typical gate charge of 1.3 nC and low forward voltage of 0.76 V enable efficient switching with minimal losses.
The transistor configuration is dual, offering two N-channel elements per chip, and it includes features such as an enhancement mode channel and an ESD protected gate to improve robustness. It is packaged in the SC-88 form factor, which is ideal for surface mount technology (SMT) applications requiring space efficiency.
This MOSFET complies with the automotive standard AEC-Q101, making it suitable for automotive and industrial electronic applications where quality and reliability are critical. Operates with a maximum continuous drain current of 910 mA.
Supports a maximum drain-source voltage of 20 V. Features low gate charge for efficient switching. Packaged in a compact 6-pin SC-88 surface-mount package. Designed for use in load power switching and DC-DC converters. Capable of operating at temperatures from -55°C to +150°C.
Dual transistor configuration suitable for compact circuit designs. Includes ESD protected gate for enhanced device reliability. Complies with automotive standard AEC-Q101, suitable for automotive applications.
This product is widely used in industrial, automotive, consumer electronics, and communication devices. It is ideal for engineers designing compact and efficient switching circuits. Explore more semiconductor devices and MOSFETs from onsemi on EnvMart's comprehensive catalog.
Explore more products in our Discrete Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of the NTJD4401NT1G is 910 mA.
This model supports a maximum drain-source voltage of 20 V.
It can operate reliably within a temperature range of -55°C to +150°C.
It is packaged in a compact 6-pin SC-88 surface-mount package.
The typical gate charge for the NTJD4401NT1G is 1.3 nC.
The forward voltage of this MOSFET is 0.76 V.
This model features a dual transistor configuration, offering two N-channel elements per chip.
The maximum power dissipation for the NTJD4401NT1G is 550 mW.
It complies with the automotive standard AEC-Q101.
The maximum gate-source voltage for this MOSFET is 12 V.
The SC-88 package measures 2.2 mm in length, 1.35 mm in width, and 1 mm in height.
This model is designed for load power switching and DC-DC converters, making it suitable for automotive and industrial electronic applications.
