Recom DC/DC Converter 12V DC Output, 1.67A, 9-36V DC Input, 20W, Through Hole Mount, 6 Pins, 105°C Max Temp RP20

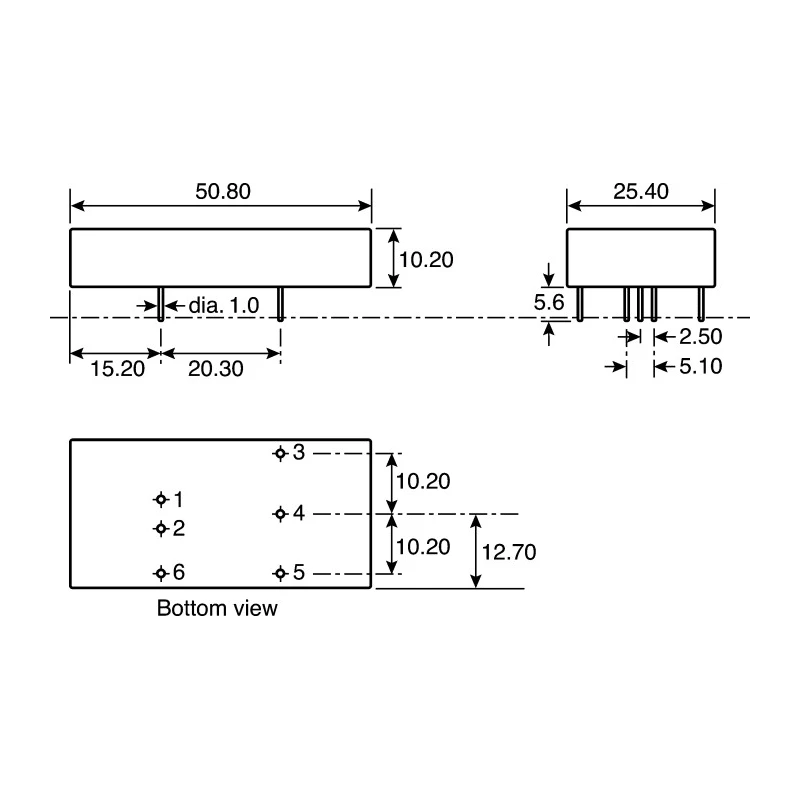

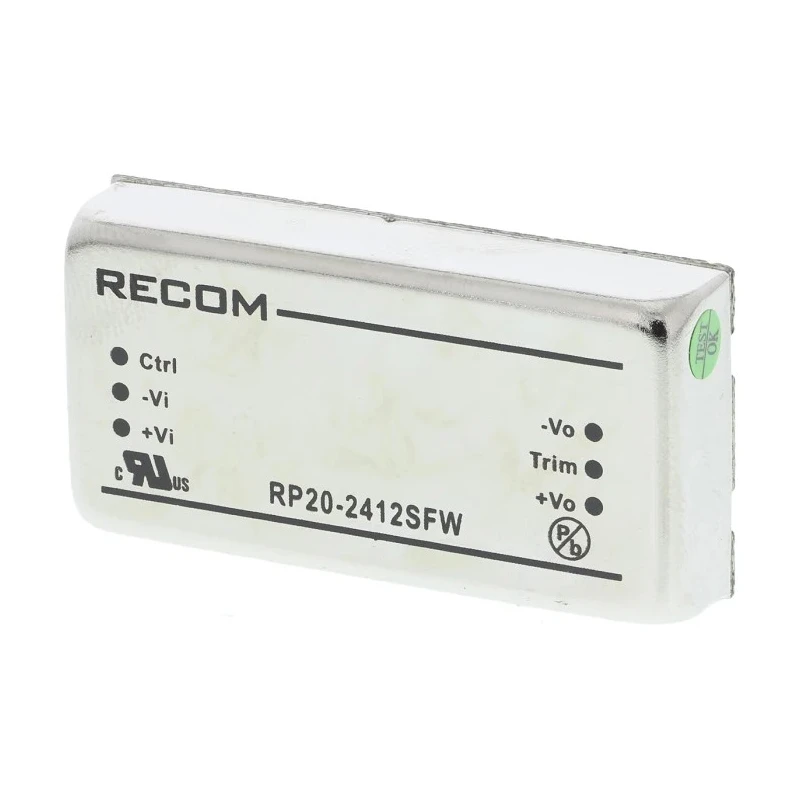

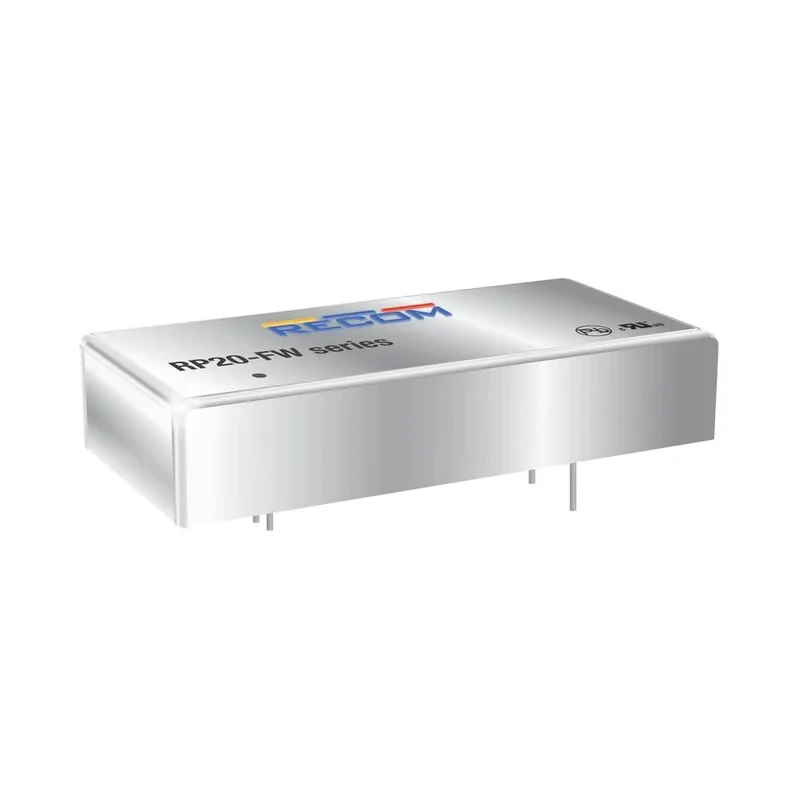

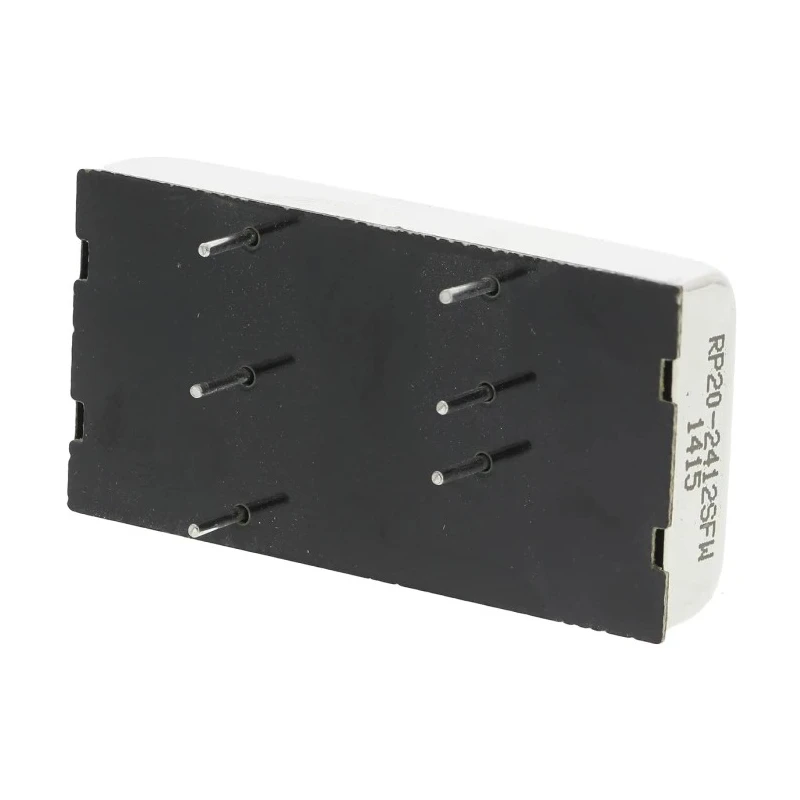

Recom RP20-2412SFW DC/DC Converter from the RP20 FW series delivers a regulated 12V DC output at 1.67A with a maximum output power of 20W. It operates over a wide supply voltage range from 9V to 36V DC, making it suitable for diverse power source environments. The converter features a through hole mount with 6 pins, housed in a compact package measuring 50.8mm in length, 25.4mm in width, and 10.2mm in depth, and weighs approximately 27 grams.

This product offers high efficiency of 85%, ensuring minimal energy loss and reducing heat generation during operation. It maintains reliable performance in demanding industrial environments, with an operating temperature range from -40°C up to 105°C. The device provides 1.6kV DC isolation voltage to protect both the converter and connected circuits against electrical faults.

Designed for safety and durability, it incorporates protections against overcurrent and overvoltage conditions and features a non-conductive plastic base plate to reduce electric shock risks. The unit also includes a remote on/off function and automatically recovers from short circuits without the need for manual reset.

This DC/DC converter is shielded on all sides to minimize electromagnetic interference, making it ideal for use in sensitive electronic applications including industrial automation, medical devices, food and beverage production, and data hub infrastructure.

Compliance with RoHS, UL 609501, and REACH standards ensures environmental and safety reliability. The product’s robust construction and performance make it a dependable choice for power conversion needs in electronic systems.

Wide 4:1 input voltage ratio supports 9V to 36V DC input range. High efficiency of 85% ensures minimal power loss and low heat generation. Through hole mount type with 6 pins for easy PCB integration. Operates safely between -40°C and +105°C maximum temperature.

Provides 1.6kV DC isolation voltage for reliable operation. Compact dimensions: 50.8mm length, 25.4mm width, 10.2mm depth. Low ripple and noise at 60mV peak-to-peak for smooth output power. Complies with RoHS, UL 609501, and REACH standards.

Includes overcurrent and overvoltage protection for device safety. Ideal for industrial automation, medical equipment, food and beverage, and data hubs. Explore more high-quality DC/DC Converters and power supply components at EnvMart to enhance your electronic designs with reliable power solutions.
