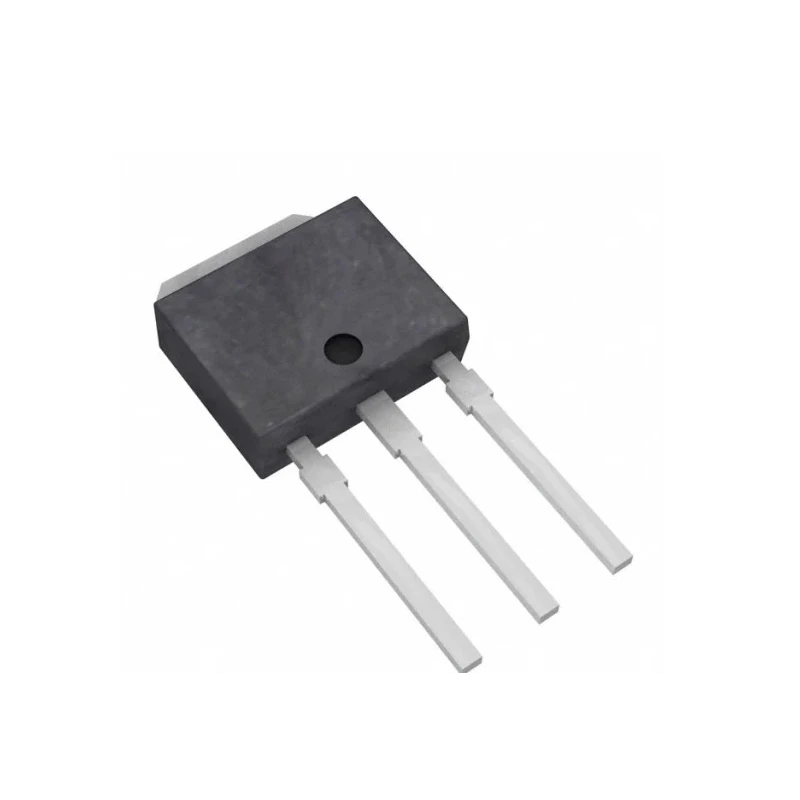

Vishay Single Type P-Channel MOSFET 100 V 3-Pin IRFU9120PBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Model | IRFU9120PBF |
| Mount Type | Through Hole, Surface |
| Maximum Operating Temperature | 150°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Channel Type | Type P |
| Maximum Drain Source Voltage Vds | 100V |
| Maximum Drain Source Resistance Rds | 0.6Ω |
| Typical Gate Charge Qg @ Vgs | 18nC |
| Maximum Gate Source Voltage Vgs | 60V |
| Forward Voltage Vf | -6.3V |
| Transistor Configuration | Single |
Key Features
- Operates efficiently with a maximum drain-source resistance of 0.6 Ohms.
- Has a typical gate charge of 18 nC at Vgs.
- Supports a maximum gate-source voltage of 60 V.
- Features a maximum operating temperature of 150°C for industrial applications.
- Package supports both through-hole and surface mounting.
- Complies with RoHS standards and is halogen and lead free.
- Optimized for low switching and conduction losses to enhance efficiency.
- Applicable in battery chargers, inverters, power supplies, and switching mode power supplies.
Product Description
Vishay IRFU9120PBF is a P-channel MOSFET designed for high efficiency and reliability in various electronic applications. This single transistor device supports a maximum drain-source voltage rating of 100 V and features 3 pins facilitating through-hole and surface mount configurations. Its maximum drain-source resistance of 0.6 Ohms at a gate-source voltage of 10 V aids in reducing power loss.
The device has a typical gate charge of 18 nC and can tolerate a maximum gate-source voltage of 60 V. Its maximum operating temperature of 150°C enables it to perform reliably in demanding environments, suitable for industrial, automotive, and consumer electronics sectors.
Manufactured with RoHS compliance, this MOSFET is halogen and lead free, ensuring environmentally friendly usage. The IRFU9120PBF is optimized for minimal switching and conduction losses, offering excellent efficiency and extended operational life.
This MOSFET is typically used in battery chargers, inverters, power supplies, and switching mode power supplies (SMPS). It supports industries including manufacturing, power management, and electronic device production.
Operates efficiently with low drain-source resistance. Supports high gate-source voltage for robust switching. Suitable for through-hole and surface mount applications. RoHS compliant and lead-free construction. Ideal for industrial and commercial electronic power management.
Provides reliable operation up to 150°C. Optimized to reduce switching and conduction loss. Applicable in various power supply and battery charger designs. Explore more semiconductor and MOSFET solutions on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum drain-source voltage rating for this model is 100 V.
It has a maximum operating temperature of 150°C, making it suitable for demanding environments.
The maximum drain-source resistance at a gate-source voltage of 10 V is 0.6 Ohms.
The typical gate charge for this model is 18 nC at Vgs.
This MOSFET supports both through-hole and surface mounting configurations.
The maximum gate-source voltage for this model is 60 V.
It is typically used in battery chargers, inverters, power supplies, and switching mode power supplies (SMPS).
This model complies with RoHS standards and is halogen and lead free.
The IRFU9120PBF has a pin count of 3.
The forward voltage for this model is -6.3 V.
The channel type of this MOSFET is P-channel.
This model has a single transistor configuration.
