| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.73mm |
| Length | 2.3mm |
| Model | MSS1P3-M3/89A |
| Width | 1.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 550mV |

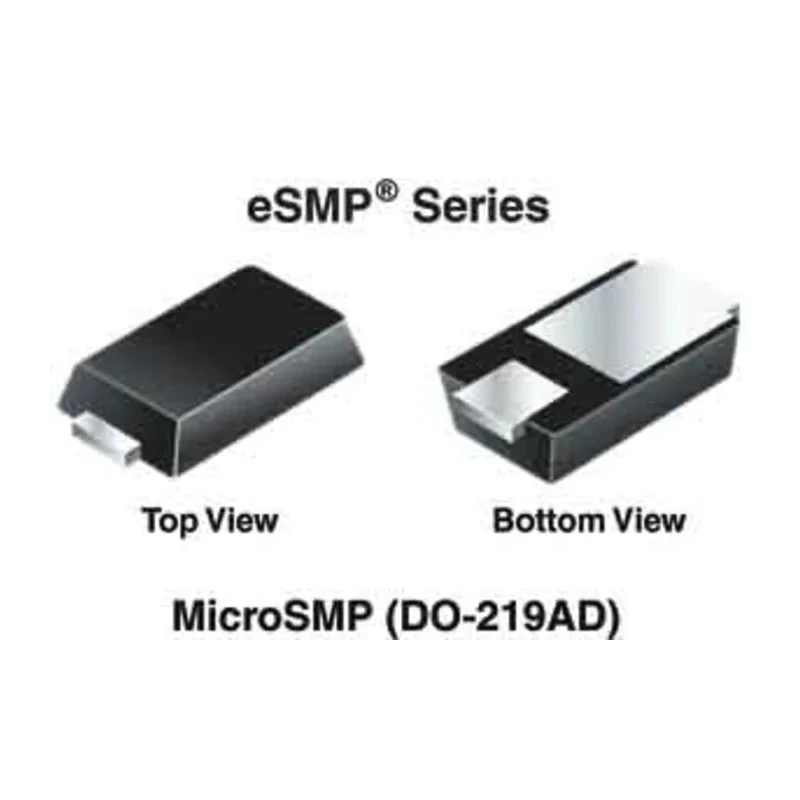

Vishay MSS1P3-M3/89A is a high-performance Schottky diode with a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 30 volts. This diode features a low forward voltage drop of 550 mV, contributing to lower power dissipation and improved efficiency in electronic circuits.
Packaged in a compact DO-219AD surface mount type, it is ideal for automated placement and applications requiring minimal height, with a typical profile height of 0.65 mm. The device supports a wide operating temperature range from -55°C to 150°C, making it suitable for industrial, automotive, and high-frequency switching environments.
Its peak non-repetitive forward surge current of 25 A allows it to withstand high current spikes, enhancing durability in power conversion and protection circuits. Applications include low voltage high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection across various industrial and automotive electronics.
Designed for surface mounting in the DO-219AD package. Maximum continuous forward current of 1 A with single diode configuration. Forward voltage drop of 550 mV improves power efficiency. Wide operating temperature range from -55°C to 150°C for reliability.
Peak surge current of 25 A supports transient voltage conditions. Compact dimensions (2.3 mm x 1.4 mm x 0.73 mm) for space-saving circuit design. Automotive grade AEC-Q101 certified ensuring high quality.
This Vishay Schottky diode is a reliable component choice for industrial, laboratory, automotive, and electronics manufacturing use cases, providing efficient switching and protection in power electronic designs.
