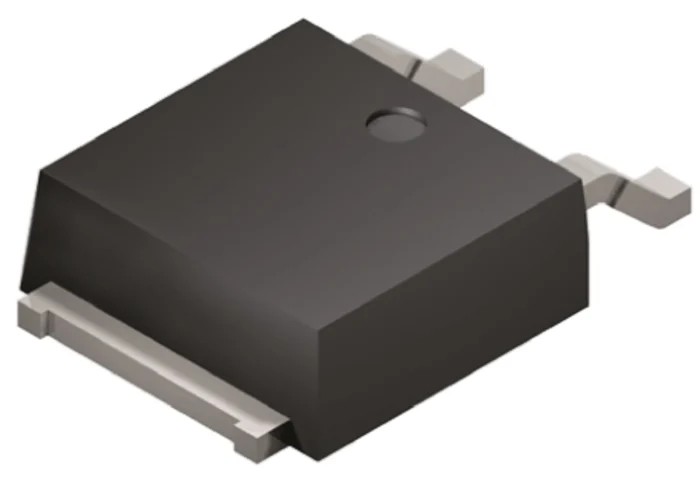

Vishay Schottky Diode 3.5A, 30V, TO-252 DPAK, Surface Mount, 3-Pin, VS-30WQ03FN-M3

Free Delivery in India | Lowest Global Shipping Charges

Vishay Schottky Diode 3.5A, 30V, TO-252 DPAK, Surface Mount, 3-Pin, VS-30WQ03FN-M3

Name: Vishay Schottky Diode 3.5A, 30V, TO-252 DPAK, Surface Mount, 3-Pin, VS-30WQ03FN-M3
Brand: Vishay
SKU: 86592
Price: 20.22 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	2.39mm
Brand	Vishay
Height	2.39mm
Length	6.73mm
Model	VS-30WQ03FN-M3
Width	6.22mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	3.5A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2mA
Peak Non-Repetitive Forward Surge Current Ifsm	535A
Maximum Forward Voltage Vf	0.35V
Vishay 30V 3.5A, Schottky Diode, 3-Pin D-PAK 30WQ03FNBrand	Vishay

Key Features

Schottky rectifier diode for fast switching and low forward voltage drop.
Rated for a maximum continuous forward current of 3.5A.
Allows a peak reverse repetitive voltage of up to 30V.
Surface mount, 3-pin TO-252 DPAK package for automated assembly.
Single diode configuration offering reliable power rectification.
Maximum forward voltage drop is just 0.35V, ensuring energy efficiency.
Operates within a temperature range from -40°C to 150°C.
Peak non-repetitive forward surge current capability up to 535A.

Product Description

The Vishay VS-30WQ03FN-M3 is a high-performance Schottky diode designed for demanding electronic applications that require efficient power rectification, fast switching speeds, and low power losses. This model is rated for a continuous forward current of 3.5A and a peak reverse repetitive voltage of 30V, making it suitable for power supply, DC-DC conversion, and similar tasks in modern electronics.

Encased in a robust TO-252 (DPAK) surface mount package with three pins, the device is optimized for automated PCB assembly and efficient thermal management. Its low maximum forward voltage of only 0.35V ensures minimal energy loss during conduction, while the Schottky construction provides a very fast switching action with low reverse recovery times.

The VS-30WQ03FN-M3 operates reliably in environments with temperatures ranging from -40°C to 150°C and supports a peak non-repetitive forward surge current up to 535A, enhancing its resilience against transient overloads. The diode is configured as a single rectifier and has a compact form, measuring 6.73mm in length, 6.22mm in width, and 2.39mm in height.

With a low peak reverse leakage current of 2mA and high surge capability, this component is well suited for integration into power circuits, voltage clamping, reverse polarity protection, and other demanding scenarios faced in industrial, commercial, and automotive electronics where performance and reliability are critical.

The Vishay VS-30WQ03FN-M3 is widely utilized in industrial automation, power management systems, motor drives, and as a replacement or upgrade in various power electronics assemblies. Its compatibility with automated assembly and performance under harsh conditions makes it an attractive choice in high-volume production and mission-critical environments.

Explore the Schottky Diode category to find the best-fit rectifier and electronic components from leading brands like Vishay for your power management and industrial design needs.
