| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.73mm |
| Length | 2.3mm |
| Model | MSS1P2L-M3/89A |
| Width | 1.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 500mV |
Vishay MSS1P2L-M3/89A Schottky Diode is a surface mount discrete semiconductor designed for efficient, low-loss rectification in electronic circuits. Rated for a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 20 V, this device excels in low voltage, high frequency applications.

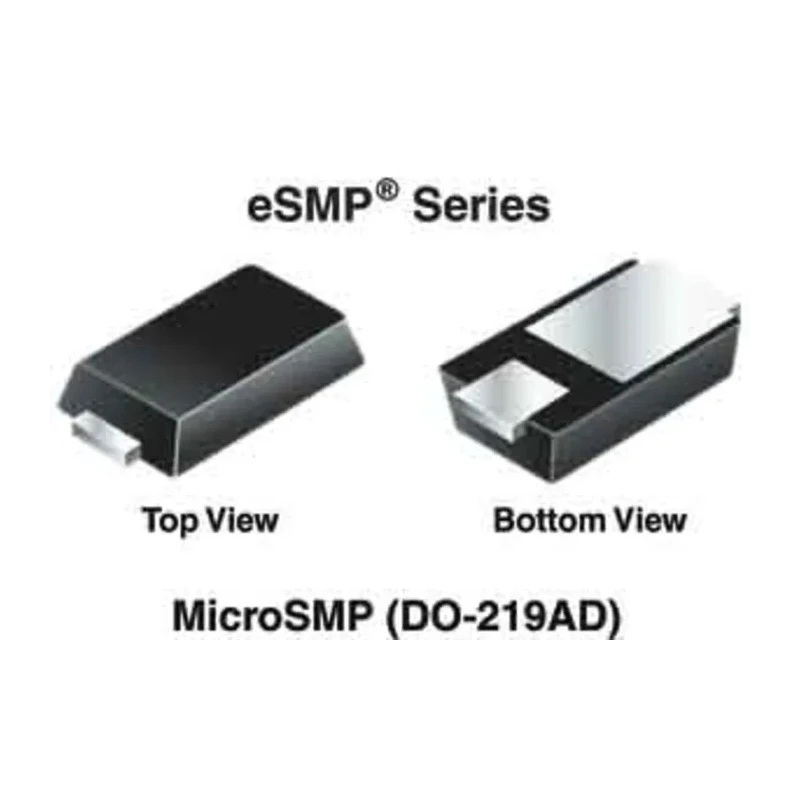

The diode features a compact DO-219AD package with a very low profile height of 0.73 mm, well-suited for automated assembly on printed circuit boards. Its low forward voltage drop of 500 mV minimizes energy dissipation, improving overall power efficiency and thermal management.
Operating across a wide temperature range from -55°C to 150°C, the diode maintains reliable performance under demanding conditions. It supports a high peak non-repetitive forward surge current of 25 A, providing robustness against transient surges and spikes commonly found in power electronics environments.
The diode's single 2-pin configuration simplifies circuit design and integration. Compliance with the automotive standard AEC-Q101 makes it suitable for automotive and industrial applications that require stringent quality and reliability standards.
Typical application areas include low voltage, high frequency inverters, freewheeling diodes in DC/DC converters, and polarity protection circuits. With dimensions of 2.3 mm in length and 1.4 mm in width, the diode ensures compactness without compromising electrical performance.
Features a DO-219AD package suitable for automated placement. Low forward voltage drop of 500 mV ensures low power losses. Wide operating temperature range from -55°C to 150°C. High peak surge current of 25 A for transient protection.
Single diode with 2 pins for efficient circuit integration. Compliant with automotive quality standard AEC-Q101. Compact physical dimensions with very low profile.
This Vishay Schottky diode is a reliable choice for electronics design in industrial, automotive, manufacturing, and power supply applications. EnvMart offers this model under the Schottky Diodes & Rectifiers category for professional industrial use.
