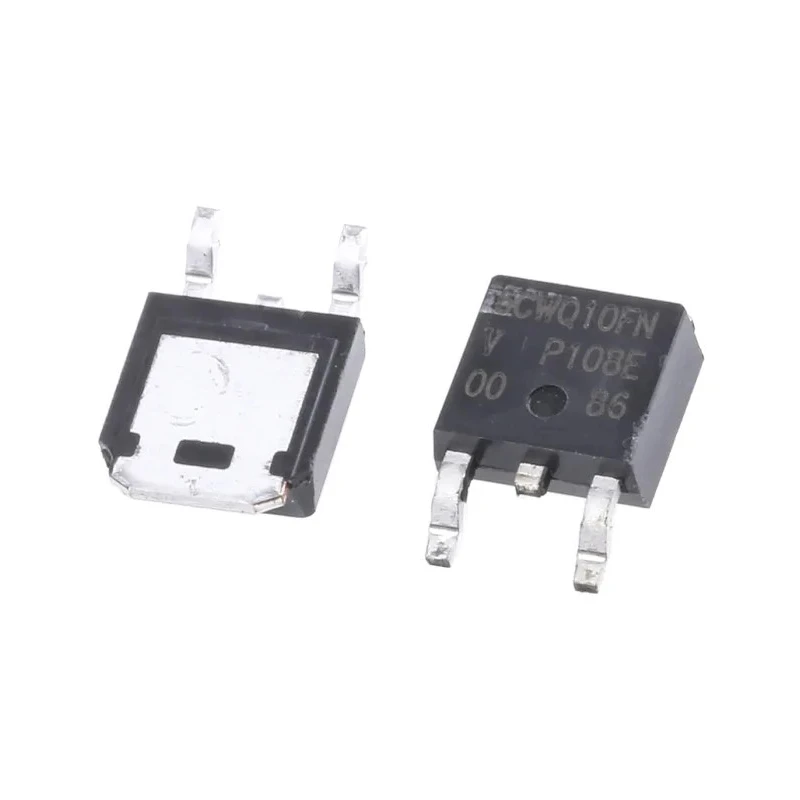

Vishay Schottky Diode 100V 7A, 3-Pin DPAK Package, Surface Mount, TO-252, Common Cathode VS-6CWQ10FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-6CWQ10FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VS-6 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 440A |
| Maximum Forward Voltage Vf | 0.63V |
| Vishay 100V 7A, Dual Schottky Diode, 3-Pin D-PAK 6CWQ10FNBrand | Vishay |
Key Features
- Schottky rectifier features low forward voltage drop and fast switching action.
- Maximum continuous forward current of 7A for demanding power applications.
- Peak reverse repetitive voltage rated at 100V ensures robust blocking capability.
- Integrated common cathode configuration in a surface mount TO-252 package.
- Reliable operation over a wide temperature range from -40°C to +150°C.
- Peak non-repetitive forward surge current up to 440A for transient conditions.
- Maximum forward voltage of 0.63V supports efficient power conversion.
- Three-pin DPAK layout optimizes space and thermal management.
Product Description
The Vishay VS-6CWQ10FN-M3 is a high-performance Schottky diode designed for efficient rectification tasks in industrial and electronic systems. With a maximum reverse repetitive voltage of 100V and a steady forward current rating of 7A, it is engineered for demanding power conversion circuits, supporting fast switching and reduced energy loss. Schottky technology delivers exceptionally low forward voltage drop and rapid reverse recovery time, making it ideal for applications such as switching power supplies, DC/DC converters, and protection circuits.
This diode features a common cathode configuration, packaged in a TO-252 DPAK form factor for reliable surface mounting. Its compact three-pin layout maximizes PCB space utilization while maintaining excellent thermal dissipation and electrical isolation. The VS-6CWQ10FN-M3 tolerates surges up to 440A and operates reliably in environments with temperatures ranging from -40°C to +150°C, ensuring stability under harsh industrial conditions.
Electrical performance is enhanced by a low maximum forward voltage of 0.63V, minimizing power loss and increasing efficiency. Peak reverse current is capped at 1mA, offering secure operation even in sensitive circuitry. The three-pin configuration makes integration into both single and dual diode designs straightforward for advanced rectifier solutions.
Use cases for this component span industrial power systems, laboratory instrumentation, manufacturing automation, and precision control modules. In addition, its high-frequency switching capability is well suited for commercial and embedded electronics, as well as HVAC and water treatment controls.
Dimensions include a length of 6.73mm, width of 6.22mm, height of 2.39mm, and diameter of 2.39mm, providing designers precise fitting for modern PCB layouts. Schottky rectification for efficient, fast, low-loss conversion.
Industrial suitability for power supplies, DC-DC converters, and protection circuits. Robust construction for operation across a wide thermal range. Compact surface-mount TO-252 package for PCB integration. High surge capability and reliable blocking voltage.
Browse more Schottky Diodes and rectifiers in the Electronics & Electricals category or view Vishay products for reliable industrial semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a maximum continuous forward current rating of 7A, suitable for demanding power applications.
This diode is packaged in a TO-252 DPAK style and is designed for surface mounting.
The diode has dimensions of 6.73mm in length, 6.22mm in width, and 2.39mm in height.
The peak non-repetitive forward surge current is rated at 440A, allowing it to handle transient conditions effectively.
It operates reliably over a wide temperature range from -40°C to +150°C.
It features a common cathode configuration, which is beneficial for various circuit designs.
This diode has a pin count of 3, facilitating easy integration into various designs.
The country of origin for this diode is India.
