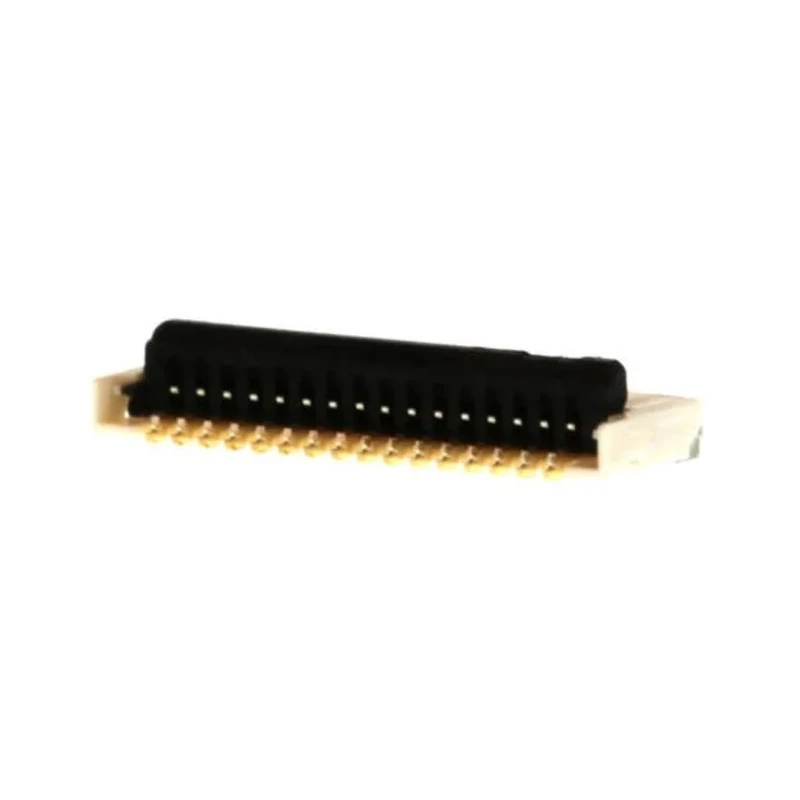

Molex 0.5 mm Pitch 16 Way Right Angle Female FPC Connector, Solder 503480-1600

Molex 503480-1600 is a 0.5 mm pitch 16 way right angle female FPC connector designed for reliable surface mounting in compact electronic devices. This Easy-On FFC/FPC Connector employs phosphor bronze contacts plated with gold over nickel to ensure excellent conductivity and corrosion resistance, with a solder termination type for secure electrical connections.

The connector's single-row dual contact position architecture and right angle orientation optimize PCB space and provide flexibility in installation. It withstands operating temperatures from -40°C up to 85°C, supported by a durable liquid crystal polymer housing, making it suitable for use in harsh environments.

Rated for a maximum current of 500mA and a voltage of 50Vrms, this connector is ideal for precise electronic circuits and automation equipment requiring dependable, secure connectivity. The integrated locking mechanism enhances connection stability during operation.

Applications include flat flexible cable interconnections in electronic assemblies, compact devices, and appliances where space constraints demand efficient connector design. The product originates from Korea, Republic Of, ensuring consistent manufacturing quality standards.

This connector features 16 contacts ensuring effective signal transmission. The pitch of 0.5 mm allows for high-density circuit design. Manufactured with phosphor bronze contacts for superior electrical conductivity. Right angle orientation provides space-saving on printed circuit boards.

Gold plating over nickel enhances durability and reliable mating performance. Constructed with a liquid crystal polymer housing for excellent thermal stability. Supports a maximum current rating of 500mA for stable electronic operation.

Operating temperature range from -40°C to 85°C caters to diverse environmental conditions. Includes a locking mechanism for secure connections in demanding applications. Suitable for electronic assemblies requiring surface mount solutions.

This connector is a robust choice for industrial, electronic, automation, and consumer electronic manufacturing environments. Browse more from Molex connectors and related electronic components at EnvMart.
