Bartec Control Station Switch SPDT Cutout Diameter 22mm IP67, IP66 Operating Temperature -55°C to 60°C 07-3513-10P74LGGN84

Bartec 07-3513-10P74LGGN84 Control Station Switch is a robust electrical control device designed for industrial and hazardous area applications requiring reliable switching solutions. Featuring an SPDT (single-pole double-throw) contact configuration, this control station supports multiple control and indication functionalities in one compact unit.

The device supports a cutout diameter of 22mm, suitable for standard panel mounting and offers high ingress protection with IP67 and IP66 ratings, ensuring resistance against dust ingress and water jets, making it ideal for harsh industrial environments.

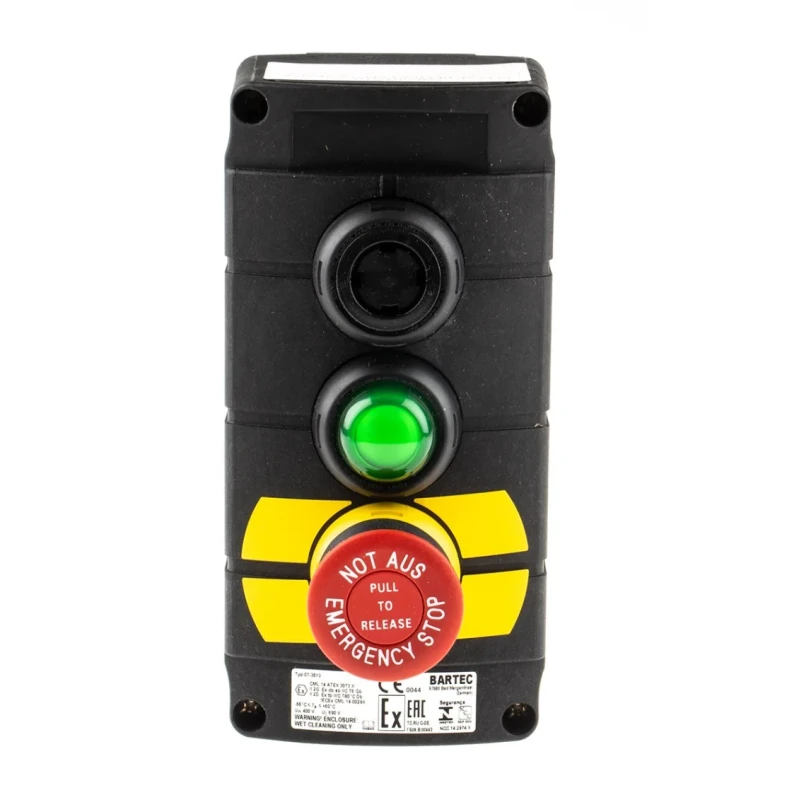

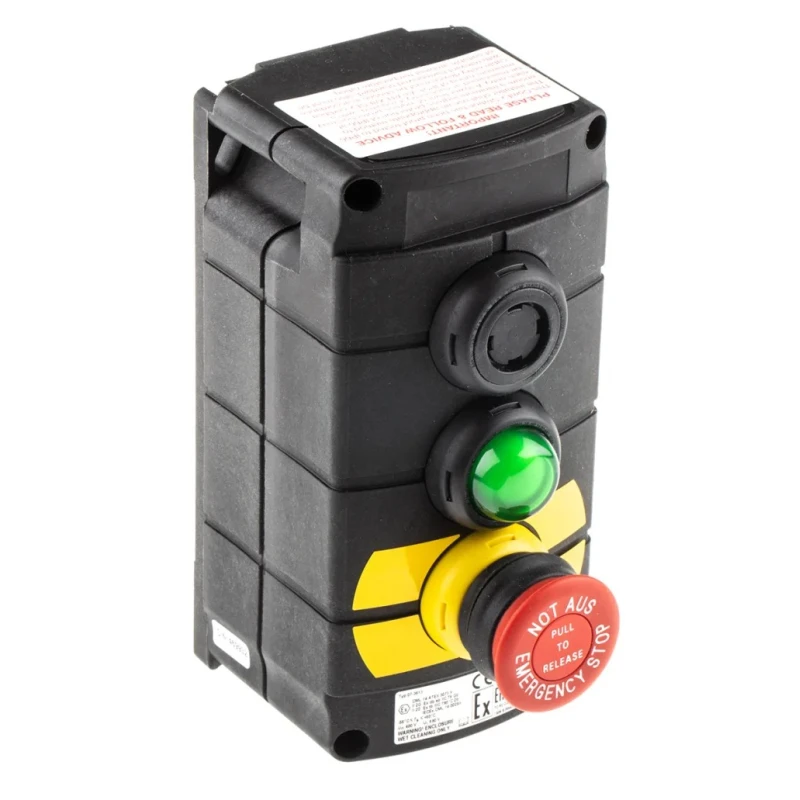

It operates reliably within a wide temperature range from -55°C to 60°C, suitable for extreme environmental conditions. The control station includes one pushbutton, one emergency stop button, and a multi-voltage green LED indicator lamp that enhances operational visibility and safety. The pushbutton system features red, green, yellow, and white color inserts to allow user-defined control configurations.

The product is compatible with the Bartec ComEx system, which provides flexible enclosure options for up to three control and indicating devices. Electrical connections can be made via plastic stuffing box glands or metal cable glands, with metal glands incorporating a screwed earth plate for safety grounding.

A maximum of two M20 cable glands can be installed, providing ample space for cable entry and wiring customization. This control station is certified for hazardous locations under ATEX certification II 2 G EEx e d IIC T6, making it suitable for explosive gas atmospheres in industrial plants, manufacturing processes, chemical plants, and similar high-risk environments.

Features single-pole double-throw (SPDT) contact configuration for versatile switching. Cutout diameter is 22mm for standard mounting applications. Rated for operation between -55°C minimum and 60°C maximum temperatures.

Equipped with one pushbutton, one emergency stop button, and a green multi-voltage LED indicator lamp. Pushbutton supports red, green, yellow, and white push-in inserts for color-coded control. IP67 and IP66 ingress protection ensures resistance to dust and water penetration.

Compatible with Bartec ComEx system enclosures offering flexibility for up to three control devices. Cable entry options include plastic stuffing box glands (M20 x 1.5, M25 x 1.5) or metal cable glands with earth plate mounting.

Maximum cable gland capacity of two M20 glands enhances wiring versatility. Certified for hazardous area use with ATEX approval II 2 G EEx e d IIC T6 for explosive atmospheres.

This control station switch is suitable for use in industrial automation, manufacturing plants, chemical processing, water treatment, and hazardous area control systems. It delivers reliable operations in demanding environments while adhering to safety standards.
