Bartec Momentary Control Station Switch, Thermoplastic Enclosure, 2 NO Contact Configuration, 1 Cutout, IP66 07-3511-10K02
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bartec |
| Length | 50mm |
| Model | 07-3511-10K02 |
| Depth | 42.5mm |
| IP Rating | IP66, IP67 |
| Width | 30mm |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 2 NO |
| Minimum Operating Temperature | 25°C |
| Terminal type | Screw |
| Enclosure Material | Thermoplastic |
| Hazardous Area Certification | ATEX |
| Cutout Diameter | 22mm |
| Push Button Actuation | Momentary |
| Push Button Material | Plastic |
| Push Button Colour | Black |
| Number of Cutouts | 1 |
| Enclosure Colour | Black |
| Maximum amount of cable clands | two off M20 |
Key Features
- The switch features a robust thermoplastic black enclosure ensuring durability.
- It provides 2 normally open (2 NO) contact configuration for reliable control operations.
- Rated for protection class IP66 and IP67 for use in harsh environments.
- Push button is black with plastic material, designed for momentary actuation.

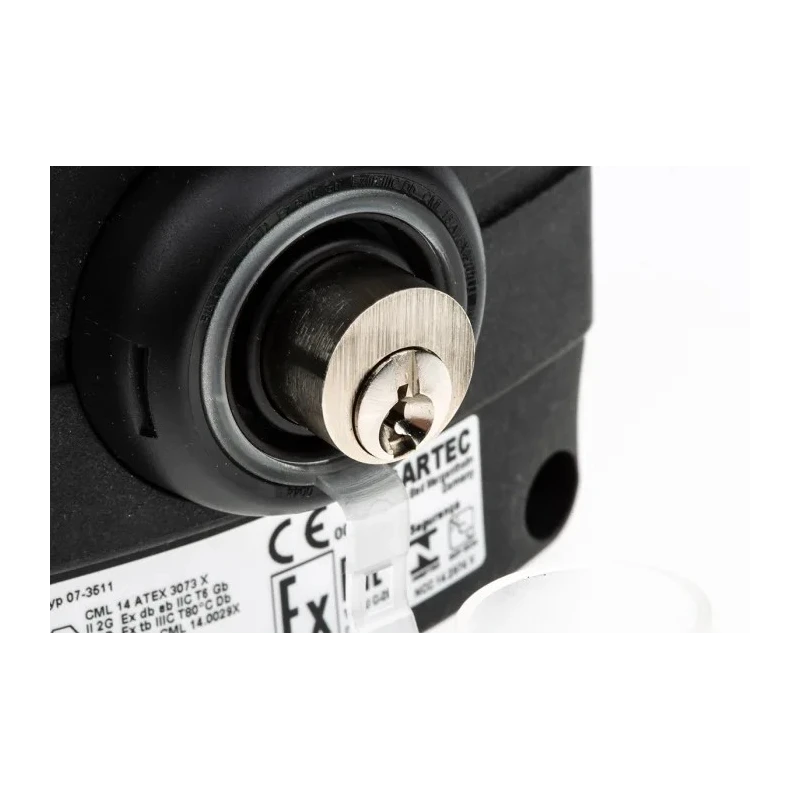

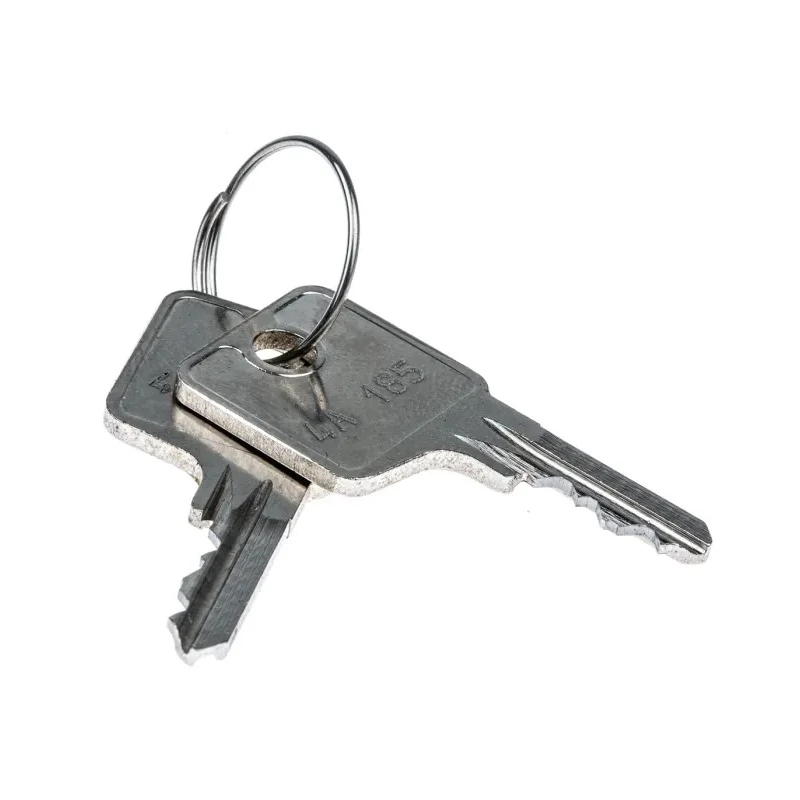

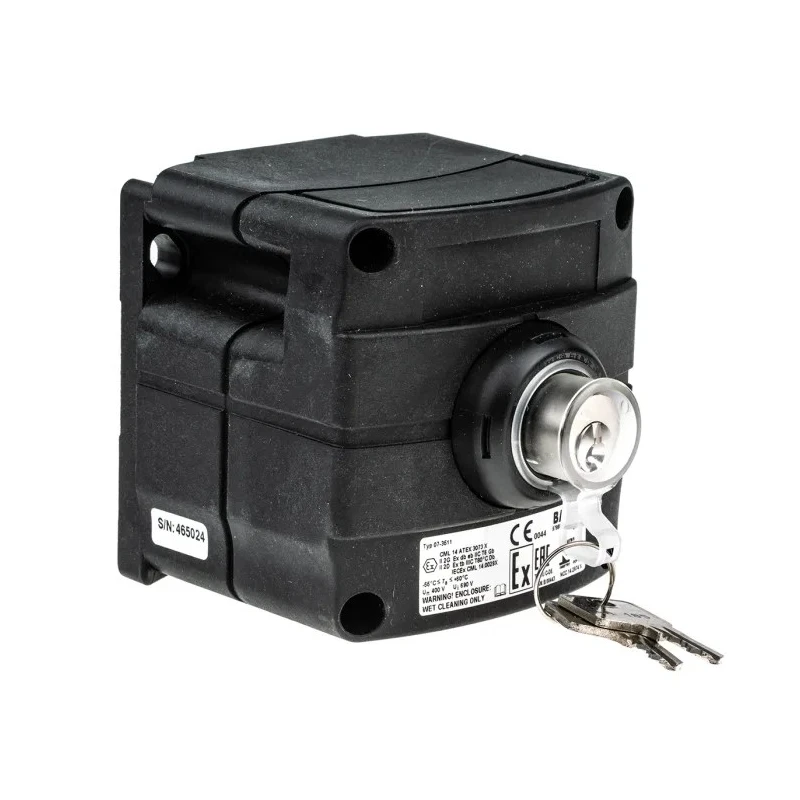

- Suitable for switching lighting and control circuits with key switch options in the Bartec ComEx system.
- Operates reliably in a temperature range from -25°C to 85°C.
- Equipped with screw-type terminals for secure electrical connections.

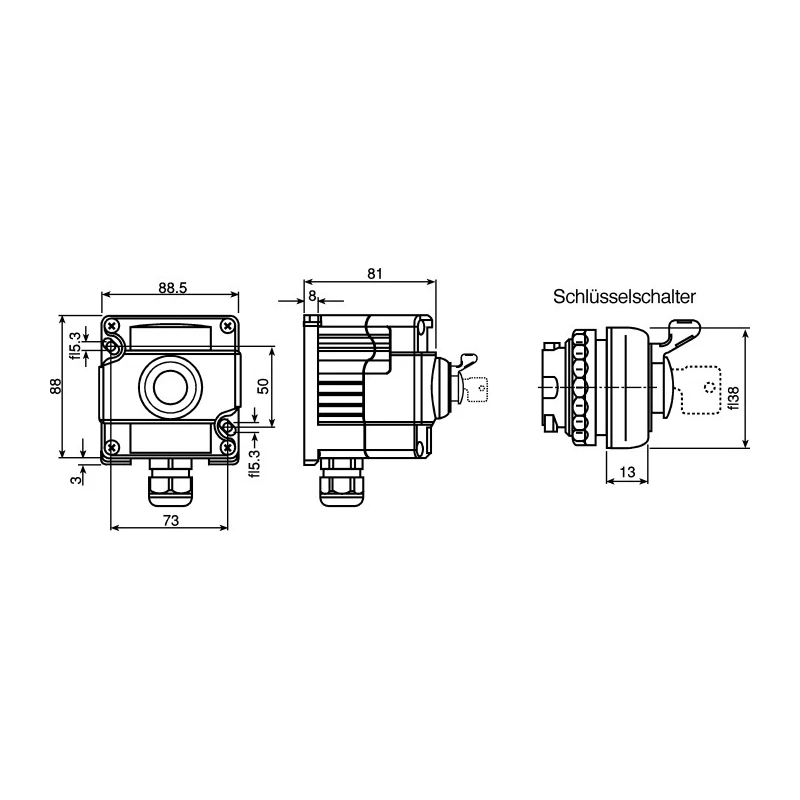

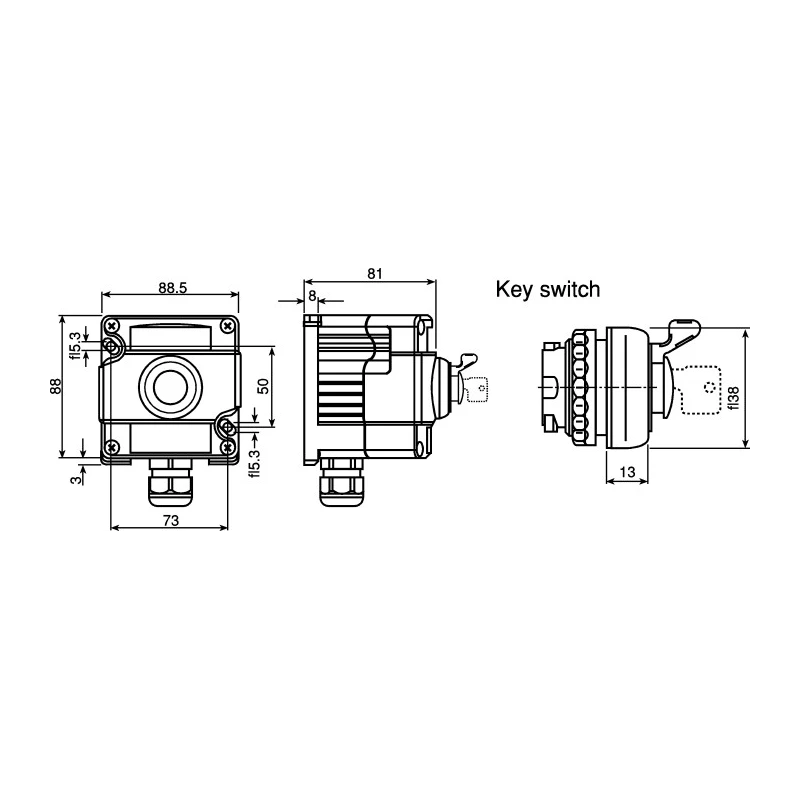

- Cutout diameter is 22 mm, with overall compact dimensions of 50 mm length, 30 mm width, and 42.5 mm depth.
Product Description

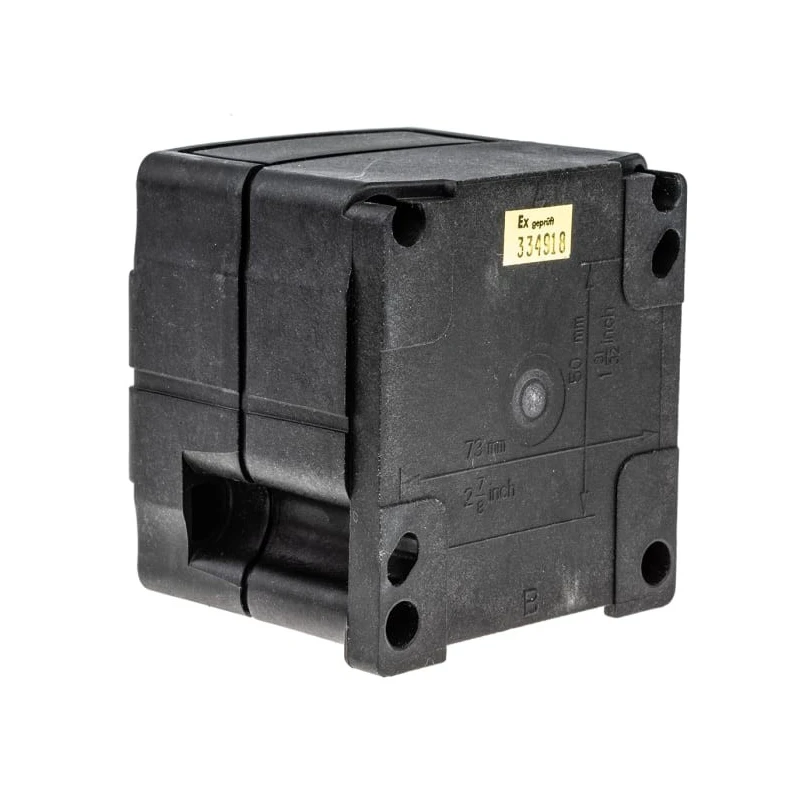

Bartec 07-3511-10K02 momentary control station switch features a single 22 mm cutout thermoplastic enclosure in black color designed for demanding industrial applications. It comprises two normally open (2 NO) contact switches suitable for momentary actuation through a black plastic push button.
This control station switch meets IP66 and IP67 ingress protection ratings, making it resistant to dust and water, suitable for harsh industrial environments requiring reliable and safe operation. It supports switching of lighting and control circuits, with added flexibility through the Bartec ComEx system allowing configurable enclosures and multiple device integration.
Operating temperature ranges from -25°C to 85°C, ensuring stable performance across diverse conditions. The enclosure dimensions are 50 mm in length, 30 mm in width, and 42.5 mm in depth, providing a compact profile while maintaining robust construction.
The device carries ATEX hazardous area certification (II 2 G EEx e d IIC T6) and includes screw terminal connections for secure wiring. Cable glands with plastic or metal options are compatible, enabling customized and safe electrical connections suitable for industrial automation, electrical panels, and hazardous location controls.
This product is manufactured in Germany, ensuring compliance with global industrial standards and quality assurance. The switch's thermoplastic enclosure offers high durability and environmental protection. Two normally open contacts ensure secure momentary switching control.
IP66 and IP67 rated for dust and water ingress protection in tough environments. Compact cutout diameter of 22 mm and overall compact dimensions optimize installation space. ATEX certification makes it suitable for hazardous and explosive atmospheres.
Screw terminal wiring supports reliable and maintainable electrical connections. Compatible with Bartec ComEx system for modular control station setups. Operating temperature span accommodates various industrial temperature requirements.
Suitable for lighting circuit control, automation, and industrial electrical panels. German-built quality ensuring reliability and longevity. Explore EnvMart’s extensive selection of industrial control station switches and related automation components for your specific applications.
Explore more products in our Control Stations category.
