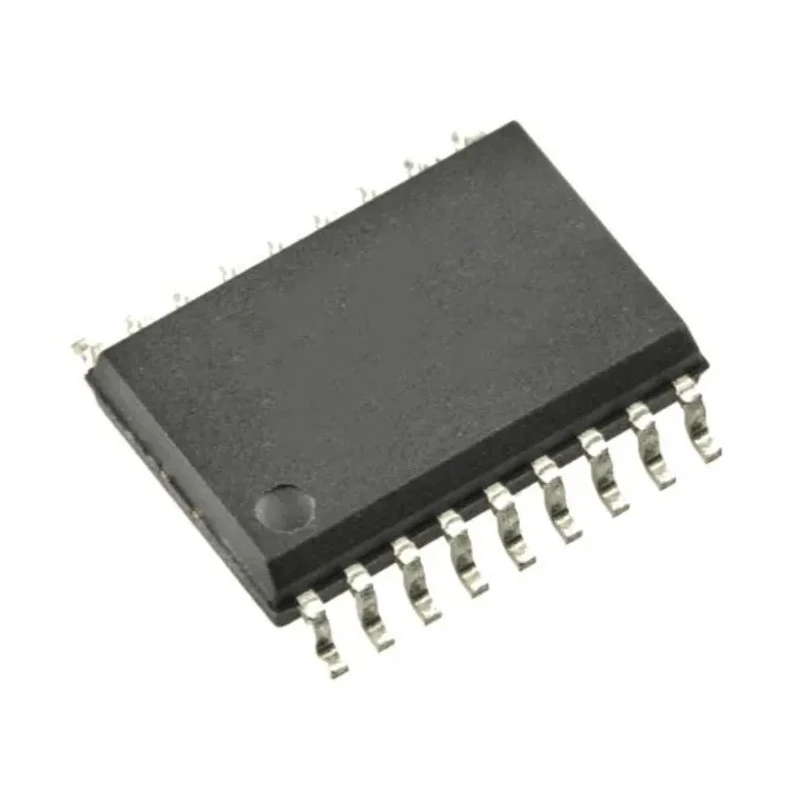

Toshiba Power Switch IC 8 Outputs 18-Pin PSOP TBD62083AFWG(Z,EHZ)

Free Delivery in India | Lowest Global Shipping Charges

Toshiba Power Switch IC 8 Outputs 18-Pin PSOP TBD62083AFWG(Z,EHZ)

Name: Toshiba Power Switch IC 8 Outputs 18-Pin PSOP TBD62083AFWG(Z,EHZ)
Brand: Toshiba
SKU: 151660
Price: 1.01 USD
Availability: InStock



Category Power Switch IC Brand Toshiba Condition New

Specifications

Country of Origin	China
Brand	Toshiba
Package	PG type P-DIP18-300-2.54-001
Model	TBD62083AFWG(Z,EHZ
Mount Type	Surface
Number of inputs	8
Series	TBD62083A
Power Rating	1.47W
Maximum Operating Temperature	85°C
Package Type	PSOP
Minimum Operating Temperature	-40°C
Operating Current	100μA
Number of outputs	8
Pin Count	18
Maximum Supply Voltage	25V
Minimum Supply Voltage	500mV
Switch On Resistance RdsOn	3.25Ω
Input voltage(output on)	TBD62083A series 2.5 V (MIN)
Input voltage(output off)	TBD62083A series 0.6 V (MAX)

Key Features

Features 8 built-in DMOS transistor circuits for high voltage and current applications.
High voltage withstand up to 50 V (max) for output circuits.
High current output capacity of up to 500 mA per channel.
Low switch on resistance of 3.25 Ω ensuring efficient power switching.
Wide operating temperature range from -40°C to 85°C for various environments.
Low operating current of 100 μA to minimize power consumption.
Surface mount PSOP package with 18 pins for compact PCB design.
Designed with clamp diodes for switching inductive loads built into each output.

Product Description

Toshiba TBD62083AFWG(Z,EHZ) is a high-performance Power Switch IC featuring 8 outputs integrated into an 18-Pin PSOP package, suitable for various electronic and industrial applications requiring power management. It contains DMOS transistor arrays with built-in clamp diodes to safely switch inductive loads, providing reliable operation in demanding environments.

The device supports high voltage output with maximum VOUT of 50 V and can handle up to 500 mA current per channel. This ensures it can operate well within industrial, consumer electronics, and automotive auxiliary power circuits.

The low switch on resistance of 3.25 ohms helps reduce power loss and heat generation, making it efficient for continuous power switching requirements. It operates with a low supply voltage threshold starting at 500 mV and consumes minimal operating current (100 μA), enabling power-saving designs.

Its robust temperature range from -40°C to 85°C extends usability to harsh industrial and outdoor applications. The surface mount PSOP 18-pin package facilitates modern compact PCB layouts, suitable for mass production and assembly.

Includes 8 DMOS transistor circuits integrated with clamp diodes. Maximum output voltage rating of 50 V ensures compatibility with high voltage loads. Output current capacity of 500 mA per channel supports medium power switching tasks.

Surface mount package type PSOP for efficient mounting and space savings. Wide temperature range supports diverse environmental conditions. Low operating current reduces overall system power consumption. Minimum supply voltage requirement as low as 500 mV for broad power supply compatibility.

This Toshiba Power Switch IC is ideal for applications in industrial electronics, power management modules, and embedded systems requiring reliable and efficient high voltage and current power switching components. It meets the needs of power control in consumer electronics, automotive, and general industrial equipment.
