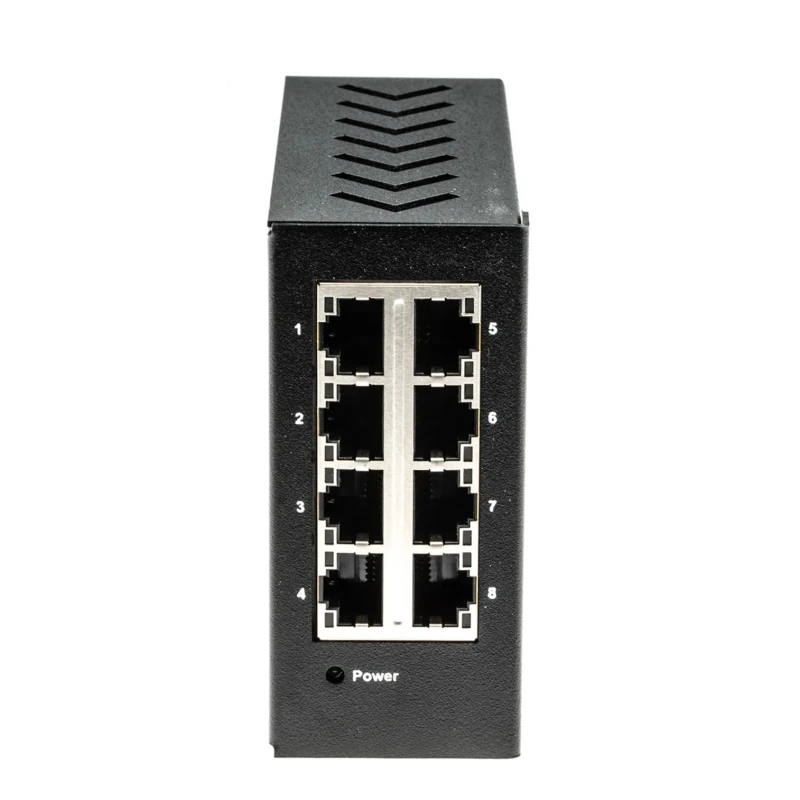

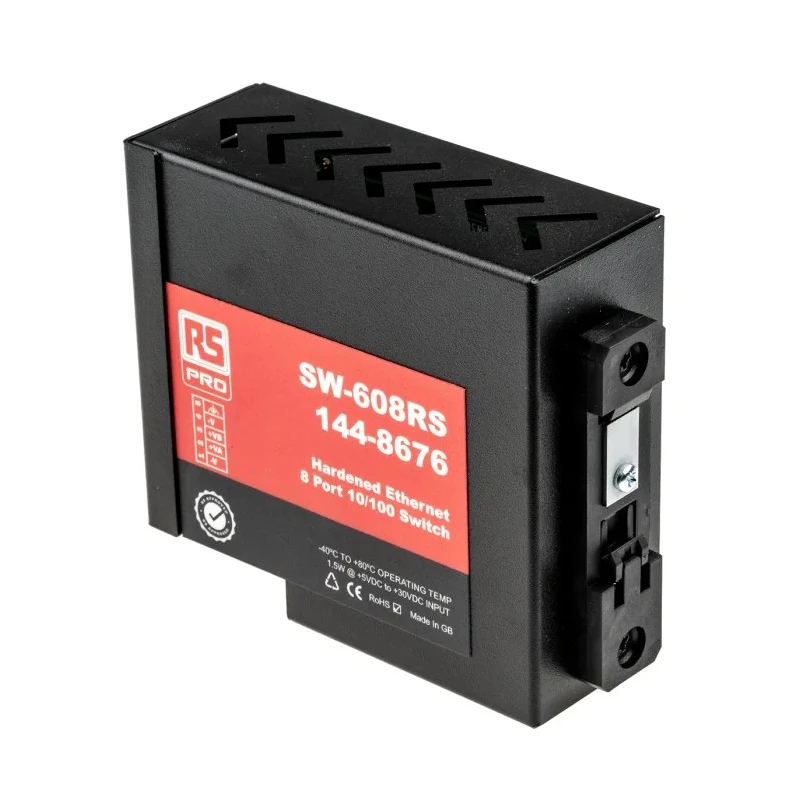

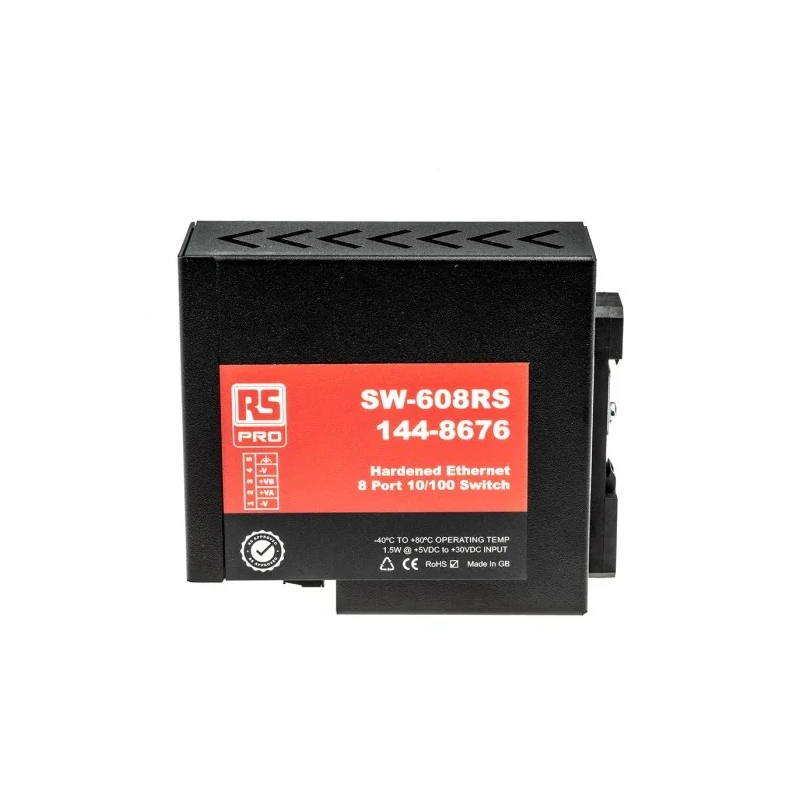

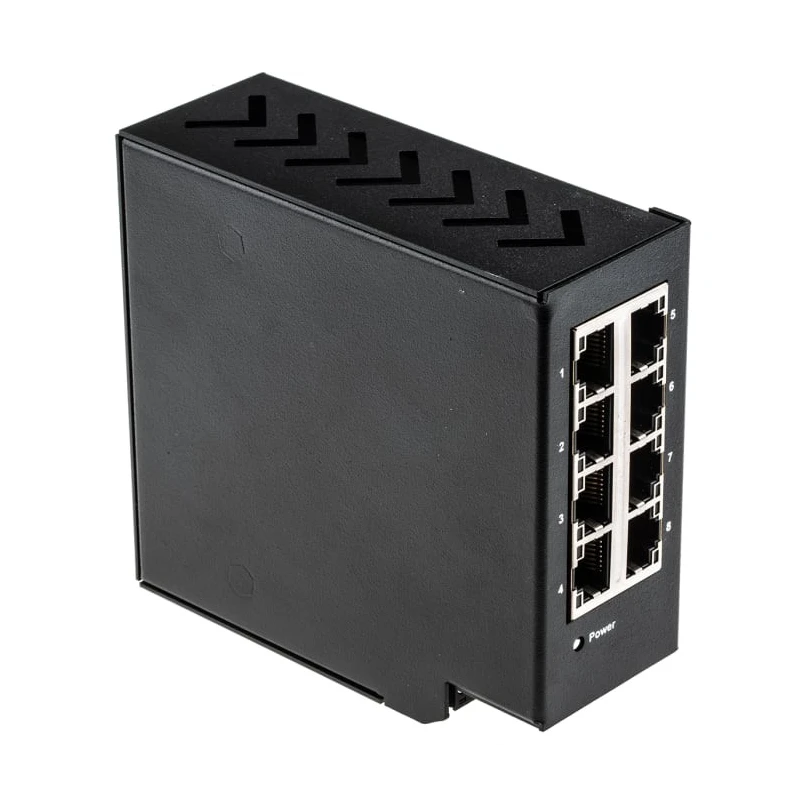

RS PRO Unmanaged 8 Port 10/100 Mbps Ethernet Switch, DIN Rail Mount, Metal Case 144-8676

RS PRO 144-8676 Unmanaged 8 Port Ethernet Switch provides hardened industrial-grade networking with 10/100 Mbps speeds. Designed for robust performance on factory floors, vehicles, and marine applications, this switch ensures reliable communication between multiple machines.

Constructed with a durable powder coated aluminium case and die-cast aluminium end covers, it offers IP-20 rated metal housing for protection in harsh environments. The integrated steel DIN Rail mount with grounding support ensures a compact footprint optimized for minimal cabinet space.

It features 8 galvanically isolated RJ45 ports equipped with auto-sensing for 10/100 Mbps speeds and Auto MDIX to eliminate crossover cable issues. The device runs on a dual input redundant power supply supporting unregulated +5V to +30V DC with reverse polarity protection, further enhancing reliability.

Operating in an industrial temperature range from -40°C to +80°C, this Ethernet switch delivers stable performance under extreme conditions without requiring software installation. Power consumption is optimized at 1.5 Watts max (300 mA @ 5VDC, 50 mA @ 30VDC), making it energy efficient.

The 144-8676 measure 115 x 99 x 41 mm in size and weigh 0.37 kg, making it a compact and lightweight solution. The removable power terminal block with numbered pins simplifies wiring and maintenance.

Typical applications include automation industries, energy sectors, machinery and robotics, transportation, and marine environments where reliable Ethernet connectivity is critical.

Features 8 RJ45 autosensing Ethernet ports supporting 10/100 Mbps speeds. Constructed with powder coated aluminium case and die-cast aluminium end covers. Equipped with integrated steel DIN Rail mount and grounding for compact cabinet installation.

Supports wide operating temperature range from -40°C to +80°C suitable for industrial use. Dual redundant power inputs accept unregulated +5V to +30V DC with reverse polarity protection. No software required; plug and play functionality simplifies network expansion.

IP-20 rated metal housing with removable screw terminal block for easy wiring. Optimized power consumption at 1.5 Watts max providing energy efficient operation. Typical weight of 0.37 kg and compact dimensions of 115 x 99 x 41 mm.

Ideal for automation, energy, machinery robotics, transportation industries, factory floors, vehicles, and marine environments. Browse the Electronics & Electricals category for more industrial-grade Network Switches and RS PRO products at EnvMart.
