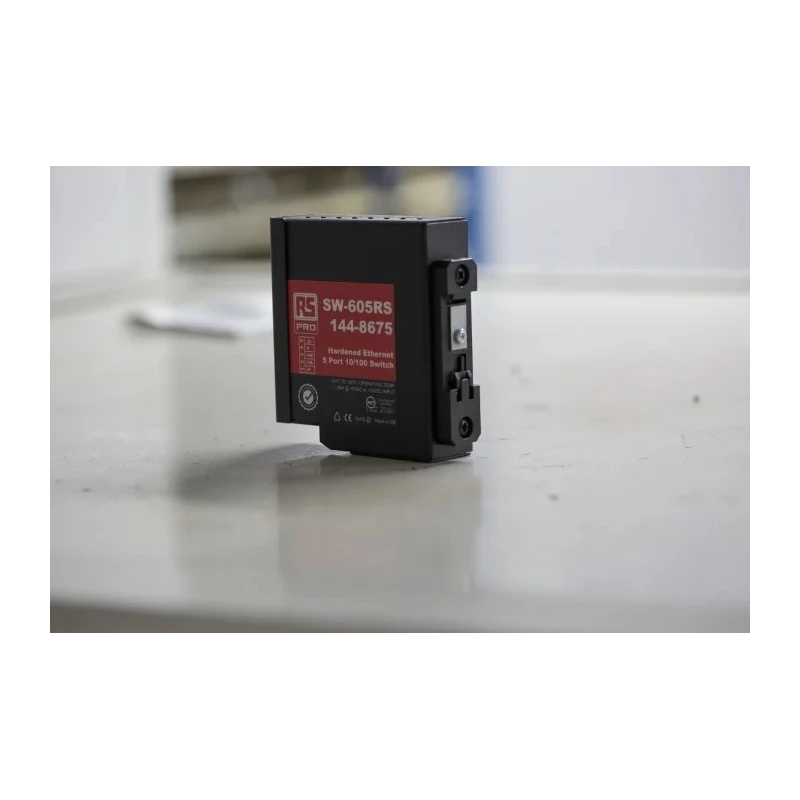

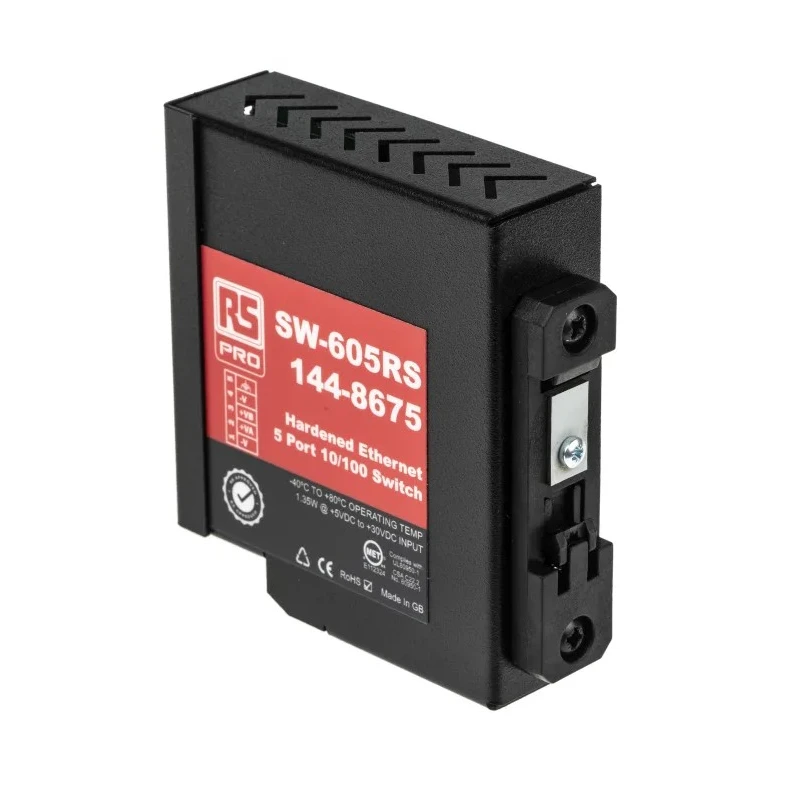

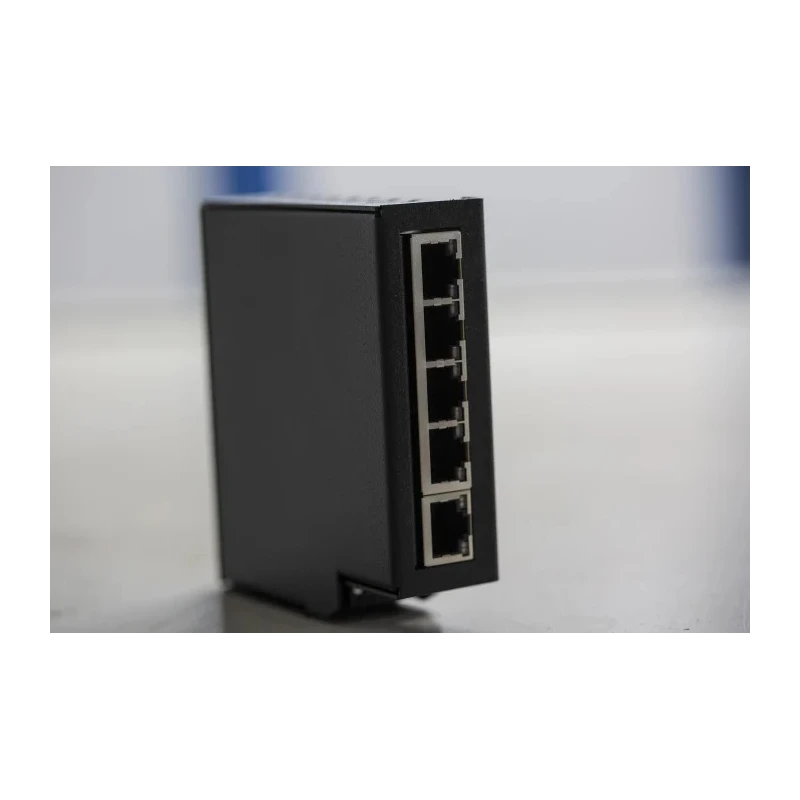

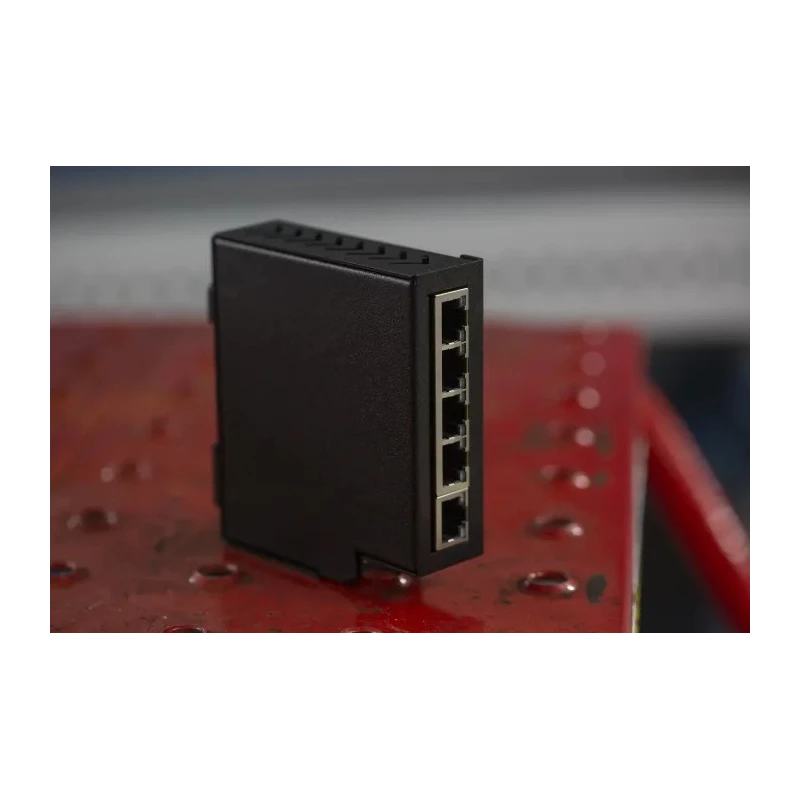

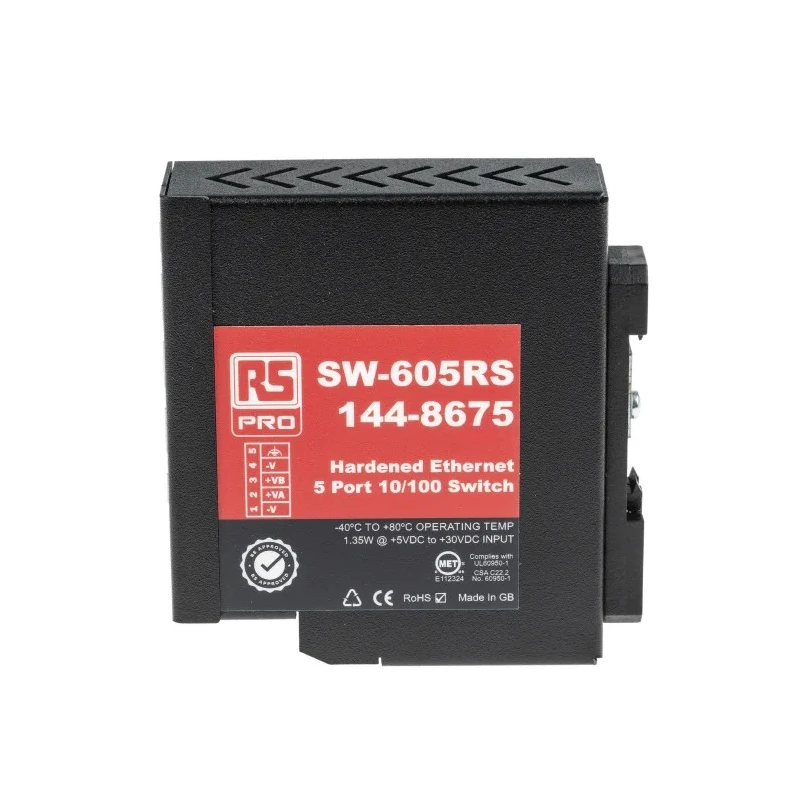

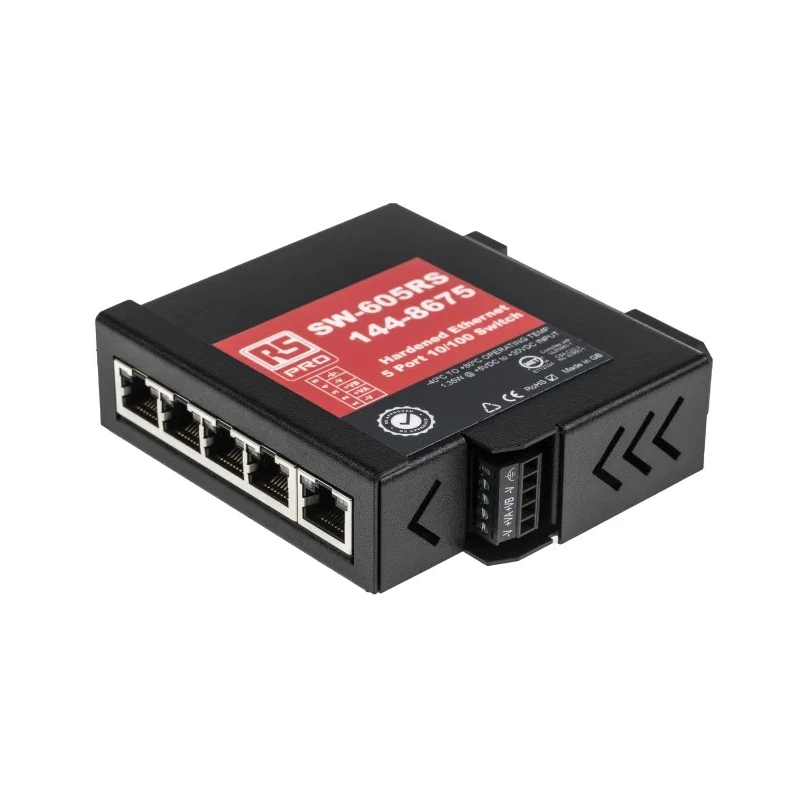

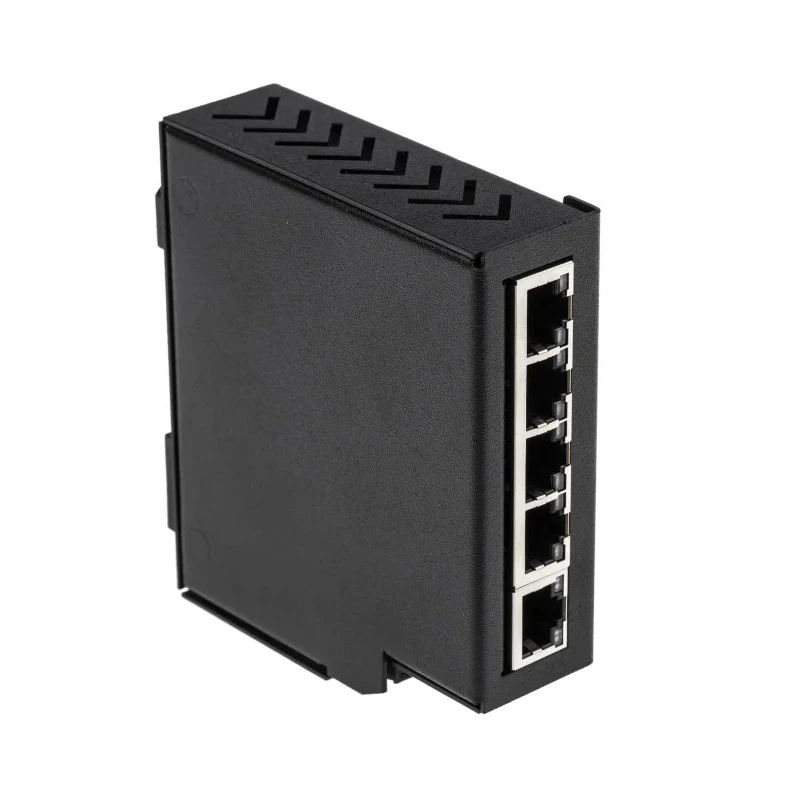

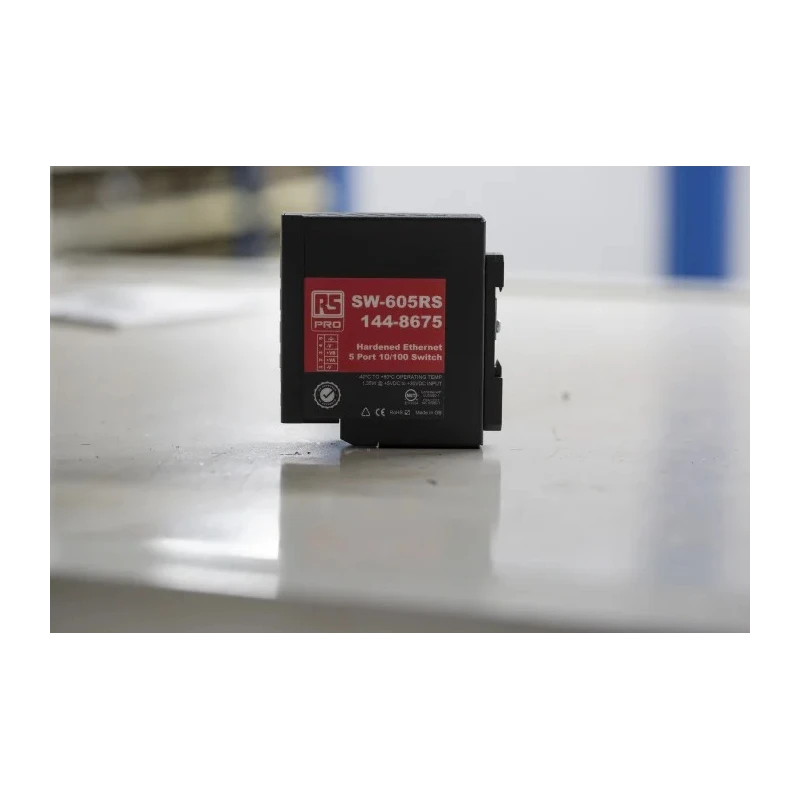

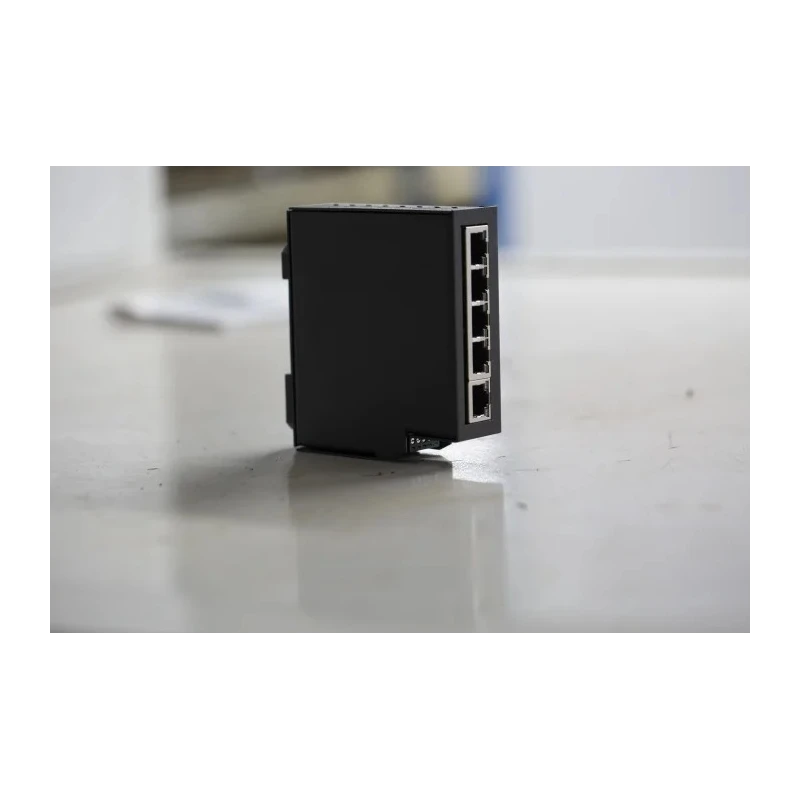

RS PRO Unmanaged 5 Port Ethernet Switch 10/100 Mbps, DIN Rail Mount, Metal Case 144-8675

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Unmanaged 5 Port Ethernet Switch 10/100 Mbps, DIN Rail Mount, Metal Case 144-8675

Name: RS PRO Unmanaged 5 Port Ethernet Switch 10/100 Mbps, DIN Rail Mount, Metal Case 144-8675
Brand: RS PRO
SKU: 146949



Category Network Switch Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Dimensions	99x95x29 mm
Height	99mm
Model	144-8675
Depth	95mm
Gross Weight	0.27 kg
Width	29mm
Housing	IP-20 rated metal case with easy wire removable screw terminal block
Switch Type	Unmanaged
Ethernet Ports	5 x RJ45 jack, 10/100Mhz autosensing, crossover auto sensing (Auto MDIX)
Number Of Ports	5
Interfaces	Ethernet Switch - allows several machines to be connected at one time
Standards/Approvals	RoHS, CE
Desktop/Rack Mount	DIN Rail
Number of SFP Ports	0
Number of RS-485 Ports	0
Pin 1	-V
Pin 2	+VA
Pin 3	+VB
Pin 4	-V
Pin 5	Functional Earth
RS PRO Unmanaged 5 Port Ethernet SwitchBrand	RS PRO
Weidmüller IE-SW-EL05-5TX Unmanaged 5 Port Network SwitchBrand	Weidmüller

Key Features

This unmanaged switch supports five RJ45 Ethernet ports for multi-device connectivity.
It features a robust metal IP-20 rated case suitable for industrial environments.
Supports autosensing 10/100 Mbps Ethernet speeds with Auto MDIX crossover detection.
Equipped with removable screw terminal block for easy wiring and dual redundant power inputs from +5V to +30V DC.
Operates in wide industrial temperature range from -40°C to +80°C.
No software configuration is required - plug and play functionality.
Compact design with DIN rail mount for efficient cabinet space utilization.
Power consumption is low at 1.35 Watts max.

Product Description

RS PRO 144-8675 Unmanaged 5 Port Ethernet Switch is a compact industrial-grade unmanaged Network Switch providing 10/100 Mbps Ethernet connectivity. It is designed for reliable operation in harsh industrial environments, featuring a robust IP-20 rated metal case and DIN rail mount compatibility. The device supports five galvanically isolated RJ45 Ethernet ports with autosensing capabilities for 10/100 Mbps speeds and Auto MDIX crossover to simplify cabling requirements.

This switch is equipped with dual redundant power inputs supporting unregulated DC voltages from +5V to +30V, featuring removable screw terminal blocks with numbered pins for easy and reliable wiring. The wide operating temperature range of -40°C to +80°C enables deployment in extreme conditions including factory floors, automotive, marine, and transportation sectors.

No software configuration is necessary, as the switch operates on plug-and-play principle to provide instant network connectivity. Power consumption is minimized at just 1.35 Watts, making it energy efficient for continuous industrial use. Its compact form factor and DIN rail mounting make it ideal for integration into control cabinets and automated systems where space is at a premium.

This unmanaged switch supports five RJ45 Ethernet ports for multi-device connectivity. Metal IP-20 rated housing ensures durability and safety in industrial settings. Supports autosensing Ethernet speeds at 10/100 Mbps with Auto MDIX feature.

Dual redundant power inputs accepting +5V to +30V DC supply with reverse polarity protection. Wide industrial operating temperature range from -40°C to +80°C. Plug-and-play operation requires no user configuration or software.

DIN rail mount compatible with a compact footprint suitable for cabinet installations. Low power consumption suitable for continuous operation in automation and industrial control environments.

Typical applications include automation industries, energy sector, machinery and robotics, transportation, marine, and factory floor networking. This RS PRO Ethernet switch is engineered to deliver reliable and robust network connectivity where industrial-grade hardware is essential.
