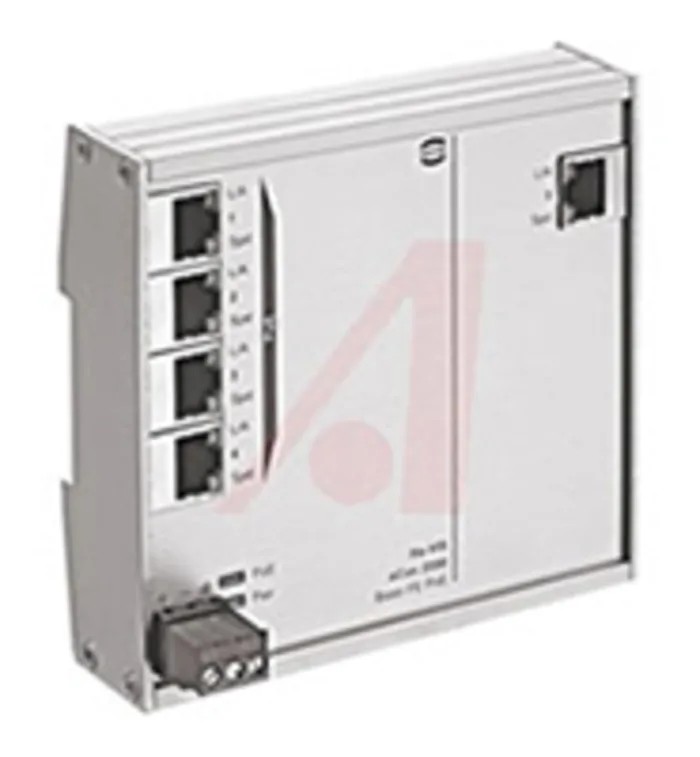

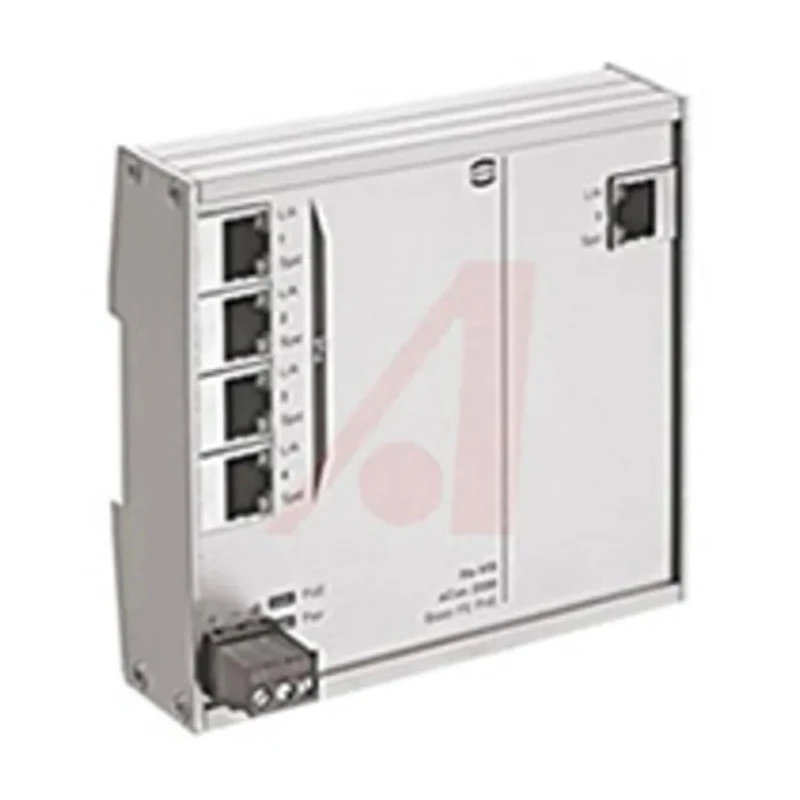

HARTING Unmanaged 5 Port Ethernet Switch Power Over Ethernet 24020050020

HARTING 24020050020 unmanaged 5 port Ethernet switch with Power Over Ethernet delivers a compact and reliable networking solution tailored for industrial environments and automation systems. Featuring a DIN rail mountable aluminium housing with a flat form factor, this switch is optimized for installations in space-restricted or hard-to-reach locations while maintaining robust Ethernet connectivity.

The device offers five RJ-45 ports supporting 10/100Mbps data transfer rates using IEEE 802.3 Ethernet switching architecture. As an unmanaged switch, it provides a straightforward plug & play setup with features like auto-negotiation, auto-polarity, and auto-MDI(X) that simplify installation and eliminate manual network configuration needs.

The switch supports Power Over Ethernet (PoE), enabling simultaneous data and power transmission over a single cable, thus facilitating the powering of PoE-enabled devices such as IP cameras, wireless access points, and industrial controllers. It is equipped with reverse polarity and surge protection and accepts power supplies of both 24V and 48V DC to accommodate various industrial power configurations.

Constructed with an anodised aluminium housing, the switch is designed for a commercial temperature range of 0°C to +55°C and an industrial temperature range extending from -40°C to +70°C, ensuring operation under harsh environmental conditions. The compact dimensions - 120mm (W) x 113.5mm (H) x 48.2mm (D) - make it ideal for integration within machine control cabinets, railway vehicle networks, and other industrial infrastructure.

HARTING 24020050020 conforms to FCC, UL, CSA, and CE standards, assuring safety, quality, and electromagnetic compatibility necessary for demanding applications spanning industrial network infrastructure, machinery and robotics, automation, transportation, wind and solar energy, and shipbuilding.

Equipped with 5 RJ-45 Ethernet ports supporting 10/100Mbps speeds. Unmanaged switch type ensures straightforward plug & play setup. Supports Power Over Ethernet (PoE) for remote device powering. Compact design with 120mm width, 113.5mm height, and 48.2mm depth for space-restricted environments.

Complies with FCC, UL, CSA, and CE standards for industrial safety and reliability. Durable anodised aluminium housing designed for industrial temperature range from -40°C to +70°C. Features auto-negotiation, auto-polarity, and auto-MDI(X) to simplify installation.

Power supply compatible with 24V and 48V DC sources. Designed for extended transfer length up to 100 meters via twisted pair Cat. 5 cables. Energy-efficient Ethernet technology reduces power consumption.

This HARTING Ethernet switch is an ideal choice for industrial applications requiring dependable, energy-efficient, and space-saving network connectivity with PoE capabilities. Browse more Network Switches and connectivity solutions in EnvMart for comprehensive industrial networking needs.
