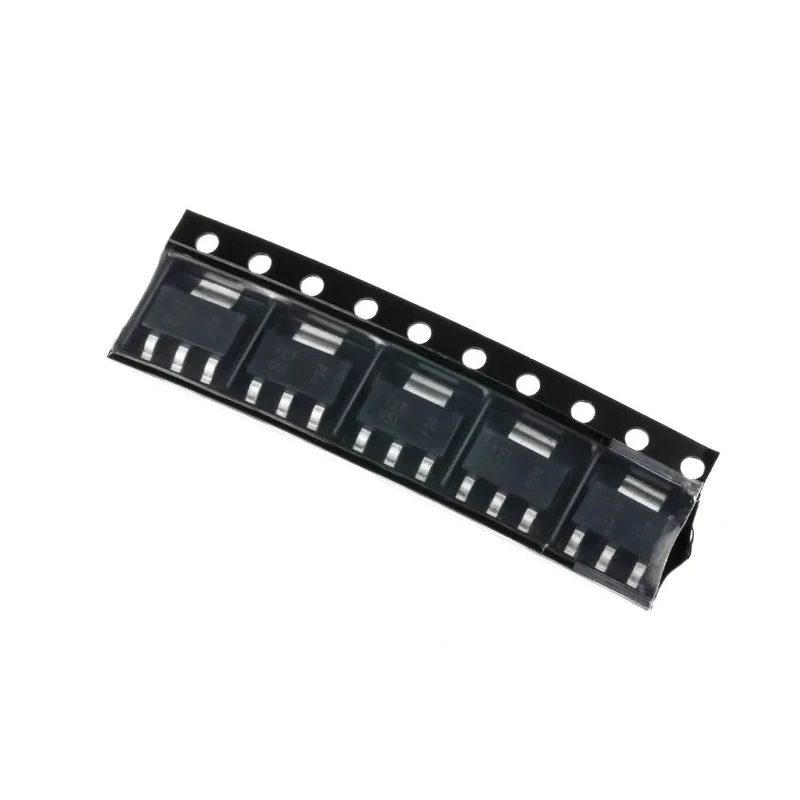

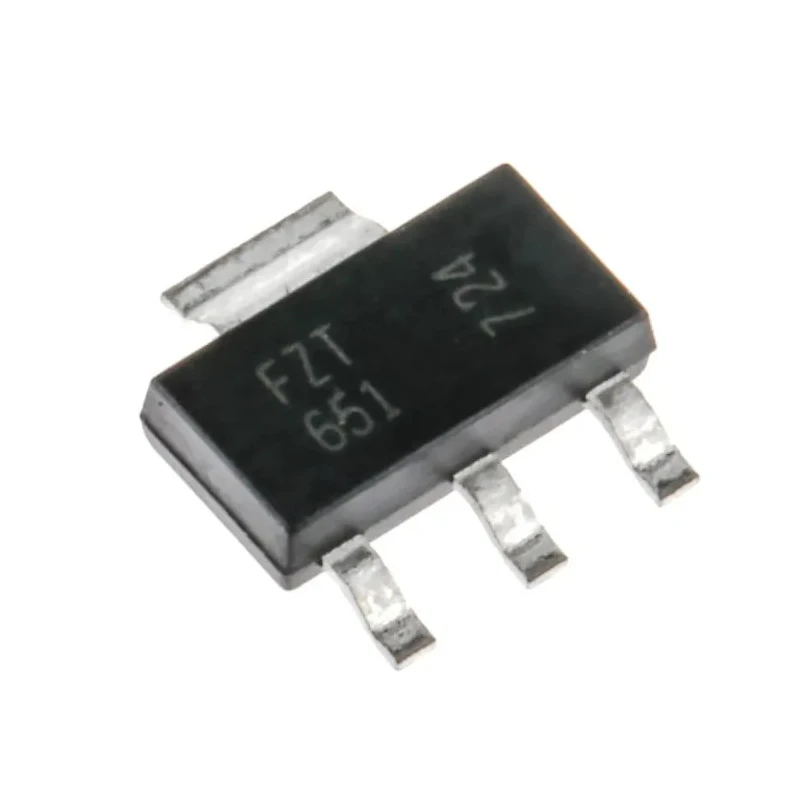

DiodesZetex NPN Transistor 3 A 60 V Surface Mount SOT-223 4-Pin FZT651TA

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex NPN Transistor 3 A 60 V Surface Mount SOT-223 4-Pin FZT651TA

Name: DiodesZetex NPN Transistor 3 A 60 V Surface Mount SOT-223 4-Pin FZT651TA
Brand: DiodesZetex
SKU: 151222
Price: 0.38 USD
Availability: InStock



Category Bipolar Transistors Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.7mm
Length	6.7mm
Model	FZT651TA
Width	7.3mm
Mount Type	Surface
Series	FZT651
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Pin Count	4
Maximum Collector Emitter Voltage Vceo	60V
Minimum DC Current Gain hFE	40
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	80V
Automotive Standard	AEC-Q100, AEC-Q101, AEC-Q104, AEC-Q200
Maximum Power Dissipation Pd	2W
Maximum DC Collector Current Idc	3A
Transistor Configuration	Single
Maximum Transition Frequency ft	175MHz
onsemi NSV40301MZ4G NPN Transistor, 3 A, 40 V, 3 + Tab-Pin SOT-223Brand	ON Semiconductor

Key Features

Capable of handling maximum DC collector current of 3 amperes.
Maximum collector-emitter voltage rating of 60 volts ensures robust operation.
4-pin SOT-223 package designed for surface mount technology applications.
High transition frequency of 175 MHz suitable for high-speed switching.
Operating temperature range from -55°C to 150°C for versatile environments.
Maximum power dissipation of 2 watts supports moderate power requirements.
NPN transistor polarity with single transistor configuration.
Minimum DC current gain (hFE) of 40 ensures adequate amplification.

Product Description

DiodesZetex FZT651TA NPN Transistor is a general purpose transistor designed for power and switching applications. It supports a maximum DC collector current of 3 A and can withstand collector-emitter voltages up to 60 V. The transistor features a 4-pin SOT-223 package intended for surface mount mounting, allowing for compact PCB designs.

This transistor offers a maximum transition frequency of 175 MHz, making it suitable for high-frequency switching operations. It operates reliably over a wide temperature range from -55°C to 150°C, accommodating demanding industrial and automotive environments.

With a maximum power dissipation rating of 2 W and a minimum current gain of 40, the FZT651TA ensures consistent performance and moderate power handling. It also meets multiple automotive quality standards such as AEC-Q100, AEC-Q101, AEC-Q104, and AEC-Q200, confirming its suitability for automotive electronics.

Physical dimensions are compact, with a length of 6.7 mm, width of 7.3 mm, and height of 1.7 mm, making it ideal for space-constrained applications. Capable of handling maximum DC collector current of 3 amperes. Maximum collector-emitter voltage of 60 volts.

4-pin SOT-223 package designed for surface mounting. High transition frequency of 175 MHz. Temperature range from -55°C to 150°C. Maximum power dissipation at 2 watts. NPN transistor with single configuration. Minimum DC current gain of 40.

Compact size: 6.7 x 7.3 x 1.7 mm. Automotive standard compliant (AEC-Q100, AEC-Q101, AEC-Q104, AEC-Q200).

This transistor is widely used in industrial, automotive, electronic, and power switching applications where robust performance and reliability are essential. It is suitable for circuit board designs requiring low profile, surface-mounted components with high current and voltage ratings.

Explore a wide range of semiconductor components and transistors on EnvMart to find the perfect solution for your electronic designs and manufacturing projects.
