Infineon P-Channel MOSFET 360 mA 100 V Enhancement Mode Surface Mount SC-59 3-Pin BSR316PH6327XTSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon P-Channel MOSFET 360 mA 100 V Enhancement Mode Surface Mount SC-59 3-Pin BSR316PH6327XTSA1

Name: Infineon P-Channel MOSFET 360 mA 100 V Enhancement Mode Surface Mount SC-59 3-Pin BSR316PH6327XTSA1
Brand: Infineon
SKU: 150335
Price: 0.25 USD
Availability: InStock



Category MOSFET Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.1mm
Length	3mm
Model	BSR316PH6327XTSA1
Width	1.6mm
Mount Type	Surface
Series	BSR316P
Maximum Operating Temperature	150°C
Package Type	SC-59
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q101
Channel Type	Type P
Maximum Continuous Drain Current Id	360mA
Maximum Drain Source Voltage Vds	100V
Maximum Drain Source Resistance Rds	2.2Ω
Channel Mode	Enhancement
Maximum Power Dissipation Pd	500mW
Typical Gate Charge Qg @ Vgs	5.3nC
Maximum Gate Source Voltage Vgs	20V
Forward Voltage Vf	-0.8V

Key Features

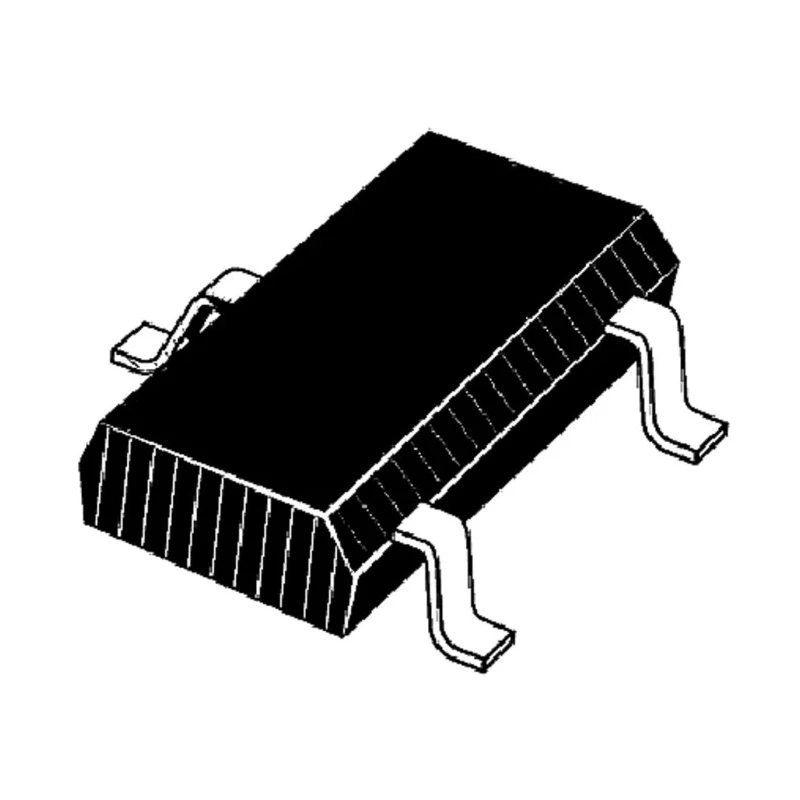

The device has a surface mount SC-59 package with 3 pins for compact PCB integration.
Maximum continuous drain current is 360 mA supporting low power switching applications.
Maximum drain source voltage of 100 V enables robust performance in automotive and consumer electronics.
Typically features a maximum power dissipation of 500 mW and typical gate charge of 5.3 nC at gate-source voltage.
It operates reliably in temperatures from -55°C up to 150°C for harsh environment use.
The device includes automotive standard AEC-Q101 certification ensuring quality for vehicle systems.
Low drain-source resistance of 2.2 Ω reduces conduction losses for efficiency.
Suitable for applications in DC-DC converters, motor control, e-mobility, notebooks, and onboard chargers.

Product Description

Infineon BSR316PH6327XTSA1 is a P-Channel MOSFET designed for efficient power switching and control in automotive and consumer electronics sectors. It features enhancement mode operation with a maximum continuous drain current of 360 mA and maximum drain-source voltage of 100 V, making it suitable for low power applications.

Housed in a compact 3-pin SC-59 surface mount package measuring 3 mm length, 1.6 mm width, and 1.1 mm height, this MOSFET facilitates compact PCB layouts. Its maximum power dissipation rating of 500 mW combined with a low typical gate charge of 5.3 nC enables effective switching with minimal energy loss.

Operating reliably over a wide temperature range from -55°C to 150°C and meeting the stringent automotive AEC-Q101 standard, the BSR316PH6327XTSA1 model is ideal for harsh environmental conditions encountered in automotive systems. The device's low maximum drain-source resistance of 2.2 Ω further enhances efficiency by reducing conduction losses.

Common target applications include automotive motor control, DC-DC power conversion, consumer electronics like notebooks, e-mobility platforms, and onboard chargers. Its Pb-free lead plating supports environmental compliance.

The device has a surface mount SC-59 package with 3 pins for compact PCB integration. Maximum continuous drain current of 360 mA supports low power applications. Maximum drain source voltage of 100 V suitable for automotive and consumer electronics.

Low maximum drain-source resistance of 2.2 Ω ensures efficient conduction. Enhancement mode operation with typical gate charge of 5.3 nC allows efficient switching. Meets automotive standard AEC-Q101 for reliability in vehicle systems.

Wide operating temperature range from -55°C to 150°C for harsh environments. Power dissipation rating of 500 mW supports low power dissipation requirements.

This Infineon MOSFET addresses key requirements for electronic power management in industrial, automotive, and consumer electronic sectors. Browse other semiconductor and power component options at EnvMart.
