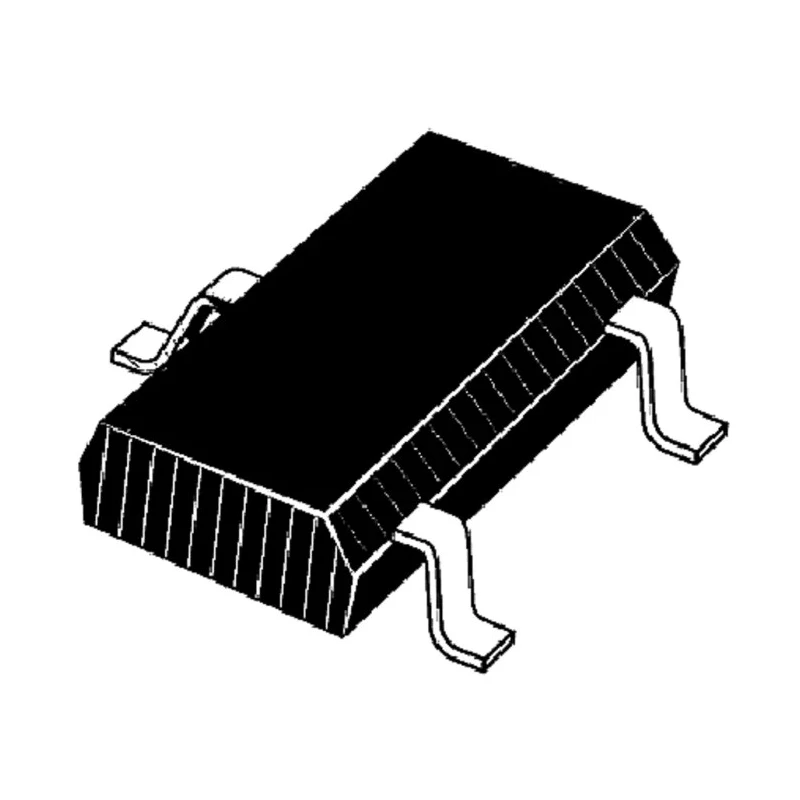

Infineon P-Channel MOSFET 140 mA 250 V Enhancement Mode 3-Pin SC-59 BSR92PH6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.1mm |
| Length | 3mm |
| Model | BSR92PH6327XTSA1 |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | BSR92P |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-59 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 140mA |
| Maximum Drain Source Voltage Vds | 250V |
| Maximum Drain Source Resistance Rds | 20Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 500mW |
| Typical Gate Charge Qg @ Vgs | 3.6nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | -0.8V |
Key Features
- Offers a maximum continuous drain current of 140 mA for low power applications.
- Maximum drain source voltage rating of 250 V supports high voltage switching.
- Packaged in 3-pin SC-59 surface mount package for compact PCB designs.
- Enhancement mode device with a forward voltage of -0.8 V and low gate charge of 3.6 nC at Vgs.
- Maximum power dissipation is 500 mW suitable for small signal applications.
- Operating temperature range from -55°C to 150°C for robust automotive use.
- Meets automotive standard AEC-Q101 ensuring reliability in automotive environments.
Product Description
Infineon BSR92PH6327XTSA1 is a P-Channel MOSFET featuring enhancement mode operation with a maximum continuous drain current of 140 mA and a maximum drain source voltage of 250 V. Packaged in a compact 3-pin SC-59 surface mount package, this device is well-suited for compact, automotive, and consumer electronic circuitry requiring efficient switching performance with low gate charge.
The MOSFET offers a maximum power dissipation of 500 mW and a forward voltage of -0.8 V, making it suitable for power-sensitive applications. Its robust thermal operating range from -55°C to 150°C and compliance with the AEC-Q101 automotive standard affirm the device's reliability under harsh conditions.
Target applications include automotive electronics, DC-DC converters, e-mobility solutions, motor control, notebooks, and onboard chargers where small signal power switching is needed. This MOSFET integrates Infineon's OptiMOS™ innovative design to deliver high-quality performance and reduced on-state resistance.
The compact SC-59 package enables efficient PCB real estate utilization, crucial for advanced circuit design. It supports automotive-grade reliability and is lead-free, reflecting environmental compliance.
Maximum continuous drain current of 140 mA supports low power switching. Maximum drain source voltage 250 V ensures high voltage tolerance. Enhancement mode channel with a gate charge of 3.6 nC reduces switching losses. Power dissipation rating of 500 mW suitable for consumer and automotive electronics.
Wide operating temperature range from -55°C to 150°C. Automotive standard AEC-Q101 certified for high reliability. Compact 3-pin SC-59 surface mount package.
Infineon’s BSR92PH6327XTSA1 is an ideal choice for advanced industrial and automotive applications requiring efficient small signal P-Channel MOSFET performance. Explore more semiconductor and MOSFET options at EnvMart for diverse electronics components needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the BSR92PH6327XTSA1 is 140 mA, making it suitable for low power applications.
This model has a maximum drain-source voltage rating of 250 V, allowing it to support high voltage switching applications.
The BSR92PH6327XTSA1 is packaged in a compact 3-pin SC-59 surface mount package, ideal for efficient PCB designs.
The operating temperature range for this MOSFET is from -55°C to 150°C, making it suitable for robust automotive use.
The typical gate charge for the BSR92PH6327XTSA1 is 3.6 nC at Vgs, which helps reduce switching losses.
This MOSFET has a maximum power dissipation rating of 500 mW, suitable for small signal applications.
The BSR92PH6327XTSA1 complies with the AEC-Q101 automotive standard, ensuring reliability in automotive environments.
The forward voltage of the BSR92PH6327XTSA1 is -0.8 V, which is typical for enhancement mode devices.
The dimensions of this model are 3 mm in length, 1.6 mm in width, and 1.1 mm in height.
The maximum gate-source voltage rating for this MOSFET is 20 V, allowing for safe operation within specified limits.
The BSR92PH6327XTSA1 features a P-channel type, which is suitable for specific circuit configurations.
This model is suitable for applications such as automotive electronics, DC-DC converters, and motor control, where efficient small signal power switching is needed.
