IXYS 1600 V 310 A General Purpose Diode 3-Pin Y1-CU MDD312-16N1

Free Delivery in India | Lowest Global Shipping Charges

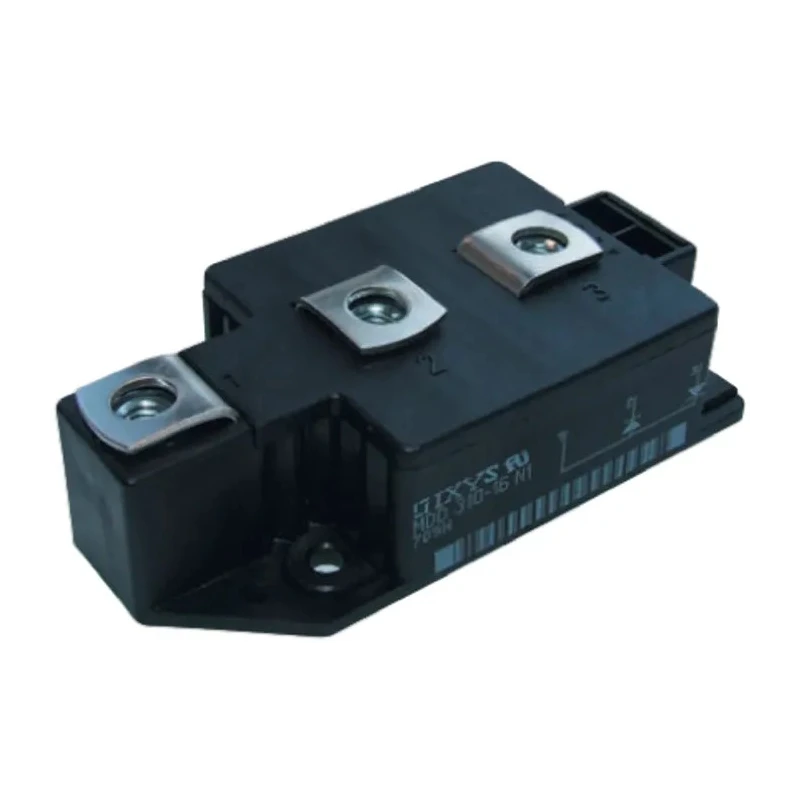

IXYS 1600 V 310 A General Purpose Diode 3-Pin Y1-CU MDD312-16N1

Name: IXYS 1600 V 310 A General Purpose Diode 3-Pin Y1-CU MDD312-16N1
Brand: IXYS
SKU: 148329
Price: 242.85 USD
Availability: InStock



Category Diode Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	49mm
Length	115mm
Model	MDD312-16N1
Width	50mm
Mount Type	Panel
Series	MDD312
Maximum Operating Temperature	150°C
Package Type	Y1-CU
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	310A
Peak Reverse Repetitive Voltage Vrrm	1600V
Diode Configuration	Series
Rectifier Type	General Purpose
Peak Reverse Current Ir	30mA
Peak Non-Repetitive Forward Surge Current Ifsm	11.9kA
Maximum Forward Voltage Vf	1.32V

Key Features

Maximum continuous forward current rating of 310 amperes ensures high current capacity.
Peak reverse repetitive voltage of 1600 volts offers robust voltage blocking capability.
Designed with 3 pins and panel mounting style for secure installation.
Maximum forward voltage drop is 1.32 volts, optimizing efficiency.
Operating temperature range from -40°C to 150°C for broad environmental tolerance.
Peak non-repetitive forward surge current rating of 11.9 kA accommodates transient conditions.
General purpose rectifier suitable for industrial power electronics and semiconductor applications.

Product Description

IXYS MDD312-16N1 is a high-performance general purpose diode designed for demanding industrial semiconductor applications. It features a maximum continuous forward current rating of 310 amperes and peak reverse repetitive voltage of 1600 volts, making it suited for robust power rectification in panel mounting configurations.

The diode utilizes a 3-pin Y1-CU package for reliable electrical connections and mechanical stability. Its maximum forward voltage drop of 1.32 volts contributes to efficient power handling, reducing energy losses during operation.

With an operating temperature range from -40°C up to 150°C, the MDD312-16N1 diode performs reliably across varied environments, ensuring durability under thermal stress. The 11.9 kA peak non-repetitive forward surge current capability enables the diode to handle transient surge conditions safely.

The compact dimensions of length 115 mm, width 50 mm, and height 49 mm allow integration into space-constrained power electronic assemblies. As a UL recognised component, it aligns with industry quality benchmarks.

Typical applications include power conversion, industrial motor drives, semiconductor circuitry, and rectification in high-power switching systems within electronics, manufacturing, and electrical distribution sectors.

Maximum continuous forward current rating of 310 amperes ensures high current capacity. Peak reverse repetitive voltage of 1600 volts offers robust voltage blocking capability. 3-Pin Y1-CU panel mount package for secure installation.

Maximum forward voltage drop of 1.32 volts reduces power loss. Operating temperature range from -40°C to 150°C for broad environmental tolerance. High surge current rating of 11.9 kiloamperes for transient conditions. Compact dimensions: 115 mm × 50 mm × 49 mm.

This IXYS general purpose diode MDD312-16N1 is ideal for electronic component inventories requiring efficient and reliable power Diode modules. Browse EnvMart's semiconductor category for related IXYS power devices.
