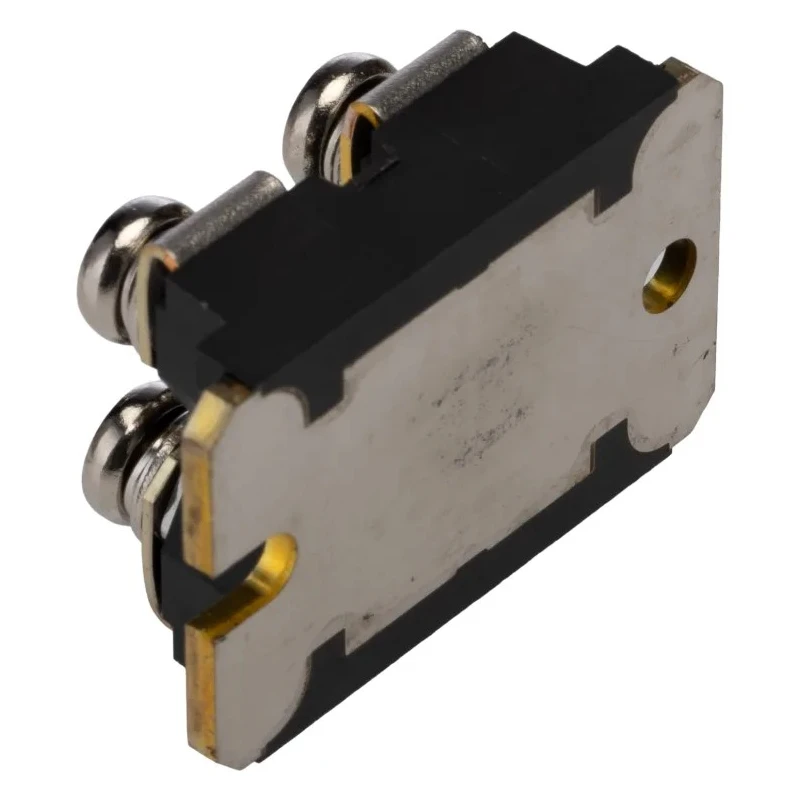

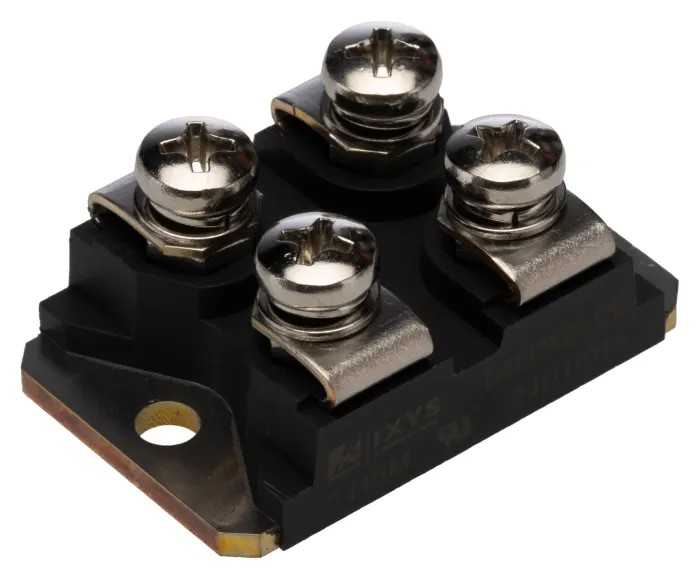

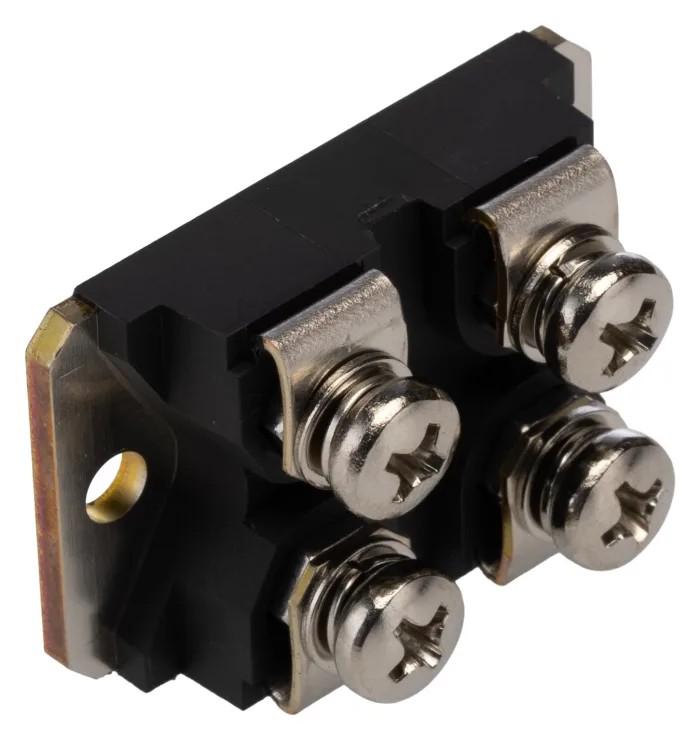

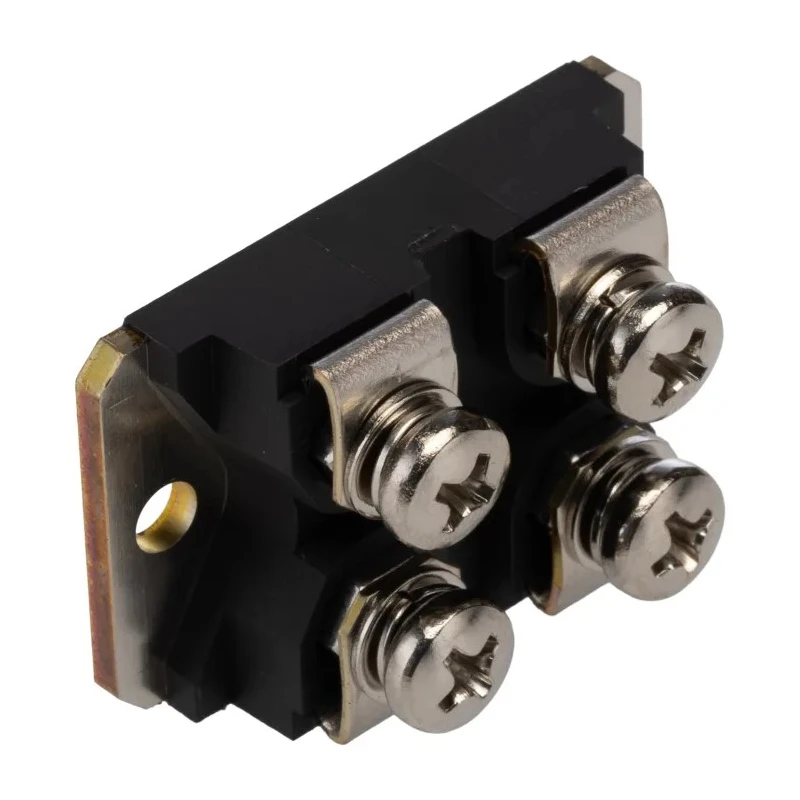

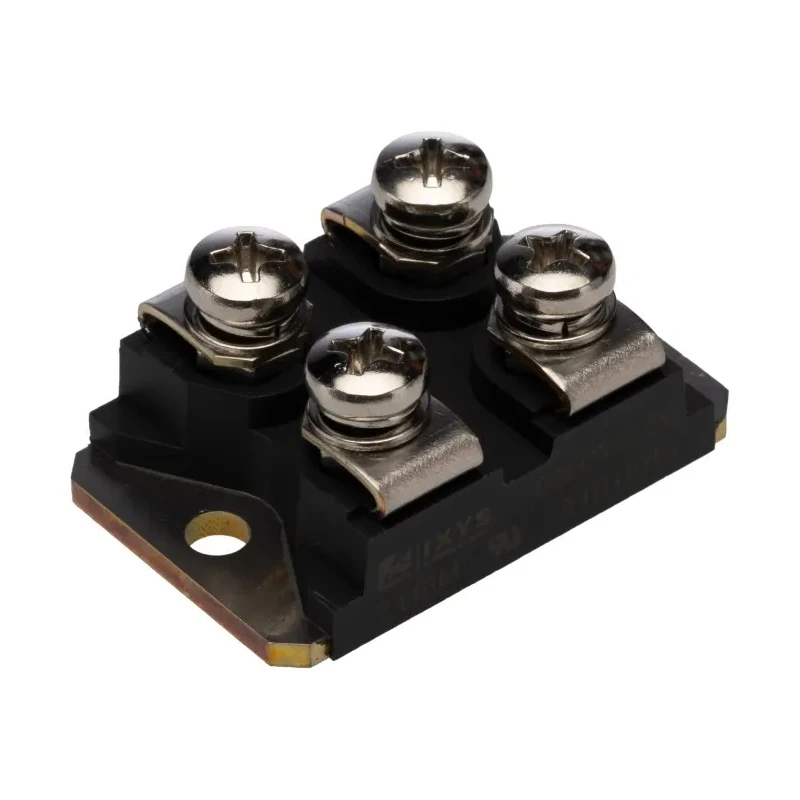

IXYS High Power Switching Rectifier Diode 1200 V 102 A 4-Pin SOT-227 DSEI2X61-12B

Free Delivery in India | Lowest Global Shipping Charges

IXYS High Power Switching Rectifier Diode 1200 V 102 A 4-Pin SOT-227 DSEI2X61-12B

Name: IXYS High Power Switching Rectifier Diode 1200 V 102 A 4-Pin SOT-227 DSEI2X61-12B
Brand: IXYS
SKU: 148318
Price: 51.64 USD
Availability: InStock



Category Switching Diode Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	9mm
Length	47mm
Model	DSEI2X61-12B
Width	30.3mm
Mount Type	Panel
Series	DSEI2X61-12B
Maximum Operating Temperature	150°C
Package Type	SOT-227
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Continuous Forward Current If	102A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Isolated
Rectifier Type	Switching
Peak Reverse Current Ir	2.2mA
Peak Non-Repetitive Forward Surge Current Ifsm	500A
Maximum Forward Voltage Vf	2.5V
Peak Reverse Recovery Time trr	60ns
IXYS 600 V 96 A Diode Switching 4-Pin SOT-227Brand	IXYS

Key Features

Designed for high power rectification applications.
Peak forward surge current rating of 500 A.
Maximum forward voltage drop of 2.5 V ensures efficient performance.
Withstands maximum operating temperature of 150°C for reliable use.
Isolated diode configuration suitable for panel mounting.
Compact dimensions of 47 mm length, 30.3 mm width, and 9 mm height.
Fast switching with reverse recovery time of 60 ns.
Wide operating temperature range from -40°C to +150°C.

Product Description

IXYS DSEI2X61-12B is a high power switching rectifier diode designed for demanding electronic and industrial applications. This diode features a peak reverse repetitive voltage of 1200 V and supports a maximum continuous forward current of 102 A, making it ideal for power rectification tasks requiring robust electrical performance.

The diode package is a 4-pin SOT-227 type, allowing convenient panel mounting with an isolated diode configuration. Its compact size with dimensions of 47 mm length, 30.3 mm width, and 9 mm height allows integration into various industrial systems without occupying excessive space.

Equipped with a peak non-repetitive forward surge current capability of 500 A and a maximum forward voltage of 2.5 V, this device ensures efficient power handling with minimal losses. The fast reverse recovery time of 60 ns facilitates high-speed switching performance essential in power electronics.

Operating reliably across a wide temperature range from -40°C to 150°C, it is suited for harsh industrial environments. The diode is classified as a switching type rectifier, widely used in rectification circuits, industrial power supplies, and electronic control systems.

Applications include industrial power conversion, power supplies, motor drives, and other electronic systems requiring dependable high voltage and current diode components. Designed for high power rectification applications.

Peak forward surge current rating of 500 A. Maximum forward voltage drop of 2.5 V ensures efficient performance. Withstands maximum operating temperature of 150°C for reliable use. Isolated diode configuration suitable for panel mounting.

Compact dimensions of 47 mm length, 30.3 mm width, and 9 mm height. Fast switching with reverse recovery time of 60 ns. Wide operating temperature range from -40°C to +150°C. Rectifier type: Switching, suitable for industrial power conversion.

Pin count: 4 pins for easy integration in circuits. Explore more high-quality semiconductor components like the DSEI2X61-12B diode at EnvMart for enhanced industrial and electronic projects.
