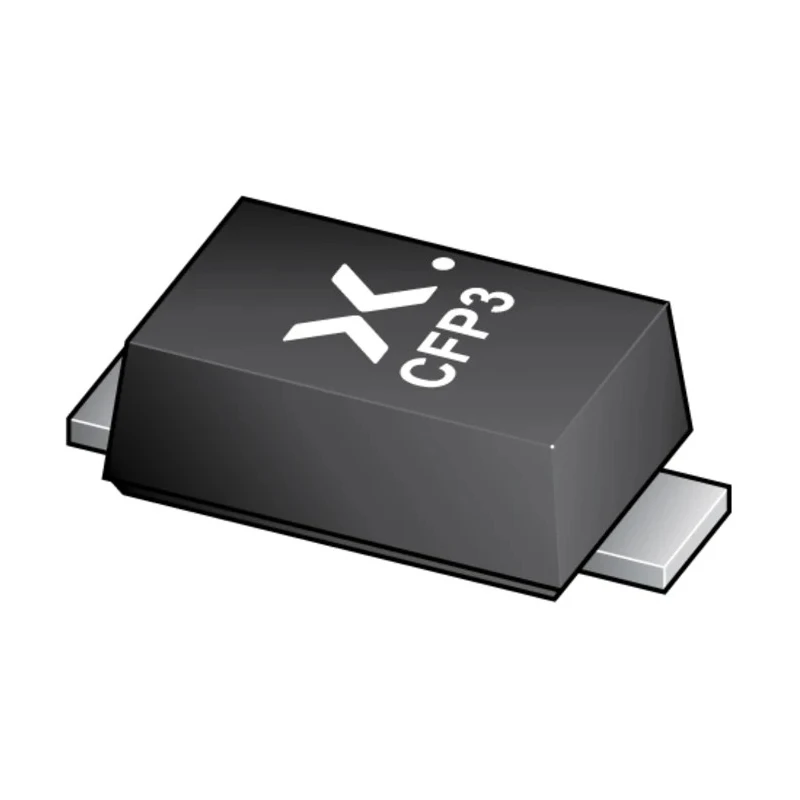

Nexperia Medium Power Low VF Schottky Diode 100 V 1.4 A 2-Pin SOD-123W PMEG10010ELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG10010ELRX |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG10010ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.4A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 770mV |
| Peak Reverse Recovery Time trr | 3.7ns |
| Average forward current | IF(AV) ≤ 1 A |
| Reverse voltage | VR ≤ 100 V |
Key Features
- Maximum continuous forward current of 1.4 A and peak reverse voltage of 100 V.
- Encapsulated in compact 2-pin SOD-123W surface mount package with dimensions 2.8 x 1.9 x 1.1 mm.
- Low forward voltage drop between 710 mV and 770 mV enhances efficiency.
- Extremely low leakage current with reverse current of 500 µA and peak reverse recovery time of 3.7 ns.
- High temperature operating capability up to 175°C with AEC-Q101 automotive qualification.
- Clip-bonding technology provides high power capability and integrated guard ring for stress protection.
- Ideal for power management, battery life extension and general power rectification applications.
- Certified automotive standard ensures reliability for automotive and industrial uses.
Product Description
The Nexperia PMEG10010ELRX is a medium power, low forward voltage Schottky diode available in a compact 2-pin SOD-123W surface mount device. It supports a maximum continuous forward current of 1.4 A and a peak reverse voltage of 100 V, making it suitable for efficient rectification tasks in power management systems.
This diode features a low forward voltage drop between 710 mV and 770 mV, minimizing power loss in high performance applications. The device boasts an extremely low leakage current of 500 µA and a rapid peak reverse recovery time of 3.7 ns, allowing swift switching capabilities.
Encapsulated in a small form factor package measuring only 2.8 mm length, 1.9 mm width, and 1.1 mm height, it is ideal for space-constrained electronic devices. It is certified to the automotive standard AEC-Q101, ensuring high reliability and durability under harsh conditions.
The diode incorporates clip-bonding technology for enhanced power capability and an integrated guard ring design that provides stress protection, further improving device robustness. Its wide operating temperature range from -55°C up to 175°C enables use in a variety of environments.
Common industrial and automotive use cases include DC power supply rectification, battery life extension solutions, and efficient energy conversion in compact electronic modules. This diode represents an essential component in semiconductor discrete devices for advanced power applications.
Maximum continuous forward current of 1.4 A ensures medium power handling. Peak reverse voltage rating of 100 V safeguards against voltage spikes. Low forward voltage helps reduce energy waste and heat buildup. Very fast switching performance with 3.7 ns recovery time.
Complies with automotive grade AEC-Q101 for stringent quality standards. Compact SOD-123W package suits small electronics and surface mounting. Wide temperature tolerance enables operation in demanding conditions. Explore more Schottky diode solutions and other semiconductor devices on EnvMart for your industrial and automotive project needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1.4 A.
This diode has a peak reverse voltage rating of 100 V.
The dimensions of the SOD-123W package are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
The forward voltage drop for this diode ranges between 710 mV and 770 mV.
The peak reverse recovery time for this model is 3.7 ns.
It operates within a temperature range of -55°C to 175°C.
This diode complies with the AEC-Q101 automotive standard.
The peak reverse current is 500 µA.
This model is a Schottky rectifier.
This diode uses a surface mount type.
The average forward current rating is specified as IF(AV) ≤ 1 A.
Clip-bonding technology enhances the power capability and provides an integrated guard ring for stress protection.
