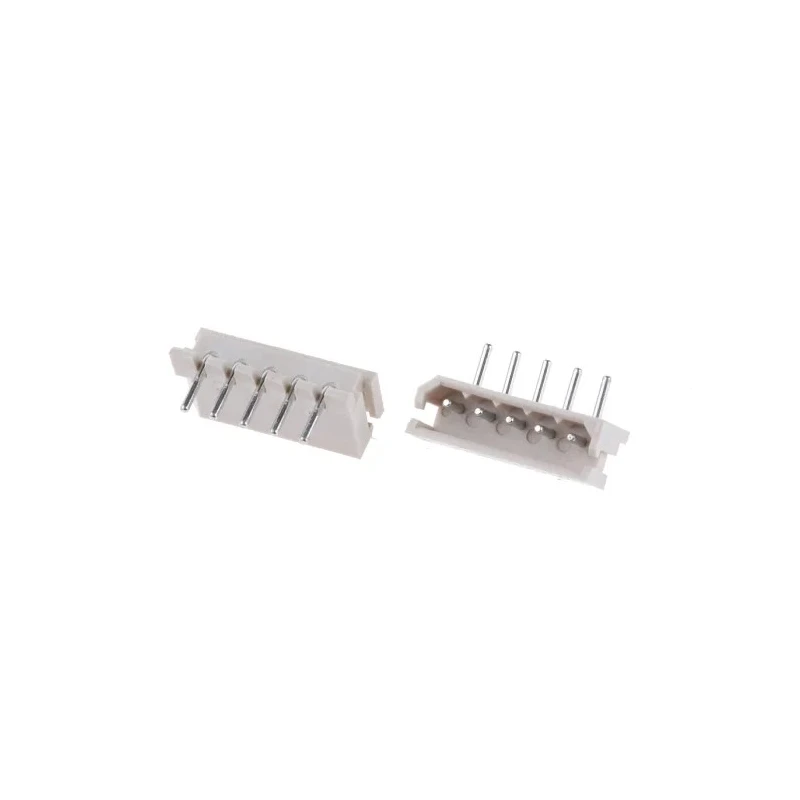

Molex SPOX Series Right Angle Through Hole Shrouded PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row 22-05-7055
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a low profile, shrouded design with polarization to prevent mismating.
- Includes 5 contacts arranged in 1 row with 2.5 mm spacing.
- Right angle orientation suitable for through hole mounting.
- Contacts are made of brass with tin plating for corrosion resistance.
- Supports a current rating of 3A and voltage rating of 250V.
- Tail pin length is 3.5 mm for secure solder termination.
- Operating temperature ranges from -40°C to 105°C for varied environments.
- Incorporates friction lock mechanism for secure mating connections.
Product Description
Molex 22-05-7055 is a right angle through hole PCB header from the SPOX series, featuring 5 male contacts with a 2.5 mm pitch in a single row and a shrouded housing made of durable nylon. Designed for wire-to-board connections, this connector ensures secure and reliable mating in electronic assemblies.
The header operates at voltages up to 250V and current up to 3A, with a wide operating temperature range from -40°C to 105°C, making it suitable for demanding industrial and automotive environments. The brass contact material with tin plating provides excellent conductivity and corrosion resistance.
This connector's right angle orientation and through hole mount type facilitate easy PCB installation. The tail pins extend 3.5 mm to facilitate strong solder joints. The connector system includes polarization features to prevent mismating and a friction lock to secure the connection firmly.
Its low profile, shrouded design adds mechanical protection and prevents damage during use. These connectors are widely used in applications such as industrial control systems, automotive electronics, telecommunications equipment, medical devices, and consumer electronics.
Molex SPOX series connectors support assembly efficiency and reliability, meeting modern electronic device needs with robust construction and standardized pitch dimensions. Low profile, shrouded design prevents damage and ensures reliability.
Polarization and friction lock features enhance connection security. Brass contacts with tin plating provide durability and conductivity. Wide operating temperature range from -40°C to 105°C. Right angle, through hole mounting for versatile PCB layouts.
Suitable for automotive, industrial, medical, and telecommunications applications. Supports 3A current and 250V voltage ratings. Tail pin length 3.5 mm for reliable solder connections. Explore a variety of PCB Headers and connectors in the Electronics Components category at EnvMart for your professional and industrial needs.
