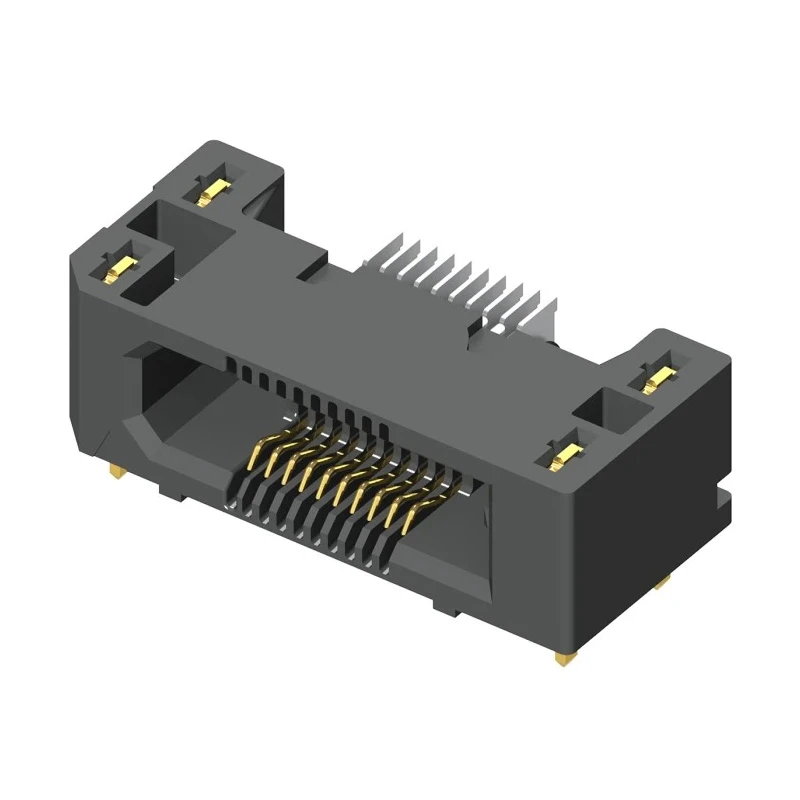

Samtec Series Straight Surface Board-to-Board PCB Socket, 60-Contact, 2 Row, 0.5 mm Pitch, 1.6A, 194V, Liquid Crystal ERF5

Free Delivery in India | Lowest Global Shipping Charges

Samtec Series Straight Surface Board-to-Board PCB Socket, 60-Contact, 2 Row, 0.5 mm Pitch, 1.6A, 194V, Liquid Crystal ERF5

Name: Samtec Series Straight Surface Board-to-Board PCB Socket, 60-Contact, 2 Row, 0.5 mm Pitch, 1.6A, 194V, Liquid Crystal ERF5
Brand: Samtec
SKU: 141534
Price: 5.93 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	194V
Brand	Samtec
Orientation	Straight
Current	1.6A
Model	ERF5
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	ERF5
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Connector System	Board-to-Board
Stacking Height	12mm

Key Features

Provides a current rating of 1.6A and a voltage rating of 194V.
Constructed with Liquid Crystal Polymer housing for durability and stability.
Features Beryllium Copper Alloy contacts plated with gold for excellent conductivity and corrosion resistance.
Designed for high-speed data transmission up to 28 Gbit/s with reduced crosstalk and high signal integrity.
Operates reliably within a temperature range from -55°C to 125°C.
Offers a stacking height of 12 mm suitable for various board configurations.
Termination type is solder for surface mounting on PCBs.
Connector system is designed specifically for board-to-board connectivity.

Product Description

Samtec ERF5 ERF5-030-07.0-L-DV-K-TR PCB Socket is a premium quality, straight surface mount board-to-board connector featuring 60 contacts arranged in 2 rows with a pitch of 0.5 mm. This PCB socket is specifically engineered for high-speed SMT applications with a data transmission performance reaching up to 28 Gbit/s, making it ideal for advanced electronic devices requiring reliable high-frequency operation.

The socket housing is made from Liquid Crystal Polymer, providing excellent mechanical strength and thermal stability. Contacts are constructed with Beryllium Copper Alloy and plated with gold, ensuring superior electrical conductivity and resistance to corrosion, thereby enhancing durability and long service life.

Operating comfortably within temperatures from -55°C to 125°C, this connector supports a current rating of 1.6A and voltage up to 194V. Its solder termination and surface mount design simplify installation on printed circuit boards. The 12 mm stacking height allows versatile configurations in electronic assemblies.

Featuring ruggedized Edge Rate contacts, the ERF5 Series socket reduces insertion and withdrawal force while minimizing contact wear. This design also helps lower crosstalk and broadside coupling, boosting signal integrity and electrical performance in demanding electronic environments.

Applications include use in industrial, commercial, telecommunications, and consumer electronics equipment, where reliable board-to-board connection is essential for high-speed data communication. This connector series can be paired with ERM5 Series headers to achieve variable mating heights.

Current rating of 1.6A ensures efficient power handling. Gold plated Beryllium Copper contacts improve conductivity and life cycle performance. Housing material provides strong thermal and mechanical resistance. 0.5 mm pitch allows compact circuit designs.

Supports operating temperatures from -55°C to 125°C for versatility. Edge Rate contact design reduces wear and insertion forces. Compatible with ERM5 series headers for customized stacking heights. Solder termination ensures secure mounting on PCBs.

Explore our Electronics & Electricals catalog for more PCB Sockets from Samtec and other leading brands at EnvMart.
