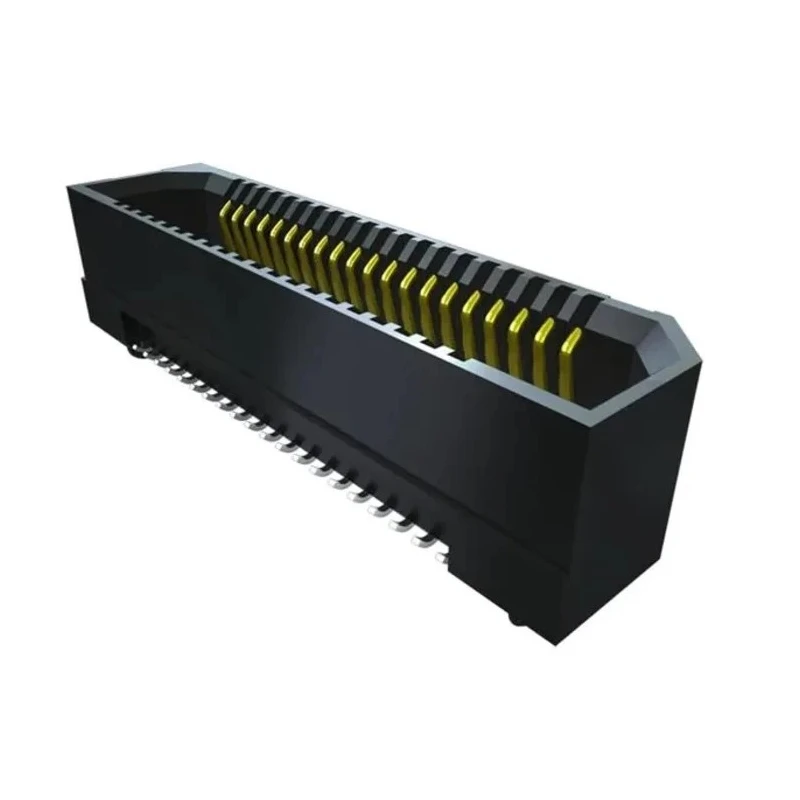

Samtec Series Straight Surface PCB Socket, 26-Contact, 2 Row, 0.8 mm Pitch, 2.2A Current, 318V, Liquid Crystal Polymer ERF8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | ERF8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | ERF8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Speed Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Connector System | Board-to-Board |
| Stacking Height | 18mm |
| Row Pitch | 4.5mm |
Key Features
- The socket supports a maximum current of 2.2 amperes for reliable performance.
- Constructed with a liquid crystal polymer housing for high durability and thermal stability.
- Features beryllium copper alloy contact material with selective gold plating for excellent conductivity.
- Designed with a straight orientation and a stacking height of 18 mm for efficient PCB assembly.
- Operates effectively within a temperature range of -55°C to 125°C.
- Includes tape and reel packaging for ease of automated assembly processes.
- Board-to-board connector system provides a secure and stable connection solution.
- Offers a row pitch of 4.5 mm and a pitch of 0.8 mm for compact integration.
Product Description
Samtec ERF8 Series Straight Surface PCB Socket ERF8 is engineered for high-speed electronic applications requiring precise board-to-board connectivity. It includes 26 contacts arranged in 2 rows with a 0.8 mm pitch, delivering robust electrical connection with a current rating of 2.2 amperes and a voltage rating of 318 volts.
The housing is made of advanced liquid crystal polymer, providing excellent durability and stability under harsh industrial environments. The contacts are crafted from beryllium copper alloy, plated selectively with 0.000762 mm gold to ensure optimal conductivity and corrosion resistance. Matte tin is applied on tails to facilitate soldering processes.
Designed with a straight orientation and a stacking height of 18 mm, this PCB socket allows versatile configurations for dense circuit layouts. It operates reliably within a temperature range from -55°C to +125°C, making it suitable for demanding industrial and electronic manufacturing contexts.
Additional features include polyimide film pick & place pad and packaging on tape and reel, supporting automated assembly lines and efficient handling. The socket has a row pitch of 4.5 mm and meets no specific industry standards or approvals.
The socket supports a maximum current of 2.2 amperes for reliable performance. Constructed with a liquid crystal polymer housing for high durability and thermal stability. Features beryllium copper alloy contact material with selective gold plating for excellent conductivity.
Designed with a straight orientation and a stacking height of 18 mm for efficient PCB assembly. Operates effectively within a temperature range of -55°C to 125°C. Includes tape and reel packaging for ease of automated assembly processes.
Board-to-board connector system provides a secure and stable connection solution. Offers a row pitch of 4.5 mm and a pitch of 0.8 mm for compact integration.
This PCB Socket is ideal for industrial electronics manufacturing, telecommunications equipment, and other commercial applications requiring reliable, compact, and high-speed board interconnections. Browse more Samtec products and electronic connectors on EnvMart for detailed specifications and purchasing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 2.2 amperes.
The voltage rating of the Samtec ERF8 model is 318 volts.
The housing is made of liquid crystal polymer, and the contacts are crafted from beryllium copper alloy with selective gold plating.
It operates effectively within a temperature range of -55°C to +125°C.
This PCB socket has 26 contacts arranged in 2 rows.
The pitch of the contacts in this socket is 0.8 mm.
The stacking height of this PCB socket is 18 mm.
This socket utilizes solder termination type.
The row pitch of this model is 4.5 mm.
Yes, it includes tape and reel packaging, which supports automated assembly processes.
This socket uses a board-to-board connector system.
This PCB socket is manufactured in India.
