TDK Film Capacitor 100 nF 800V AC 2 kV DC Tab Mount B32656S2104J564
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 25mm |
| Length | 42mm |
| Model | B32656S2104J564 |
| Width | 14mm |
| Mount Type | Tab |
| Series | B32656S |
| Maximum Operating Temperature | 100°C |
| Capacitance | 100nF |
| Standards/Approvals | UL, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 800V ac |
| Rated DC Voltage | 2kV dc |
| Lead Pitch | 12mm |
Key Features
- Capacitance value of 100 nanofarads for precise circuit applications.
- Rated for 800 volts AC and 2 kilovolts DC providing robust voltage tolerance.
- Tab mount type with 12 mm lead pitch for secure and easy PCB assembly.
- Operates reliably up to 100°C maximum temperature for durable performance.
- Complies with UL and RoHS standards ensuring safety and environmental compliance.

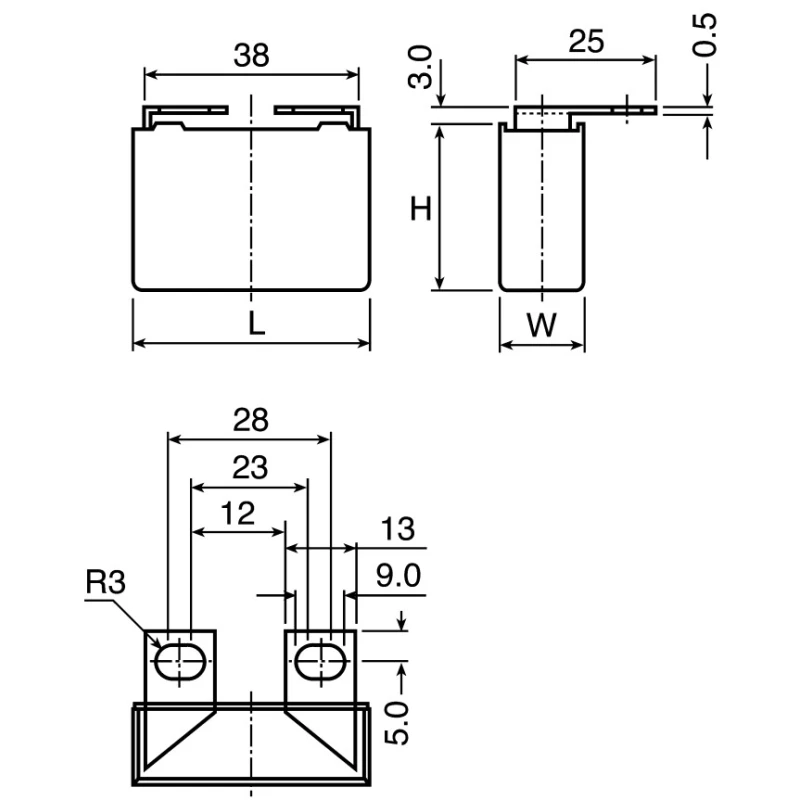

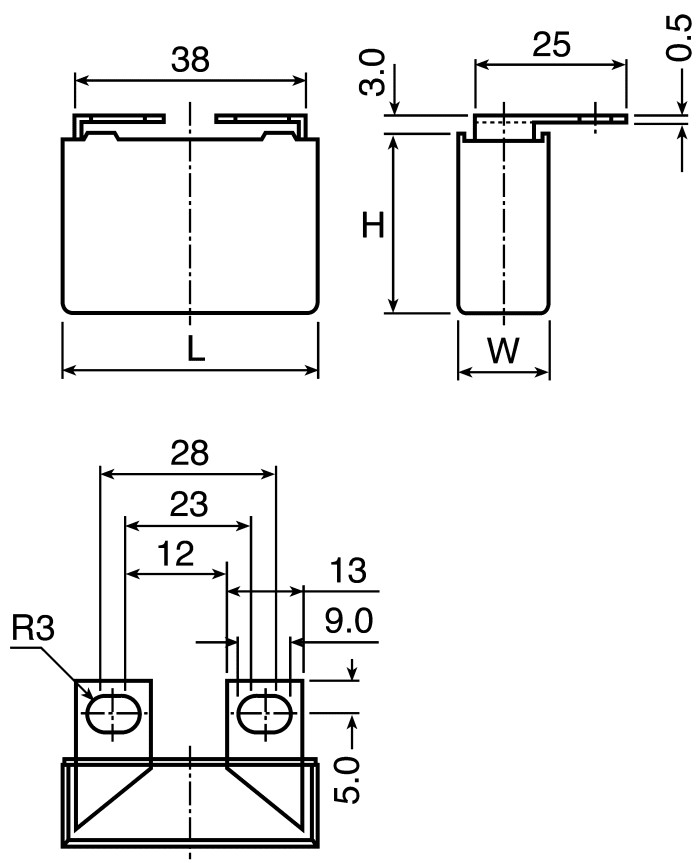

- Compact physical dimensions with length 42 mm, width 14 mm, height 25 mm.
- Constructed with plastic case and epoxy resin sealing with UL 94 V-0 flame retardant rating.
- Wound capacitor technology featuring internal series connection for low inductance.
Product Description
TDK B32656S2104J564 film capacitor is a high-quality electronic component specified for demanding industrial and electronic applications. This capacitor features a capacitance of 100 nF, and is rated for 800 volts AC and 2 kV DC operation, making it suitable for power electronics, filtering, and pulse circuits.
Its tab mount design with a 12 mm lead pitch provides solid mechanical and electrical connections. The component is engineered to operate reliably at temperatures up to 100°C, offering durability in a range of industrial environments.
The capacitor is housed in a plastic case sealed with epoxy resin that meets UL 94 V-0 flammability standards, ensuring enhanced safety and longevity. The internal wound capacitor technology with series connection reduces inductance, improving performance in high-frequency applications.
Compliant with UL and RoHS certification standards, this capacitor also aligns with international safety and environmental regulations. Capacitance of 100 nF suitable for accurate electronic filtering and timing functions.
High voltage ratings of 800V AC and 2kV DC support use in power supply and industrial applications. Tab mount construction and 12mm lead pitch facilitate easy and reliable PCB integration. Maximum operating temperature of 100°C withstands harsh working conditions.
Flame retardant plastic casing and epoxy resin sealing ensure component safety and durability. Low inductance internal design optimizes capacitor performance in pulse circuits. Meets UL and RoHS standards, confirming compliance with major safety and environmental guidelines.
This film capacitor is well-suited for use in industrial electronics, power electronics, automotive circuits, and manufacturing equipment. Its robust construction and high voltage ratings make it a dependable choice for demanding electronic assemblies and industrial systems.
Explore more industrial electronic components and Film Capacitors at EnvMart for your next project or manufacturing requirement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 100 nanofarads (nF), making it suitable for precise circuit applications.
It is rated for 800 volts AC and 2 kilovolts DC, providing robust voltage tolerance for various applications.
The maximum operating temperature for this unit is 100°C, allowing it to perform reliably in harsh conditions.
The dimensions are 42 mm in length, 14 mm in width, and 25 mm in height.
This model features a tab mount design with a lead pitch of 12 mm for secure PCB assembly.
It is constructed with a plastic case and sealed with epoxy resin, which meets UL 94 V-0 flame retardant standards.
This capacitor complies with UL and RoHS standards, ensuring safety and environmental compliance.
It is well-suited for industrial electronics, power electronics, automotive circuits, and manufacturing equipment.
The internal wound capacitor technology with series connection reduces inductance, optimizing performance in high-frequency applications.
This model has a pin count of 2, facilitating its connection in electronic circuits.
This capacitor is part of the B32656S series, which includes various models designed for similar applications.
The country of origin for this capacitor is India, indicating its manufacturing location.
