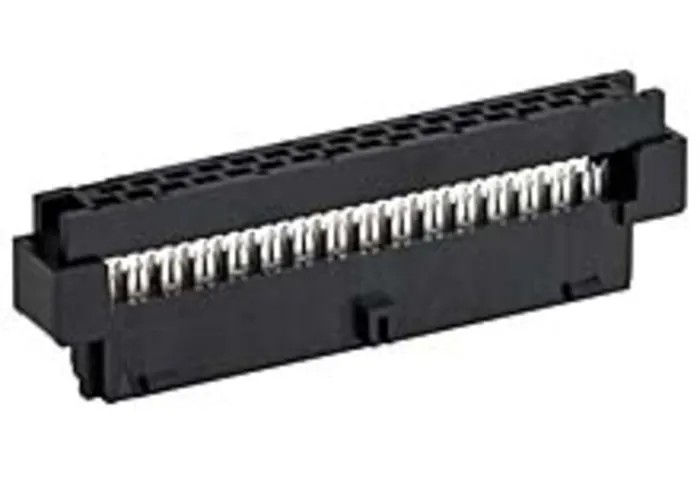

Molex 12-Way IDC Connector Female for Cable, 2 Row, 125V AC, 1A Current, Gold Plating 875681273

The Molex 875681273 12-Way IDC Connector Female for Cable, 2 Row is a high-quality cable-to-board receptacle designed for electronic component interfacing applications requiring reliable and consistent connections.

This IDC connector offers 12 contacts arranged dual-row with a pitch of 2 mm, accommodating typical signal and power transmission needs within 125V AC and 1A current ratings. The contacts are selectively plated with 0.38 μm gold over copper to provide a high level of conductivity, corrosion resistance, and extended service life.

The housing is manufactured from durable PBT plastic, providing strong mechanical stability and excellent electrical insulation. The unshrouded female contact design ensures compatibility with corresponding male connectors while simplifying installation procedures.

Rated to operate reliably in temperatures ranging from -20°C up to 85°C, this connector is suitable for various industrial, electronic manufacturing, and laboratory applications where robust environmental tolerance is essential. The straight orientation and cable mount configuration allow for straightforward integration into wire harnesses and PCB assemblies.

The termination type is insulation displacement contact (IDC), enabling fast, solderless attachment of cables, which reduces assembly time and potential errors. The connector is part of the Milli-Grid series and includes a locking friction ramp to secure cable engagement, though it lacks a center polarization key, necessitating proper alignment during installation.

This Molex IDC connector is commonly used in electronic devices, instrumentation, industrial control systems, and communication equipment where compact, reliable cable connection is critical.

The connector features 12 contacts arranged in 2 rows for efficient cable interfacing. Unshrouded design with gold-plated copper contacts ensures excellent conductivity and corrosion resistance. Constructed with PBT housing material for durability and electrical insulation.

Suitable for operating temperatures from -20°C to 85°C, ensuring versatile environmental performance. The straight orientation and cable mount type facilitate easy installation in various electronic assemblies. The termination method is IDC, allowing quick and secure cable termination without soldering.

The product conforms to the Milli-Grid series specifications without center polarization key but includes locking friction ramp for connector retention. Browse more IDC Connectors and related electronic components at EnvMart to meet your industrial and commercial application needs.
