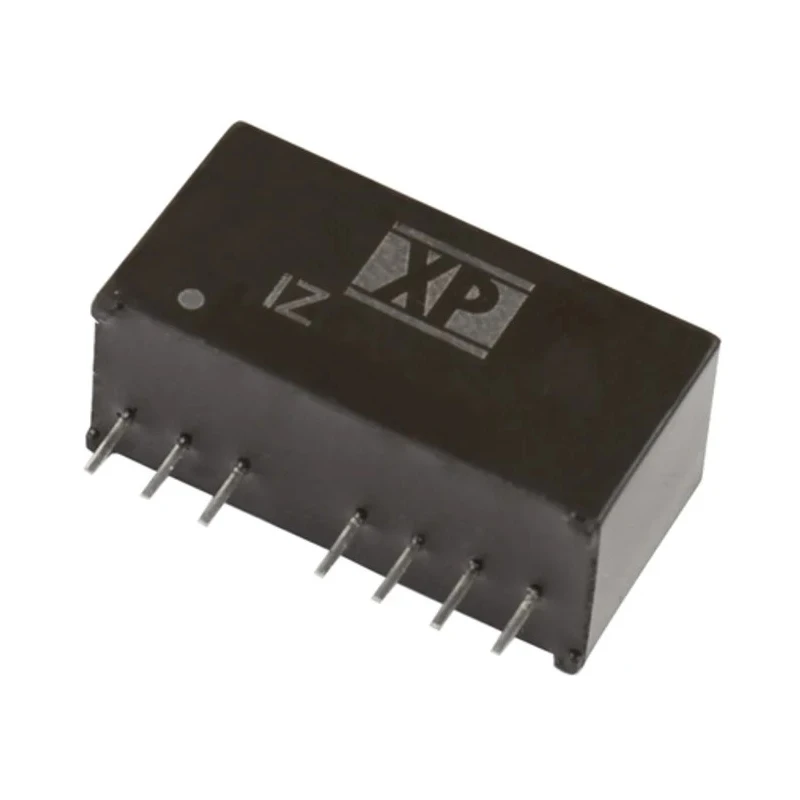

XP Power Isolated DC-DC Converter 5V, -5V Output, 300mA, 36V DC Input, 3W, SIP Package, Through Hole Mount IZ2405S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IZ DC/DC Converter, 5V, -5 V/ 300 mA, 36V |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 21.85mm |
| Model | IZ2405S |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IZ |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1340000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 8V |
| Number of Pins | 8 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 300mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides dual regulated outputs of 5V and -5V for versatile power needs.
- Encased in a SIP package with through-hole mounting for easy PCB integration.
- Features 1.6 kV DC isolation voltage ensuring safe and reliable operation.
- Continuous short circuit protection enhances device durability and safety.
- Operates efficiently at 79% efficiency reducing energy loss.
- Designed for wide operating temperature range from -40°C to 100°C for harsh environments.
- Mean time between failures (MTBF) of 1,340,000 hours ensures long term reliability.
- Ideal for industrial, commercial, and electronic component applications requiring isolated voltage conversion.
Product Description
XP Power IZ2405S is an isolated DC-DC converter designed to provide reliable dual output voltages of 5V and -5V at a continuous current of 300mA and power rating of 3W. It accepts a wide DC input voltage ranging from 8V minimum to 36V maximum, making it suitable for fluctuating power supply environments found in industrial and commercial electronic systems.
Housed in a SIP package with through-hole mount type, the IZ2405S facilitates secure and easy integration onto printed circuit boards. The converter features a 2:1 input voltage ratio and offers continuous short circuit protection to protect connected equipment and the converter itself from faults. With an isolation voltage rating of 1.6 kV DC, it ensures safe separation between input and output, essential for sensitive industrial electronics.
Operating efficiently at 79%, this product supports a wide ambient operating temperature range from -40°C to 100°C, suited for challenging environmental conditions. The device's compact size with dimensions of 21.85mm length, 9.2mm width, and 11.1mm depth allows use in space-constrained applications. The high MTBF of 1,340,000 hours indicates excellent reliability and longevity for critical power supply tasks.
XP Power’s IZ series Isolated DC-DC converters are widely used in industrial automation, measurement systems, telecommunications, and power management applications requiring isolated voltage conversion with compact form factor and thermal resilience.
Dual regulated outputs of +5V and -5V at 300mA current. Wide DC input voltage range from 8V to 36V with 2:1 ratio. SIP package designed for through-hole mount. 1.6 kV isolation voltage between input and output for safety.
Continuous short circuit protection for fault tolerance. 79% efficiency for reduced power loss and heat. Robust operation from -40°C to +100°C ambient temperature. Compact footprint: 21.85mm by 9.2mm by 11.1mm. Long MTBF of 1.34 million hours assuring reliability.
Suitable for industrial, commercial, and electronic component applications. Explore the full range of XP Power DC/DC Converters at EnvMart for reliable power solutions tailored to demanding industrial and commercial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual regulated outputs of +5V and -5V at a continuous current of 300mA, with a maximum output power of 3W.
It accepts a wide DC input voltage ranging from 8V to 36V, with a 2:1 input voltage ratio.
The efficiency of this unit is rated at 79%, which helps in reducing energy loss during operation.
It features an isolation voltage rating of 1.6 kV DC, ensuring safe separation between input and output.
The dimensions of this model are 21.85mm in length, 9.2mm in width, and 11.1mm in depth.
It is designed for through-hole mounting, making it suitable for secure integration onto printed circuit boards.
The operating temperature range is from -40°C to 100°C, allowing it to function in harsh environments.
It includes continuous short circuit protection to safeguard both the connected equipment and the converter itself from faults.
The MTBF is rated at 1,340,000 hours, indicating long-term reliability for critical power supply tasks.
This unit has two outputs, providing both +5V and -5V.
It is suitable for industrial, commercial, and electronic component applications that require isolated voltage conversion.
The country of origin for this model is Taiwan.
