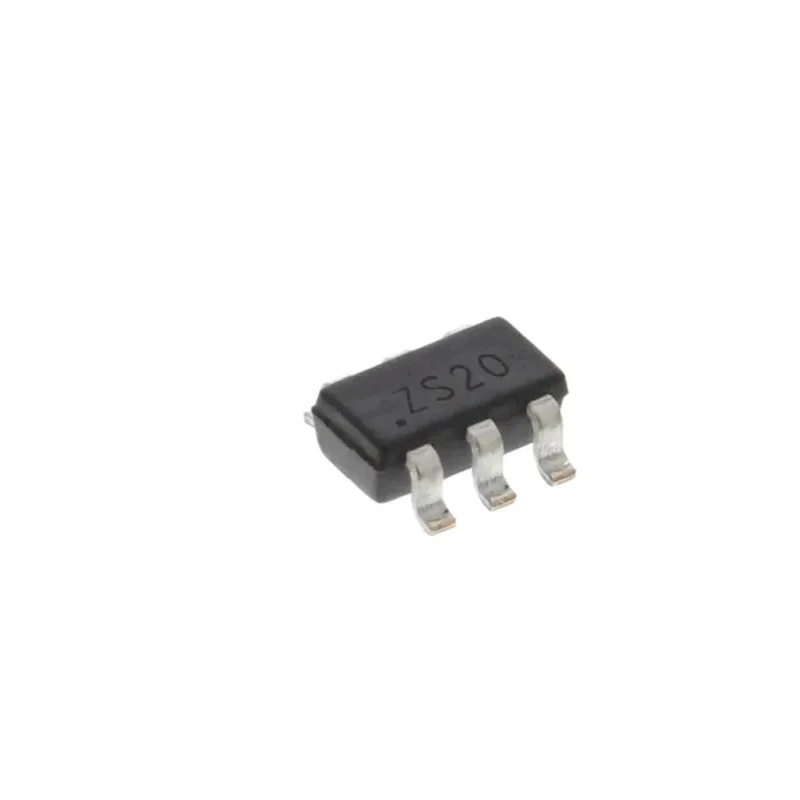

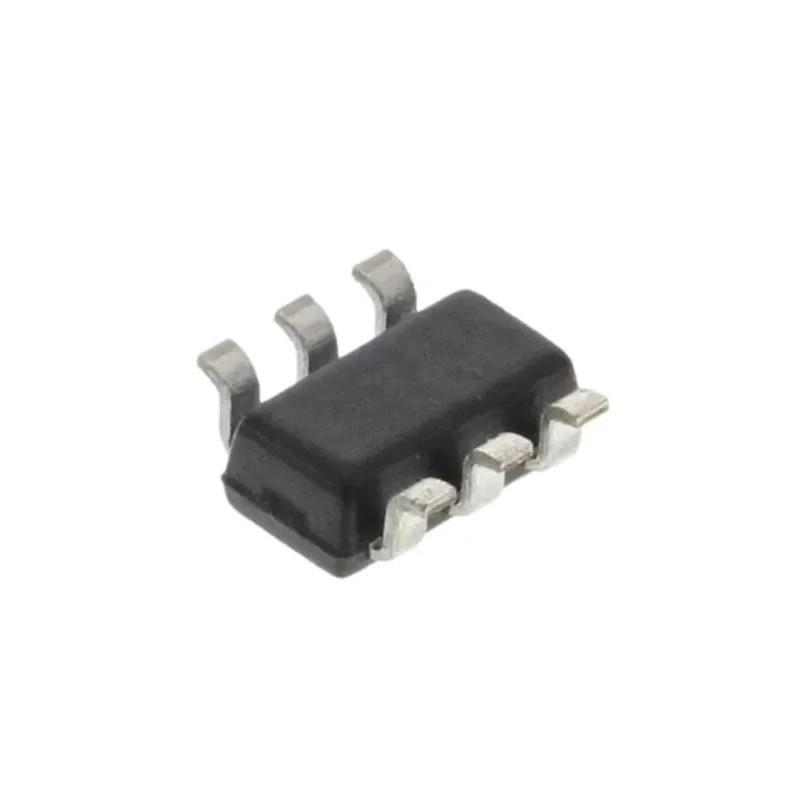

DiodesZetex 40 V 2 A Schottky Diode Single, 6-Pin SOT-23 Package ZHCS2000TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3mm |
| Model | ZHCS2000TA |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | ZHCS2000TA |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 420mV |
| Peak Reverse Recovery Time trr | 5.5ns |
Key Features
- Single diode configuration designed for efficient rectification.
- Low forward voltage of 420 mV reduces power loss.
- Peak reverse current rated at 300 microamperes.
- Operating temperature range from -55°C to 150°C ensures robust performance.
- Complies with Automotive Standard AEC-Q101 for automotive applications.
- Peak non-repetitive forward surge current capacity of 20 A.
- Fast peak reverse recovery time of 5.5 nanoseconds.
- Surface mount package facilitates automated PCB assembly.
Product Description
DiodesZetex ZHCS2000TA is a high-performance Schottky diode featuring a 6-pin SOT-23 surface mount package. It supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 40 V, making it ideal for power rectification in compact, high-efficiency electronic assemblies.
This diode exhibits a low forward voltage of 420 mV, minimizing conduction losses and enhancing energy efficiency in circuits. It is designed for use in demanding environments with an operating temperature range from -55°C to 150°C, backed by compliance with the AEC-Q101 automotive standard for quality and reliability.
The compact 3x1.75x1.3 mm dimensions allow for space-saving PCB layouts, supporting surface mount assembly for automated production processes. Its 20 A peak non-repetitive surge current rating ensures robustness during transient overloads.
With a fast peak reverse recovery time of 5.5 ns, it is suitable for high-frequency switching applications where performance and reliability are critical. This diode is widely applicable in industrial, automotive, and consumer electronics circuits as a Schottky barrier rectifier.
Key features include a single diode configuration optimized for rectification efficiency, low leakage current, and thermal stability, contributing to long-term durability in harsh operational conditions.
Single diode configuration designed for efficient rectification. Low forward voltage of 420 mV reduces power loss. Peak reverse current rated at 300 microamperes. Operating temperature range from -55°C to 150°C ensures robust performance.
Complies with Automotive Standard AEC-Q101 for automotive applications. Compact dimensions: 3 mm length, 1.75 mm width, and 1.3 mm height. Peak non-repetitive forward surge current capacity of 20 A. Fast peak reverse recovery time of 5.5 nanoseconds.
Surface mount package facilitates automated PCB assembly. Designed for high reliability in industrial and automotive electronic circuits.
This Schottky diode is an excellent choice for designers needing a reliable, efficient diode for use in power management, switching power supplies, automotive electronic systems, and general-purpose rectification.
Explore similar Schottky diodes and rectifiers at EnvMart for your electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
The maximum forward voltage drop is 420 mV.
The operating temperature range is from -55°C to 150°C.
It can handle a peak non-repetitive forward surge current capacity of 20 A.
The dimensions are 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
It comes in a 6-pin SOT-23 surface mount package.
Yes, it complies with the Automotive Standard AEC-Q101.
This model is suitable for power management, switching power supplies, and automotive electronic systems.
The surface mount design facilitates automated PCB assembly, making it suitable for high-efficiency electronic assemblies.
