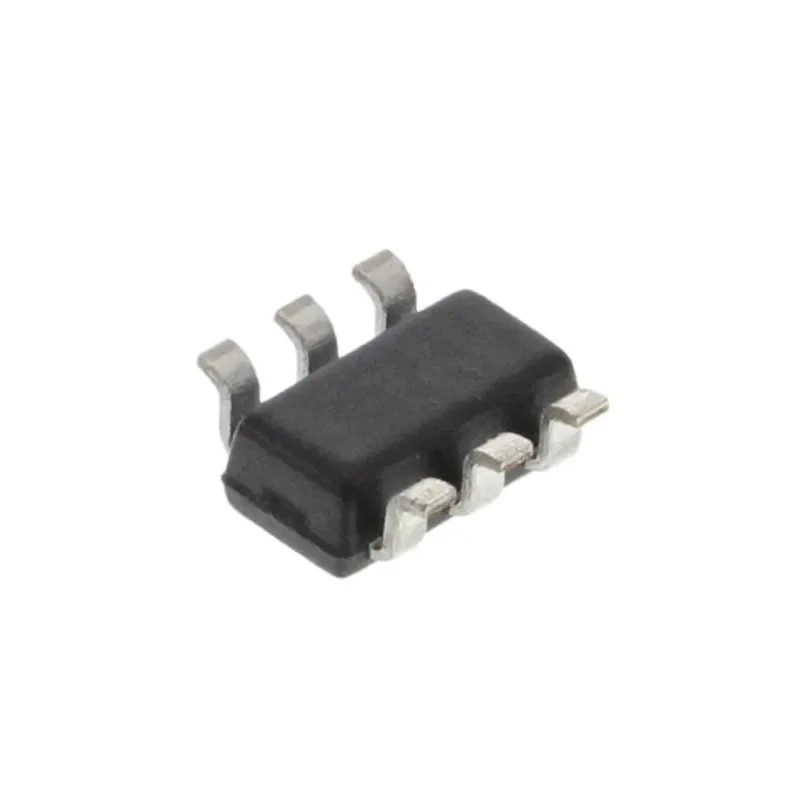

DiodesZetex 40 V 2 A Schottky Diode 6-Pin SOT-23 ZHCS2000TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3mm |
| Model | ZHCS2000TA |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | ZHCS2000TA |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 420mV |
| Peak Reverse Recovery Time trr | 5.5ns |
Key Features
- Features a surface mount type with a compact SOT-23 package.
- Single diode configuration with low maximum forward voltage of 420mV.
- Peak reverse current only 300 microamperes ensuring low leakage.
- High peak non-repetitive forward surge current of 20A for transient handling.
- Operates reliably between -55°C to 150°C for extended temperature range.
- Fast peak reverse recovery time of 5.5 nanoseconds for efficient switching.
- Complies with automotive standard AEC-Q101 for quality and reliability.
Product Description
The DiodesZetex ZHCS2000TA is a high-performance Schottky diode designed for surface mounting in electronic circuits, featuring a 6-pin SOT-23 package that ensures efficient space utilization.
This diode supports a maximum continuous forward current of 2 amps and a peak reverse repetitive voltage of 40 volts, making it suitable for various power management applications. Its low maximum forward voltage of 420mV minimizes power loss, and the peak reverse current rating of just 300 microamperes enhances circuit efficiency by reducing leakage.
With a fast peak reverse recovery time of 5.5 nanoseconds, the ZHCS2000TA delivers excellent switching characteristics, ideal for high-frequency applications and rapid switching scenarios.
Engineered to operate reliably over a wide temperature range from -55°C to 150°C, this diode is robust enough for automotive and industrial environments, backed by compliance with the automotive standard AEC-Q101.
The package dimensions are compact at 3mm length, 1.75mm width, and 1.3mm height, facilitating integration into dense printed circuit boards. Surface mount type and single diode configuration for flexibility in design. High surge current capability of 20 amps to withstand transient events.
AEC-Q101 certification ensures automotive-grade reliability.
This Schottky diode is suitable for power rectification, voltage clamping, and protection in industrial, automotive, and consumer electronics circuits requiring efficient, reliable semiconductor diodes.
Explore more semiconductor components and Schottky diodes in the Electronics & Electricals category at EnvMart for your project needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 amps.
It has a peak reverse repetitive voltage rating of 40 volts.
The maximum forward voltage for this diode is 420mV.
The peak reverse current rating is 300 microamperes.
The package dimensions are 3mm in length, 1.75mm in width, and 1.3mm in height.
It operates reliably between -55°C and 150°C.
The peak non-repetitive forward surge current is 20A.
This diode complies with the automotive standard AEC-Q101.
The peak reverse recovery time is 5.5 nanoseconds.
It features a single diode configuration.
This model supports surface mounting.
It is suitable for power rectification, voltage clamping, and protection in industrial, automotive, and consumer electronics circuits.
