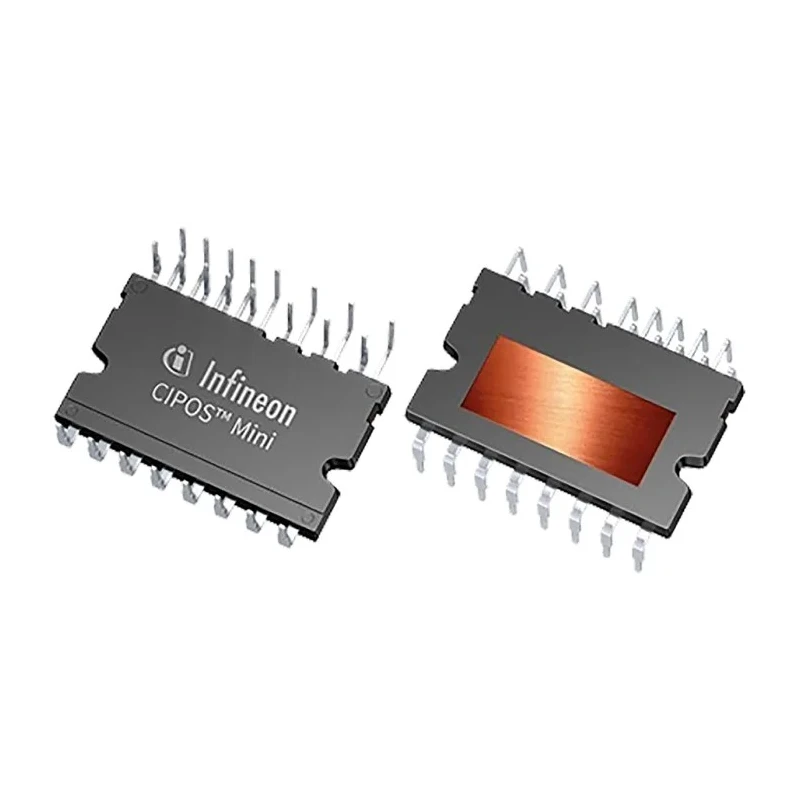

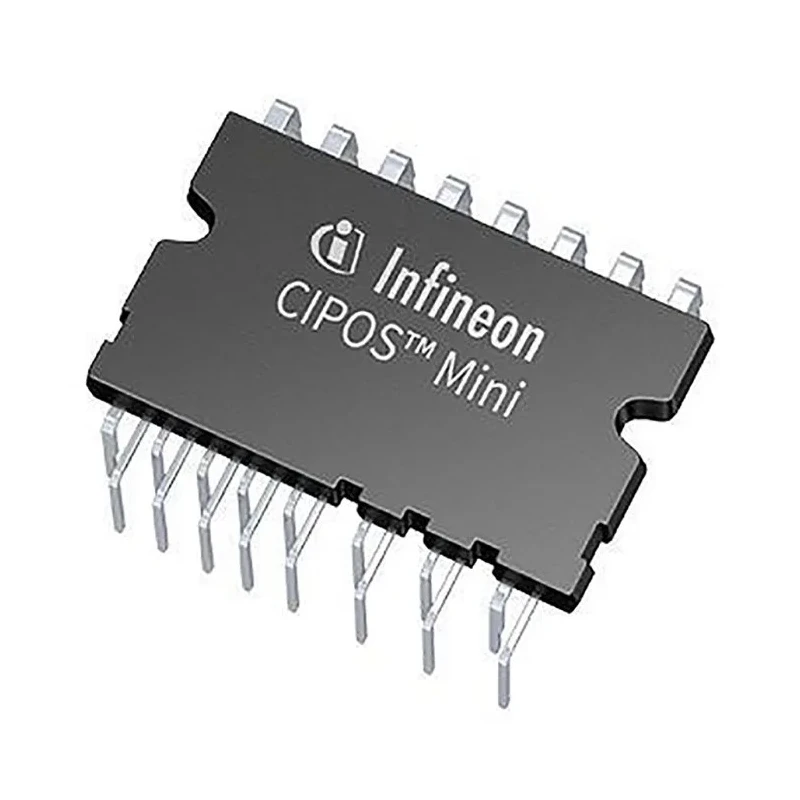

Infineon AC Motor Permanent Magnet Motor Driver IC 2.8V 24A 24-Pin DIP IKCM15H60GAXKMA2
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Infineon |
| Height | 3.1mm |
| Length | 36mm |
| Model | IKCM15H60GAXKMA2 |
| Width | 21mm |
| Motor Type | AC Motor, Permanent Magnet |
| Mount Type | Through Hole |
| Series | CIPOS |
| Configuration | 3 Phase |
| Output Current | 15A |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Collector Emitter Voltage Vceo | 2.8V |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 450V |
| Minimum Supply Voltage | 0mV |
| Supply Current | 900μA |
| Maximum IGBT Collector Current | 24A |
| Typical Switching Frequency | 20kHz |
| Inverter Power Rating | 1200W |
Key Features
- Designed for 3-phase AC motor applications with permanent magnet technology.
- Maximum IGBT collector current of 24A supports robust power output.
- Operates with an output current up to 15A for efficient motor driving.
- Equipped with 24 pins in a DIP package for through-hole mounting.
- Typical switching frequency of 20kHz ensures smooth motor operation.
- Wide operating temperature range from -40°C to 150°C suits industrial environments.
- Maximum supply voltage of 450V accommodates diverse motor systems.
- Complies with automotive standard AEC-Q101 for reliable automotive applications.
Product Description
The Infineon IKCM15H60GAXKMA2 is a highly integrated Motor Driver IC optimized for driving 3-phase AC motors with permanent magnet technology. Operating at a collector emitter voltage of 2.8V and delivering a maximum current of 24A, this 24-pin DIP package device excels in motor control applications requiring efficient power management and system ruggedness.
Designed for use in home appliances, fans, and pump applications, it provides a typical switching frequency of 20kHz that ensures smooth and precise motor operation. The device supports a wide voltage range from 0mV up to 450V and maintains operation over a broad temperature range from -40°C to 150°C, making it suitable for demanding industrial and automotive environments.
With its compact size - 36mm in length, 21mm in width, and 3.1mm in height - this Intelligent Power Module from the CIPOS family occupies minimal PCB space while delivering an inverter power rating of 1200W. It also complies with the automotive standard AEC-Q101, enhancing its suitability for automotive motor control applications. The low supply current of 900μA enhances efficiency by reducing standby power consumption.
This Infineon Motor Driver IC is manufactured in Korea, Republic Of, ensuring high quality and consistency. Its through-hole mount and DIP package type facilitate easy PCB assembly and integration into motor control circuits.
Key features include:. 3-phase AC motor driver for permanent magnet motors. Maximum IGBT collector current of 24A and output current of 15A. Typical switching frequency of 20kHz and inverter power rating of 1200W. Wide operating temperature range from -40°C to 150°C.
Automotive standard compliance AEC-Q101. Compact 24-pin DIP through-hole package. Low standby supply current of 900μA.
This motor driver IC is ideal for applications in industrial motor control, HVAC systems, home appliances, and automotive motor drives. Explore more Infineon motor control solutions and other Motor Driver ICs in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this motor driver IC is 15A.
The typical switching frequency of this model is 20kHz, which ensures smooth motor operation.
The maximum collector emitter voltage for this motor driver IC is 2.8V.
The inverter power rating of this model is 1200W.
This motor driver IC operates over a wide temperature range from -40°C to 150°C.
The IKCM15H60GAXKMA2 has 24 pins in a DIP package for through-hole mounting.
It is designed for driving 3-phase AC motors with permanent magnet technology.
The supply current is 900μA, which helps reduce standby power consumption.
This motor driver IC complies with the automotive standard AEC-Q101.
The dimensions are 36mm in length, 21mm in width, and 3.1mm in height.
The maximum supply voltage for this model is 450V, accommodating diverse motor systems.
This model features a through-hole mounting type, suitable for easy PCB assembly.
